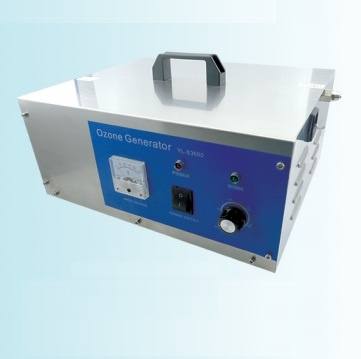

Ozone Generator For Factory Appliance S7000
Feature:
1. Ozone generator is a compact machine. Combine both Ozone High-Voltage corona discharge compartment and PCB controller into the body of the machine.
2. Outer electrical pole is made of stainless steel, and take Anti-puncturing crystal as medium. The discharge compartment is wholly sealed, the machine is safe to operate.
3. PSU(Power Supply Unit) is the core technique of the machine, including frequency conversion and boost converter. It applies soft start that can make high load capacity and multi-protection, highly efficient and stable.
4. This product should work with a clean air intake.
5. Discharge compartment is cooled by wind cooling system. It will make electric discharge sound and ozone output stable without damaging components.
Operation:
Prepare:
1. This product should work in a dry and ventilated room. If it must work outside, please shield it from direct sunshine and rain.
2. For air purification, it can work with a silicon pose linked and the other side LED to the place in need of sterilization. For water purification, it can work with a silicon linked and the other side put into water with a air stone.
3. Please make sure the silicon pose is in good condition for proper function.
4. Please confirm the arrow on the one-way valve and link the silicon with right direction.
How to Use:
1. Plug into 220V socket with earth wire and voltage meter directing to AC220V.
2. Press the power switch, the red indicates is turned on; Adjust the timer to your desired time, from 1min to 60mins. The machine works.
3. Open the switch and working indicator on(green light), pump working. Twisting the knob and fix the time for ozone output.
4. You can fan at ozone output then smell the ozone (Do not smell ozone with your nose directly from the ozone outlet).
Application:
Home, school, hospital, warehouse, hotel, kindergarden, office, farm, food factory, cosmetics, edible mushroom, auto beauty, changingroom, packing plant, drinking water, purified water, mineral water, water for food processing, swimming pool, polluted water treatment
It will meet your request for almost all air and water sterilization.
Care and Maintenance
1. Please keep the surface of machine clean at regular period.
2. Please change the silicon pose when it is broken...
Note:
1. When for air purification, it is advised that people should avoid the sterilization area in case of respiratory system stimulation because of high density of ozone.
2. For water purification, please instal with anti-reflux device in case of damaging machine. (It is advised to instal antioxidant normally closed valve at the pipeline and it`s power sychronise with ozone power.
3. This product`s voltage is 220V/50Hz and there is a high voltage inside. Please make sure there is a earth wire and avoid electric shock.
4. Do not smell ozone directly in case of respiratory system stimulation. Nor do the pregnant and children.
5. Please cut the power when not use for a long time.
Package Information:
Individual packing size: 455*265*215mm / PCS (G. W: 3G)
Carton Size: 56cm(W) x 42cm(H) x42cm(D)
QTY per Carton: 1PCS/CTN
GW/NW of Carton: 3 /2.7kgs
| Model | YL-S7000 | Input Power | AC220V |
| Rating Voltage | 3.0~3.5KV | Working Frequency | 50Hz |
| Rating Power Consumption | 90W | Ozone output | 7g/h |
| Ozone Density | 16-20mg/L | Effective Area | ≤ 800m3 |
| Material | Stainless steel | Dimension | 460 x 350x 280mm |
