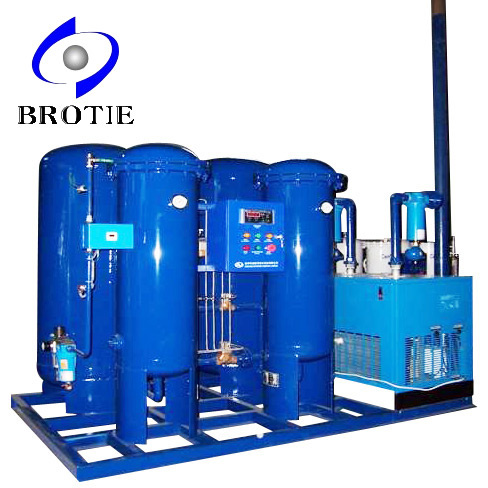

BROTIE Oxygen Generator
BROTIE Standard BRIO/BRHO- Series Oxygen Generators can produce from 1 to 200 cubic meters of oxygen per hour! Once you provide electricity and a source of compressed air, the BROTIE oxygen generator will provide oxygen for any application.
BROTIE oxygen generators are designed to produce between 4bar to 200bar output pressure, 93% and 99.6% nominal purity oxygen, -100° F(-73° C) dewpoint and are available in 120 VAC or 220 VAC.
Oxygen where you need it, when you need it and for as long as you need it! Since BROTIE oxygen generator is entirely automatic, imagine no more worries about downtime from late deliveries, weather-related influences or unexpected empties.
Applications:
1. After the N2 and O2 Separation Device, there is a O2 purification system to guarantee then quality of the O2 and removing dust, eliminating bacteria and stabilizing pressure to ensure the oxygen outputted stably and meeting medical standards.
2. Users only need to turn the start/stop button to gain the oxygen with designing required flow capacity and purity within 30 minutes.
3. Single line and double lines types are available for option. Users are suggested to choose the single line type when they only require a stable flow capacity; Choose double lines when demand is unstable and sometimes meet extra peak values.
4. Qualified oxygen has been filled into cylinders, which is easy for transporting and convenient supplier to each patient room.
All the models can be customized, for more information, please do not hesitate to contact.
Oxygen purification system equipped, with Odor Removal Filter and Bacteria Removal Filter, the high quality of the medical oxygen guranteed.

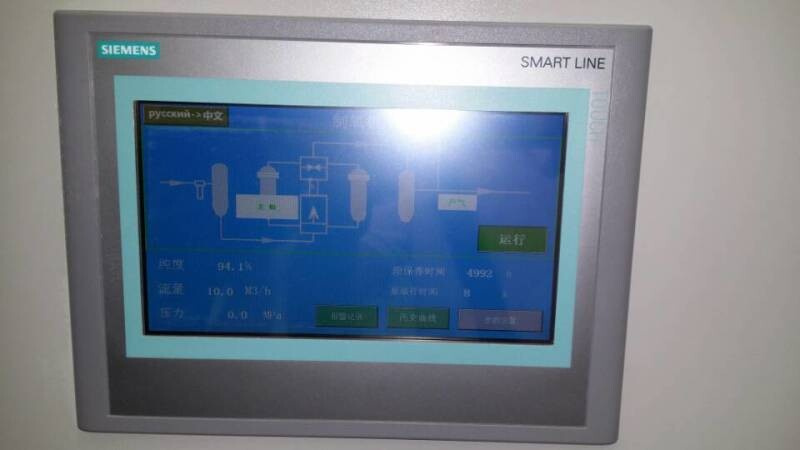

Optional BROBUS control system, with SMC online digital flow meter and a Danfoss pressure sensor and a Delta touch-screen, the control can be made by one touch. And the purity, pressure, capacity alarms system is automaticlly equipped. More stable and more convinient for customers.
Two years spare parts have been provided with the generators.
All goods will be commissioned before delivery, international service can be provided.
All the models can be customized, for more information, please do not hesitate to contact.
|
Model |
Construction |
Dimensions |
Inlet& Outlet |
Weight(Kg) |
|
BRHO-1 |
Four towers |
620*505*1260 |
G1/4; G1/4 |
226 |
|
BRHO-2 |
Four towers |
1000*900*1500 |
DN15; G1/2" |
418 |
|
BRHO-3 |
Four towers |
1000*950*1580 |
DN15; G1/2" |
515 |
|
BRHO-4 |
Four towers |
1200*1100*1800 |
DN15; G1/2" |
622 |
|
Two towers |
1050*600*1700 |
DN15; G1/2" |
433 |
|
BRHO-5 |
Four towers |
1300*1200*1750 |
DN25; G1/2" |
694 |
|
Two towers |
1100*600*1620 |
DN25; G1/2" |
459 |
|
BRHO-6 |
Four towers |
1300*1200*1850 |
DN25; G1/2" |
749 |
|
Two towers |
1100*600*1850 |
DN25; G1/2" |
502 |
|
BRHO-7 |
Four towers |
1400*1300*1800 |
DN25; G1/2" |
853 |
|
Two towers |
1200*650*1650 |
DN25; G1/2" |
586 |
|
BRHO-8 |
Four towers |
1400*1300*1850 |
DN25; G1/2" |
937 |
|
Two towers |
1200*650*1820 |
DN25; G1/2" |
640 |
|
BRHO-10 |
Four towers |
1500*1400*1850 |
DN25; G1/2" |
1076 |
|
Two towers |
1300*700*1750 |
DN25; G1/2" |
758 |
|
BRHO-15 |
Four towers |
1700*1550*2120 |
DN40; G1" |
1352 |
|
Two towers |
1400*750*2120 |
DN40; G1" |
923 |
|
BRHO-18 |
Four towers |
1800*1650*2060 |
DN40; G1" |
1531 |
|
Two towers |
1550*800*2060 |
DN40; G1" |
1062 |
|
BRHO-20 |
Four towers |
1800*1650*2250 |
DN40; G1" |
1618 |
|
Two towers |
1550*800*2250 |
DN40; G1" |
1130 |
|
BRHO-25 |
Four towers |
1800*1650*2700 |
DN50; G1" |
1899 |
|
Two towers |
1550*800*2700 |
DN50; G1" |
1327 |
|
BRHO-30 |
Four towers |
1900*1750*2700 |
DN50; G1" |
2166 |
|
Two towers |
1650*850*2700 |
DN50; G1" |
1524 |
|
BRHO-35 |
Four towers |
2100*1900*2600 |
DN50; G1" |
2424 |
|
Two towers |
1750*900*2600 |
DN50; G1" |
1686 |
|
BRHO-40 |
Four towers |
2100*1900*2900 |
DN50; G1" |
2633 |
|
Two towers |
1750*900*2900 |
DN50; G1" |
1847 |
|
BRHO-45 |
Four towers |
2200*2000*2850 |
DN65; G1" |
2831 |
|
Two towers |
1850*950*2850 |
DN65; G1" |
2167 |
|
BRHO-50 |
Four towers |
2100*1950*3100 |
DN65; G1" |
3179 |
|
Two towers |
1850*950*3100 |
DN65; G1" |
2325 |
|
BRHO-55 |
Four towers |
2300*2100*3000 |
DN65; G1" |
3328 |
|
Two towers |
1900*1050*3000 |
DN65; G1" |
2411 |
|
BRHO-60 |
Four towers |
2300*2100*3210 |
DN65; G1" |
3599 |
|
Two towers |
1900*1050*3210 |
DN65; G1" |
2615 |
