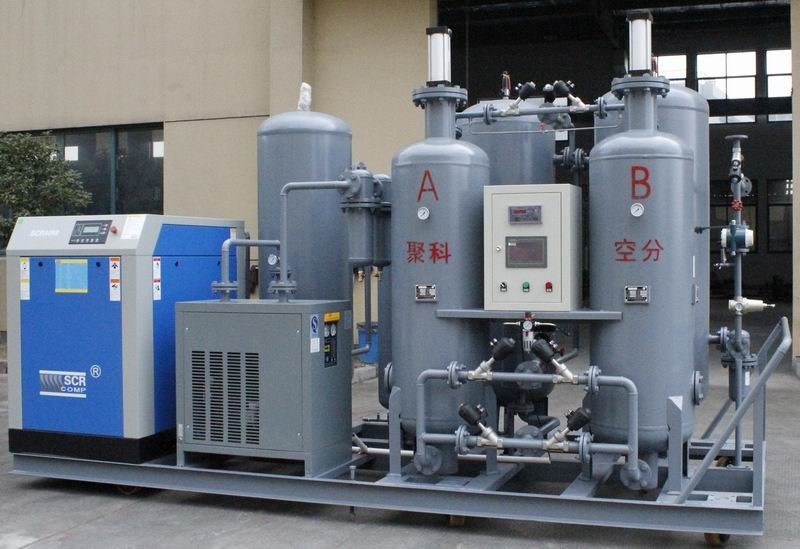

LKSO PSA oxygen generator
Principle of operation
LKSO PSA oxygen generator chooses high quality zeolites molecular sieve as adsorbent, and make use of variable pressure swing adsorption principle, then get the oxygen from compressed air directly.
L1. Compressed air via air purification system to remove impurities like oil, solid dust and so on, then enter into adsorption tower equipped zeolite molecular sieve. As zeolite molecular sieve has the characteristic of selective adsorption, nitrogen and carbon dioxide, steam is adsorbed by molecular sieve, while oxygen has a high spread rate, thus the oxygen go through adsorbent and gets separated.
L2. When the impurities like nitrogen adsorbed in adsorption tower arrives at a certain extent, reducing pressure to make zeolite molecular sieve desorb, then the adsorbent will regenerate, so the adsorbent can get cycle use.
LTechnical characteristics
L1. Unique molecular sieve protective measures so as to lengthen the service life of carbon molecular sieve.
L2. Self-reliance type cylinder pressure device can avoid high-speed airflow rushed out, it can not cause of molecular sieve pulverization phenomenon. Equipped with the limit settlement alarm system, when it reach the floor level of journey, the equipment will sound and light alarm by itself.
L3. Configureed DCS remote control system interface, it can monitor the system operatie condition through the computer.
L4. Intelligent interlocking nitrogen vent device can guarantee the quality of nitrogen.
L5. Perfect process design and excellent energy conservation characteristics reduce the cost of gas.
L6. Reasonable structure design make the transportation, sling and installation very convenient.
L7. Selecting the safe and reliable control components, so the equipment can run stable and reliable, it also has various fault alarm.
L8. It operates easily, Runs Stably, , and has a high degree of automation, can realize no one operates.
L9. Choose aluminum alloy material, module assembly, it can according to the user actually covering area to layout, only need an area of small.
|
Model |
O2 Output |
Effective gas consumption |
Air purification system |
|
(Nm3/h) |
(Nm3/min) |
|
KSO—5 |
5 |
1 |
KJ—1 |
|
KSO—10 |
10 |
2.2 |
KJ—2 |
|
KSO—20 |
20 |
4.3 |
KJ—6 |
|
KSO—40 |
40 |
8.5 |
KJ—10 |
|
KSO—60 |
60 |
12.5 |
KJ—12 |
|
KSO—80 |
80 |
16.5 |
KJ—20 |
|
KSO—100 |
100 |
21 |
KJ—20 |
|
KSO—150 |
150 |
31 |
KJ—30 |
|
KSO—200 |
200 |
42 |
KJ—40 |
