PSA Oxygen Generator
The PSA Oxygen Generator is based on PSA (Pressure Swing Adsorption) Technology, which uses some specific molecular sieves (ZMS) to separate the oxygen gas from the air. It is more and more popular used for on-site oxygen supply and filling oxygen cylinders.

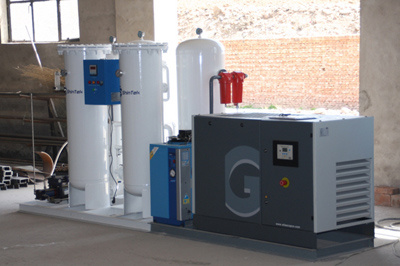

Our PSA Oxygen Generator with cylinder filling system consists of air compressor, air dryer, air filters, PSA oxygen generator, oxygen booster, cylinder filling station and related control system. The patented vessel design enable our PSA Oxygen Generator a lowest energy consumption and best efficiency.
PSA Oxygen Generator specifications:
1. Oxygen capacity: 3~200Nm3/h (12cylinders/day to 800 cylinders/day)
2. Oxygen purity: 93+/-3%
3. Oxygen pressure from the PSA Oxygen Generator: 1-5bar
4. Pressure for filling oxygen cylinders: 150bar (after oxygen booster)
5. The PSA Oxygen Generator can be used for filling oxygen cylinders or onsite application;
6. Skid-mounted enable an easy installation and transportation.
Standard PSA Oxygen Generator:
| Model | Prod capacity (Nm3/h) | O2 purity (%) | Outlet pressure (bar) | Compressed air Min. (m3/min) | Working pressure (bar) | Power consumption (KW) |
| STPO-4 | 4 | 93+/-3% | 1-5 | 0.86 | 5.5-7.5 | 5.43 |
| STPO-5 | 5 | 93+/-3% | 1-5 | 1.17 | 5.5-7.5 | 7.60 |
| STPO-8 | 8 | 93+/-3% | 1-5 | 1.87 | 5.5-7.5 | 11.75 |
| STPO-10 | 10 | 93+/-3% | 1-5 | 2.33 | 5.5-7.5 | 15.75 |
| STPO-15 | 15 | 93+/-3% | 1-5 | 3.25 | 5.5-7.5 | 19.05 |
| STPO-20 | 20 | 93+/-3% | 1-5 | 4.30 | 5.5-7.5 | 31.59 |
| STPO-25 | 25 | 93+/-3% | 1-5 | 5.80 | 5.5-7.5 | 31.59 |
| STPO-30 | 30 | 93+/-3% | 1-5 | 7.00 | 5.5-7.5 | 39.04 |
| STPO-35 | 35 | 93+/-3% | 1-5 | 7.58 | 5.5-7.5 | 47.00 |
| STPO-40 | 40 | 93+/-3% | 1-5 | 9.30 | 5.5-7.5 | 57.70 |
| STPO-45 | 45 | 93+/-3% | 1-5 | 10.5 | 5.5-7.5 | 57.70 |
| STPO-50 | 50 | 93+/-3% | 1-5 | 10.6 | 5.5-7.5 | 57.70 |
| STPO-60 | 60 | 93+/-3% | 1-5 | 14.0 | 5.5-7.5 | 77.70 |
| STPO-65 | 65 | 93+/-3% | 1-5 | 15.2 | 5.5-7.5 | 92.70 |
| STPO-70 | 70 | 93+/-3% | 1-5 | 16.2 | 5.5-7.5 | 92.70 |
| STPO-80 | 80 | 93+/-3% | 1-5 | 18.7 | 5.5-7.5 | 114.5 |
| STPO-90 | 90 | 93+/-3% | 1-5 | 20.0 | 5.5-7.5 | 114.5 |
| STPO-100 | 100 | 93+/-3% | 1-5 | 23.3 | 5.5-7.5 | 137.0 |
| STPO-160 | 160 | 93+/-3% | 1-5 | 37.4 | 5.5-7.5 | 229.0 |
| STPO-200 | 200 | 93+/-3% | 1-5 | 46.7 | 5.5-7.5 | 274.0 |
Remark: Above standard model PSA Oxygen Generator is based on an altitude of <1000meters.
Features of our PSA Oxygen Generator:
(1) The PSA Oxygen Generator is equipped with a stable Atlas Copco screw air compressor;
(2) The PSA Oxygen Generator is equipped with Siemens PLC and SMC or CKD valves;
(3) Fewer moving parts enable the PSA Oxygen Generator more reliable and less maintenance jobs;
(4) The PSA Oxygen Generator does not need foundation base;
(5) The PSA Oxygen Generator does not need cooling water;
(6) The PSA Oxygen Generator is skid-mounted, very easy to be transported and installed;
(7) The PSA Oxygen Generator is very easy to be operated, unmanned operation can be realized;
(8) The PSA Oxygen Generator is energy efficient (1.2 -1.4 KWH/m3 oxygen), save energy;
(9) The PSA Oxygen Generator can be used for both onsite application and filling oxygen cylinders.
(10) Consumable parts: only filter elements, replaced every 6000-8000hours. Maintenance cost is very low.
