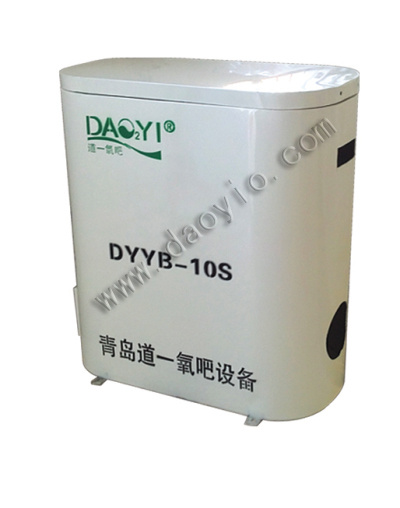

Number from our catalog: DYYB-10S oxygen flow rate: 20L/min
Oxygen purity: ≥ 75% oxygen pressure: 0.07Mpa
Noise: ≤ 20dB Power: 500W
Power supply: 220V AC 50Hz Dimensions: 600 × 650 × 300mm
Weight: 34Kg
Oxygen generators to directly separate oxygen and nitrogen in the air by PSA action of molecule sieve to produce oxygen with high purity. The unit can continuously supply oxygen. Principle of PSA(pressure swing adsorption): When pressurizing, the molecule sieve adsorbs nitrogen(nitrogen molecule is adsorbed in pore of molecule sieve), but oxygen molecule is few adsorbed, majority of which passes by the particle surface of molecule sieve; Under normal pressure, desorbs (discharge nitrogen from molecule sieve pore)simultaneously recoils it to the air with partial of oxygen.
Move in cycles, achieving the purpose of unceasingly separating oxygen from air. In order to continuously separate oxygen, two adsorption tin are commonly used, one is for pressurizing, adsorbing, and generating oxygen; The other is for relieving pressure, desorbing, and discharging nitrogen. Such cycle operation, unceasingly separate oxygen more than 90%'s oxygen content.
QINGDAO DAOYI Oxygen equipment Co., Ltd is located in Qingdao road laixi city Dragon accounts road, an area of 1000 square meters, was established in 2008, is a company specializing in creating large leisure business oxygen bar oxygen bars, music, oxygen-rich foot, big, MID-size recreational private clubs of the professional company. Qingdao road, oxygen bar equipment to lead the trend of oxygen bar, create health air environment responsibility, wider range of talent to develop. Company based on research and development, production, sales, business, household, medical oxygen bar equipment. Products by the State Bureau of quality and technical supervision and detection of drug administrations, the technical indicators are in line with national standards, product technology, structure ahead of the domestic products of the same kind. Qingdao road, oxygen bar equipment, Ltd receives "green, healthy, hard work, integrity, cooperation, win-win" business philosophy, the company's staff to "make your life healthier is the value of our existence" datum points for the service, the company's products in advantage, lead the trend of oxygen, creating environmental health air environment, green and healthy to society at large. Now has nine provincial distributors and five branches.
