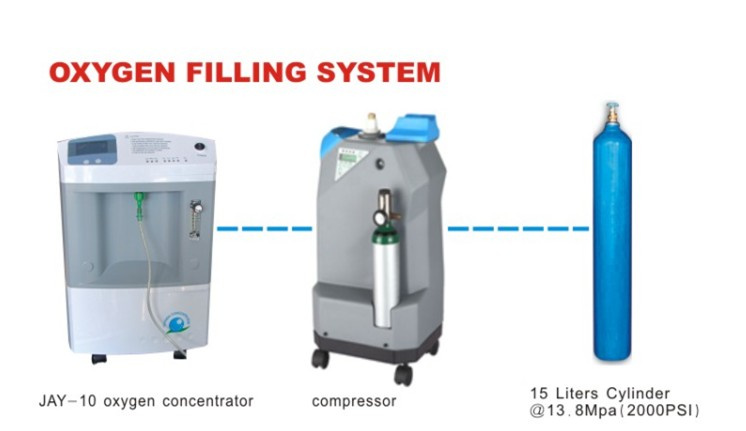

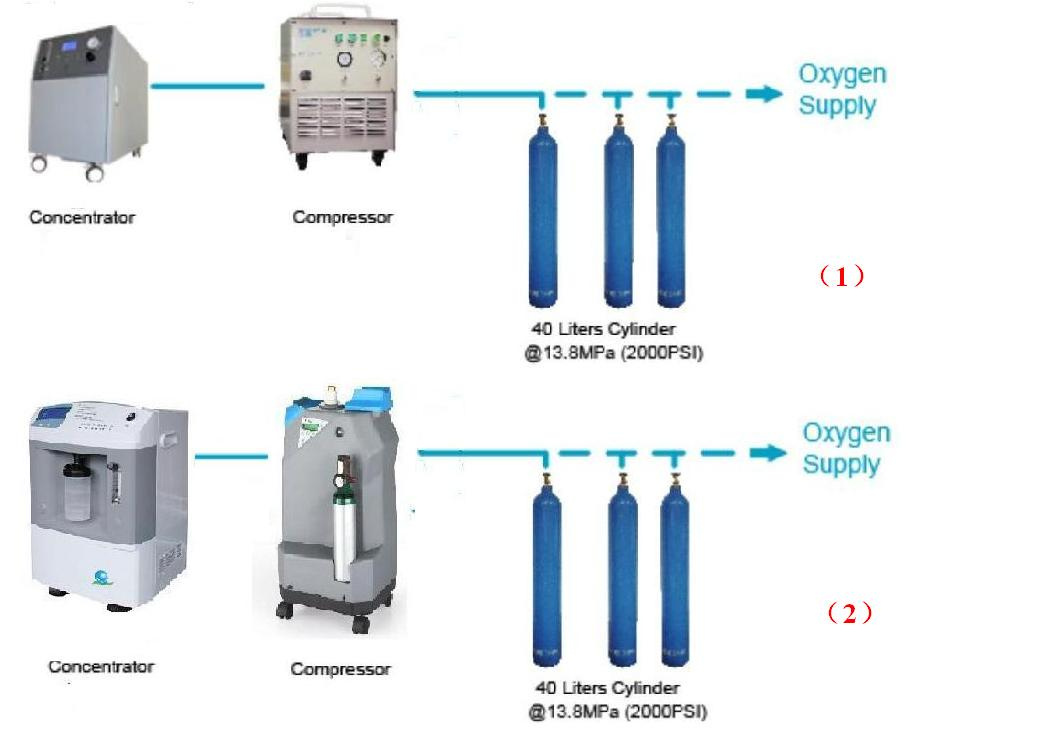

For portable oxygen fill system, it includes oxygen concentrator, compressor, and cylinder
Oxygen concentrator(JAY-10)
1. FEATURES:
PSA(Pressure Swing Adsorption) technology
Adjustable flowrate
Nebulizer device can be fitted if necessary
Dehumidity Function
Timing: Record the accumulated working hours of compressor
2. SPECIFICATION:
Oxygen flow(L/min): 0-10
Purity (%): 93%± 3%
Outlet pressure(Mpa): 0.04-0.07
Sound level dB(A): ≤ 43
Power: AC220± 10%50/60± 1Hz AC110± 10% 50/60± 1Hz (different country or area has different require)
Power consumption: ≤ 450
Timer
Alarm: Power failure alarm, High & Low pressure alarm, high temperature alarm
Net weight (kg): 29
Electric classification: Class II Grade B
Size(mm): 365× 375× 600

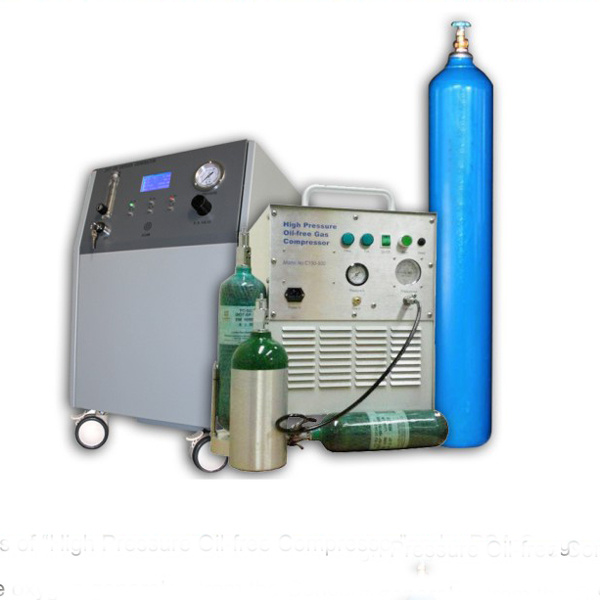

High pressure compressor
Specification:
Working temperature: ...5 to 35
Working humidity range: ...15 to 95% RH (condensation)
Working altitude: ...0 to 2000 m
Storage temperature range: ...To 40 to + 70
Store humidity range: ...Between 10% and 95% RH (condensation)
Working voltage range: ...220 + / - 10% V ~ 50 Hz
Power range: ...An average of 450 W, 550 W
Insulation class: ...I class B
Input flow/pressure: 3 ~ 10 LPM @ 40 ~ 100 kpa
Bottle filling pressure: ...0 psi ~ 2000 + / - 200 psi
Size: (including castor)...Long 355 mm wide, 310 mm to 730 mm high
Weight: ...About 27 kg
Filling medium: ...Oxygen, dry air, carbon dioxide and nitrogen
Filling time
Portable cylinder filling psi from 0 to 2000 + / - 200 psi: M6 (water volume is about 1.2 L)...35 minutes
Cylinder capacity
1.0L 1.7L 40L
