Oxygen Concentrator JAY serie
Features:
1. PSA(Pressure Swing Adsorption)Technology.
2. Adjustable flow rate: 0-5L/min, oxygen concentration 90~96%.
3. Large LCD display for switch times, operating pressure, preset working time, accumulated working time. Presetting time from 10mins to 40hours.
4. Operation time presetting, automatically stop when the preset time finish.
5. Components like molecular sieve, humidifier imported from USA.
6. Oxygen purity monitoring function available.
7. Automatic alarm system: Power failture alarm; High&low pressure alarm; Low purity alarm.
8. Technical parameters comply with international medical oxygen concentrator standard.

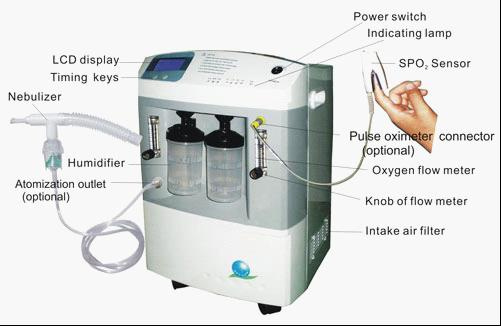

Indicating Lamp;
O. P.: Power switch(Green light)
P. F.: Power failture(Red light)
H. P.: High pressure(Red light)
L. P.: Low pressure(Yellow light)
H. T.: High temperature(Red light)
H. O2: Oxygen purity is above 82%(Green light)
L. O2: Oxygen purity is less than 82%(Red light)
Specifications:
Item
JAY-5L Single Flow
Oxygen Flow
0-5L/min
Oxygen Concentration
90-96%
Oxygen Pressure (Mpa)
0.04-0.07
Noise Level
≤ 50dB
Power
AC220V± 10%, 50/60± 1Hz; AC110V± 10%, 50/60± 1Hz
Power Consumption
≤ 480W
Timing System
Accumulated Time, Present Working Time, Presetting Time(10mins ~40H)
Alarming System
High&Low pressure alarm, Power failure alarm
Net Weight
25Kgs
Packing Size (mm)
365× 375× 600mm
Optional Functions
*Nebulizer
*Maintenance alarm: Alarm actions after 3000 hours operation
*High temperature alarm: Alarming when system temperature is above 50degree
*Low concentration alarm: Oxygen concentration >82%, green light; Concentration
<82% red light.
*Pulse oximeter: Monitoring users' oxygen saturation.
*LCD display.
