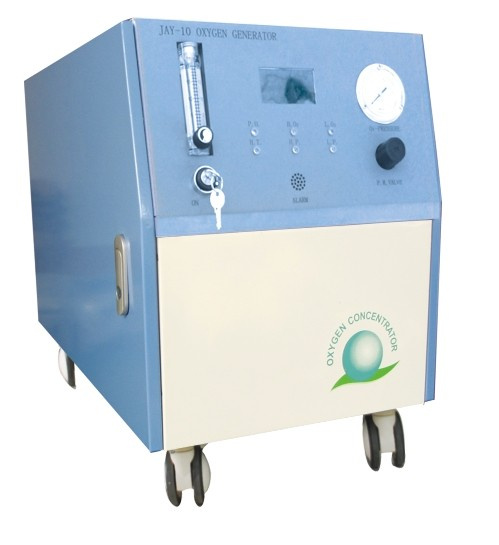

15 LPM OXYGEN CONCENTRATOR
As our research and development ability improve, our company has developed more types of oxygen machines to meet market demands. The JAY-15 0-15L/min oxygen concentrator we produce is suitable for being applied into industrial and medical field. With quality conforming to the standard of ISO, this product is widely accepted by customers.
Considering this is high-power oxygen equipment and may need to keep working continuously for a long period of time, we optimize the machine structure and improve heat dissipation performance to guarantee its stable oxygen concentration. With iron housing, this oxygen concentrator is free from damage.
It is a cost-efficient product you deserve to have. We have the ordinary pressure type oxygen generator with outlet pressure of 0.04-0.07Mpa and the high pressure type ones with outlet pressure of 0.14-0.4Mpa for your selection.
Features
1. PSA physical oxygen separating method, this oxygen concentration machine is safe and economical.
2. Oxygen flow can be adjusted from 0 to 15L/min. Oxygen concentration can be 90% or above.
3. Our oxygen concentrator is equipped with a large digital LCD display which can indicate the operating pressure, internal working temperature, present operating time, accumulated working time and the preset time.
4. The oxygen producing machine will automatically stop working when it reaches the preset time.
5. OCSI system ensures safe oxygen therapy.
· Oxygen Outlet Pressure (0.04-0.07Mpa)
· Oxygen Outlet Pressure (0.14-0.4Mpa)
Oxygen Outlet Pressure (0.04-0.07Mpa)
Detailed Information of JAY-15 Oxygen Concentrator with Ordinary Outlet Pressure (0.04-0.07Mpa)
Application
1. Medical use
2. Oxygen cylinder filling system
3. Industrial use such as welding, glass cutting, etc
4. Fish farming
5. Veterinary use
Technical Parameters
| Model | JAY-15 |
| Oxygen flow (L/min) | 0-15 |
| Oxygen concentration | 93% (± 3%) |
| Outlet pressure (Mpa) | 0.04-0.07 |
| Rated power (VA) | 1500W |
| Operatiing voltage (V/Hz) | AC230V, 50Hz;
Optional: AC220V/110V (±10%), 50/60Hz (±1Hz) |
| Alarm | Power failure; low/high pressure; temperature (optional); low concentration (optional); maintenance reminding after 3000 hours' operation (optional) |
| LCD display | Accumulated time; present time |
| Large LCD display (optional) | Pressure indication (accuracy: 0.001MPa);
Accumulated working time (range: 0-10000hours);
Present working time (accuracy:1 minute);
Preset time (accuracy: 1 minute)
Optional: temperature indication (accuracy: 0.1)
Maintenance reminding |
| Electrical safety classification | Class II Type B |
| Product category | Class II a |
Oxygen Outlet Pressure (0.14-0.4Mpa)
Detailed Information of JAY-15 Oxygen Concentrator with High Outlet Pressure (0.14-0.4Mpa)
Application
1. Central oxygen supply system of small hospital. One set of oxygen concentration machine is able to supply oxygen for 5-7 patents.
2. Connecting to ventilator or anesthesia machine in operating theater and ICU
3. Industrial use such as welding, glass cutting, etc
4. Fish farming
5. Veterinary use
Technical Parameters
| Model | JAY-15 |
| Oxygen flow | 0-15L/min |
| Outlet pressure (Mpa) | 0.14-0.4 |
| Oxygen concentration | 93%±3% |
| Noise level (dB) | ≤60 |
| Power | AC220V (± 22V), 50Hz (±1Hz); AC230V, 50Hz
Optional: AC220V/110V (±10%), 50/60Hz (±1Hz) |
| Power consumption | 1500/1550 |
| LCD display | Starting times, operating pressure, present working time, accumulated working time, preset time from 10mins to 40hours |
| Alarm | Power failure alarm; high/low pressure alarm |
| Dehumidifier | Automatic dehumidifier/Refrigerated air dryer |
| Net weight (kg) | 85/118 |
| Size (mm) | 920×360×660860×580×660 |
