Home Generator Products Outlet AC Alternator in Stock Fd2b

Outlet AC Alternator in Stock Fd2b

Outlet AC Alternator in Stock Fd2b
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union

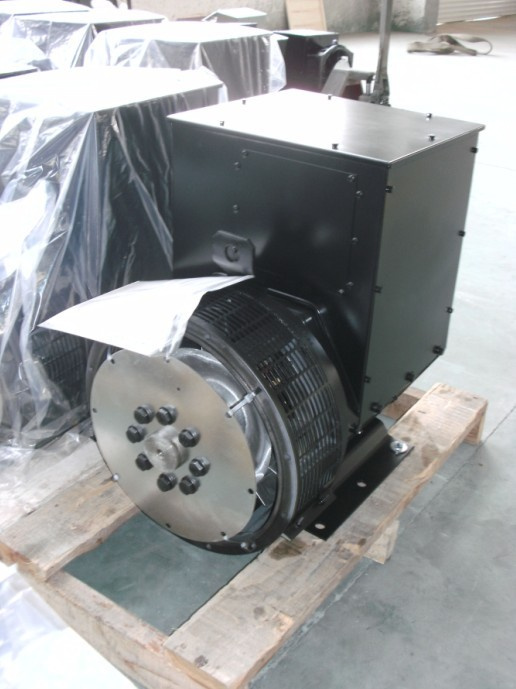

Outlet AC Alternator 50kVA (40KW)
Faraday Brushless AC Generator, IP23 H Class Alternator (ISO/CE Approved)

Specification:
Model series: FD2 series Brushless synchronous AC alternator;
Range of power: From 34kw to 70kw, 190-690V;
Frequency: 50Hz 60Hz Low Frequency;
Phase: Three Phase.
Certificate: Has passed CE, ISO9001: 2008
Export Markets: Global
Insulation class: H.

Warranty period:
Within 24 months from alternator's delivery or 18 months after the date first used, whichever comes first.

Accordant Standard:
GB755 National Standard for Rotating Electrical Machine
IEC60034 (International Electrotechnical Commission)
BS5000, VDE0530, CSAC22.2-100 International Standard

Application Area:
Faraday alternators fit all different brands of engines, are extensively used as prime or standby power in various applications, such as
General industry, Mining, Military, Oil-field, Construction, Telecommunication, Hospital, Engineering Machinery, Building construction, CHP, Marine and other harsh environment applications etc.

Additional Info.
Trademark: FARADAY
Packing: Plywood Case
Standard: 3 phase, 1500/1800rpm, 190-690V.
Origin: Wuxi, Jiangsu, P. R China
HS Code: 85016100, 85016200
Factory Total Production Capacity: 30000sets/Year

Raw material:
1. Copper wire has passed UL certified class 200.
2. PMG and VPI are optional.
3. Insulation paper is Tyvek (Dupont paper)
4. Epoxy Resin from ALTANA in Germany.
5. Low iron-loss silicon steel is BS470 from Shanghai BAOSTEEL GROUP

Product Description
Brushless synchronous AC alternator, the range of power is from 34kw to 70kw, 3 phase, 4 pole, 1500rpm/1800rpm, 190-690V, it includes FD2A, FD2B, FD2C, FD2CL, FD2DS, FD2D.

Standard Feature of Product:
1: Comply with the most common standard in terms of GB755, IEC60034, BS5000, VDE0530, CSAC22.2-100
2: Single or double bearings are available, options for all kinds of adaptors and disc plates
3: 12-end reconnectable winding terminals to get different voltages
4: Standard "H" insulation class
5: Convenient installation and maintenance for lead-end rotated diodes and adaptor connected bolts
6: Standard sealed maintenance-free bearings
7: Standard IP23 protection, optional severe environment protection
8: Optional auxiliary winding in excitation system

Note:
*The generators have been designed for use in a maximum ambient temperature of 40degree and
Altitude less than 1000m above sea level
*All generators are 4-pole ones
*Extended range voltage can be got from single windings or from 12-leads adjusted

Electric Features:
1. Voltage accuracy is ± 1% in static condition with any power factor, with optional PMG and MX321 AVR, voltage accuracy will be ± 0.5%.
2.2/3 pitch winding effectively eliminate harmonic waves, best for non-linear load
3. Faraday alternators can function in parallel among themselves.
4. Radio interference suppression

Options:
1. Winding RTD
2. Winding protection thermistor and relay
3. Anti-condensation heater
4, Air filter
5, Droop CT
Prod Model: FD2B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name: Faraday
Type: Alternators
Class Of Insulation: H
Protection Grade: IP23
Rated Voltage: 190-690V
Certificate: CE, ISO9001:2008
Current Type: AC
Phase: Single or Three Phase
Usage: Make Electrical
Frequency: 50/60Hz
With world-leading technology and advanced management experience in operation, Wuxi Faraday Alternators Ltd is cooperating with American Basler Electric Company in excited system, being professionally engaged in the production and sales of "FARADAY" alternators, power ranged from 6.5kw to 2000kw.

BUSINESS PRINCIPLE:Carving out with integrity to pursue employee satisfaction, customer satisfaction as well as society satisfaction for life

DEVELOPMENT STRATEGY:Guaranteeing quality with criterion, building brand by quality, developing with brand

MANAGEMENT STAFF:Our senior management staffs are all professional talents who have ever worked in multinational company for so many years in alternators' production and sales, with extensive experience of marketing and service, production, material supplied chain management and quality control system.

PRODUCT FEATURE:Cooperating with American Basler Electric Co., innovating under the world-leading technology combined with the feedback from actual practice:Overcoming the AVR shortage of the usual domestic alternator, reasonable design, compact overall dimension, light weight, class "H" of all stators and rotors' insulation, stable and reliable even during bad working condition, etc., with patent registered already.

CUSTOMER SUPPORT:We have an excellent service and industry solution team who have been engaged in alternator field for over ten years, we can assure customers that complaint or help will get swift response, within 24 hours to be on the spot in Jiangsu province and 48 hours in nationwide is available if necessary.

CORE COMPETENCE:Topping employee, advanced ideas, leading technology, reliable quality and timely service are our core competence.
