Compact size and high power density
High speed MPPT for real time power tracking and improved energy harvesting
Transformerless operation for highest efficiency: 97.6% (97% Euro)
High overload capability: Works up to 5000W under most ambient conditions
Certified grid connected operation according to the international standards
True Sine Wave Output
Integrated RS-485/RS-232 serial communication
Multi-language display
|
CHARACTERISTICS |

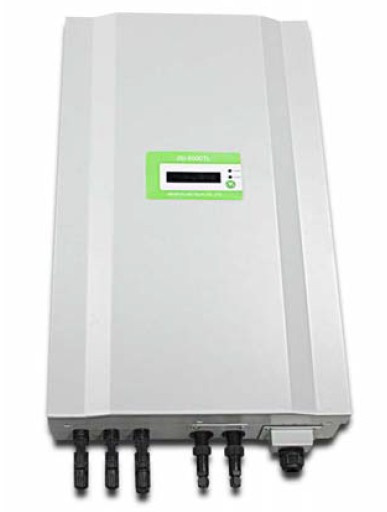

JSI-5000TL |
|
Input Data(DC side) |
|
Max. DC power |
5300W |
|
Max. DC voltage |
550Vdc |
|
MPPT Operating range |
100~500Vdc |
|
Number of parallel inputs |
3 |
|
Number of MPPT trackers |
1 |
|
Max. input current (total) |
25A |
|
Output Data(AC side) |
|
Nominal output power |
4600W |
|
Max. Output power |
5000W |
|
Nominal output current |
20A |
|
Max. output current |
23.8A |
|
Nominal AC voltage |
230Vac |
|
AC voltage range * |
190~265Vac |
|
Nominal AC grid frequency |
50Hz |
|
AC grid frequency range* |
50 ± 5 Hz |
|
Power factor(cos φ ) |
> 0.99 |
|
Harmonic distortion(THDI) |
< 3%(at nominal output power) |
|
Efficiency |
|
Max. efficiency |
97.6% |
|
Euro efficiency |
97% |
|
MPPT efficiency |
99.6% |
|
Genaral data |
|
Dimensions (W / D / H) |
345*162*573 mm |
|
Net weight |
26Kg |
|
Operating temperature range |
– 25 ° C ~ +60 ° C |
|
Noise emission (typical) |
≤ 25 dB(A) |
|
Power consumption at night |
0 W |
|
Electrical isolation |
Transformer-less |
|
Cooling concept |
Natural cooling |
|
IP Code |
IP65 |
|
Communication |
RS-485/RS-232 |
ShenzhenJingFuYuanTech. Co., Ltd (abbr. JFY-Tech) is located in Shenzhen, China. It iwas established in May, 2003. JFY-Tech is specialized in the on grid and off grid solar inverter and telecom power supply. Our company has already passed the ISO9001: 2000 quality system in 2004 and updated to ISO9001: 2008 in 2009. JFY-Tech always sticks to strict regulations and systems to ensure the high quality of our products and company's sustainable development.
Our company was awarded national high-tech enterprise in 2010. Up till now, JFY-Tech has invented and developed various on-grid and off-grid solar inverters with independent intellectual property rights, and won a number of patent certificates.
Our main on-grid solar inverters:
Single phase transformerless inverter with 1 MPPT: 1.5K, 2.0K, 3.0K, 3.6K, 4.6K, 6K
Single phase transformerless inverter with 2 MPPTs: 3.3K, 4.0K, 5.0K
Single phase HF isolated inverter with 1 MPPT: 3.3K, 4.0K, 5.0K
Three phase transformerless inverter with 2 MPPTs: 10K, 12K, 15K, 17K, 20K.
Our inverters have passed TUV and Intertek testing and obtained Enel Guida(DK5940), VDE0126-1-1, VDE-AR-N 4105, AS 4777, G83/1, G59/2, RD1663, CE and some other certificates.
JFY-tech is committed to providing customers with economic, secure and convenient-in-use solar inverters. We never stop improving the quality of our products, and providing perfect service and support, which includes but not limited to power system design support, remote and on-site instruction service, fastest after-sales service. In addition, we have already built after-sales office in Europe and Australia, and the offices in other countries will be founded later.
