Instrustaions:
Changzhou ETK Power Machinery Co., Ltd is an export manufactory, Our products involve diesel generator, gasoline engines, air-cooled diesel, diesel welder generator, water pumps, air compressors, pressure washers and other various machinery.

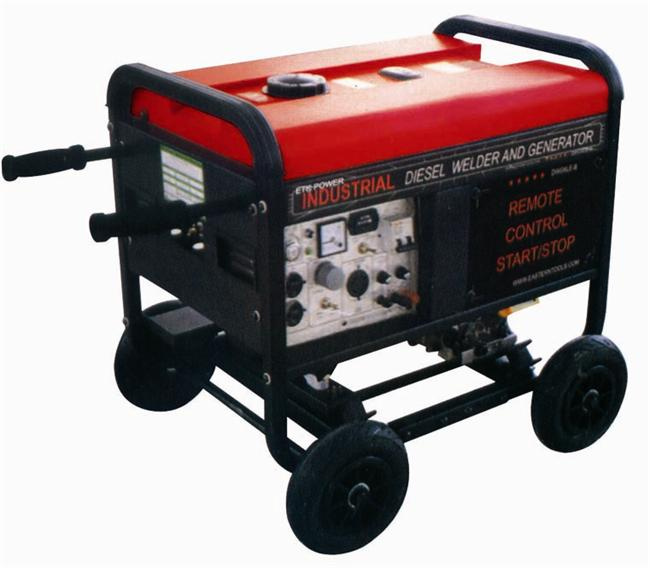

| Model | open type |
| DWG6LE -B |
| Frequency(Hz) | 50/60 |
| Voltage(AC)(V) | 120/240;220;230;240 |
| Rated Power(Kw) | 2.5(4.6) / 2.7(5.0) |
| Current(A) | 11 |
| Power facotr(cosφ) | 1 |
| Electric welding voltage in idle(V) | 55-65 |
| Rated current for electric welding(A) | 160-180 |
| Working voltage for electric welding(V) | 25-30 |
| Electric welding load lasting rate | 50% |
| Regulating rang of electric welding current(A) | 80-180 |
| Engine Speed(rpm) | 3000/3600 |
| Net weight(kg) | 116 |
| Starting system | Recoil manual start/optional electric start |
| Engine model | ETK186F(A)(E) |
| Type | Single cylinder,vertical,direct injection,5-stroke,air cooled diesel engine |
| Continuous Output(Kw) | 5.7/6.6 |
| Maximum Output(Kw) | 6.3/7.34 |
| Bore × Stroke(mm) | 86*70/86*72 |
| Displacement(cc) | 406/418 |
| Fuel Tank Capacity(L) | 15 |
| Packing dimensions(L×W×H)mm | 785*550*635 |
| Lube-oil Capacity(L) | 1.65 |
| 20FT container (pcs) | 99 |
Changzhou ETK Power Machinery Co., Ltd. Specializes in producing all kinds of diesel and gasoline generators, air compressor, water pump. Power trowel, plate compactor, floor saw, concrete mixer, concrete vibrator etc. Our products can be used in many areas, such as industry, agriculture and fishery. Our company has strong technological power, strict discipline of basic management, advanced technology and superior check methods. We have carried out the quality system certification ISO9001 during the whole process and have CE and EPA.
With seasoned and experienced professionals coupled with state-of-the-art technology and industry best practices, it is our vision to make our products that truly recognizes the needs of its clients, understands the clients and renders the best services in customer interaction. Our products are well sold in Philipine, India, Thailand, UAE, France, UK, Spain, Australia and so on. Our goal is to make our products in everywhere of the world.
Welcome to contact us
