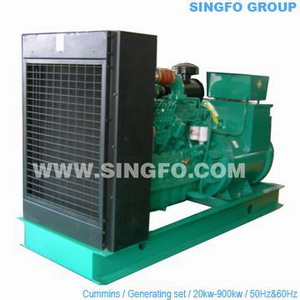

Model: SFC 30
Genset power: 30kw(37.5kva)
Dimension: 1810*750*1420 mm
Weight: 876kg
Engine model: 4BT3.9-G2
In-line, 4 Cylinder, 4 Cycle, Turbo Diesel Engine
Bore*Stroke 102mm*120mm
Displacement 3.9 Liters
Compression Ration 16.5: 1
Rated Speed 1500r/min (1800r/min)
Rated Power 36kW(45kW)
Standby Power 40kW(50kW)
Fuel Injection Pump BYC A injection pump
Governor Electrical Governor
Steady Speed Droop ≤1%
Lubricant Capacity 9 Liters
Coolant Capacity 8 Liters
Net Weight 321kg
Wet Weight 340kg
Overall Dimension(L*W*H) 765mm*582mm*908mm
Coolant Intake Size Φ58mm
Coolant Outlet Size Φ45mm
Flywheel/Flywheel Housing SAE3#/SAE3#
Cooling Way Positive Water Cooling Cycle
Technical Datasheet
Speed 1500r/min(50Hz) 1800r/min(60Hz)
Output Power Engine Output Engine Output
Standby Power 40kW 45kW
Prime Power 36kW 40kW
Test Condition
Standard Air Intake Temperature
Air Intake Pressure 100kPa
Standard Light Diesel 0# Light Diesel
Fuel Intake Temperature
Air Intake Restriction 254mmHg
Exhaust Back Pressure 76mmHg
Lubricant Oil 15W40-CF4 Upgrade
Alternator: Marathon, stamford (optional)
Control panel: Upwin 2210. T260 and deepsea 5110
