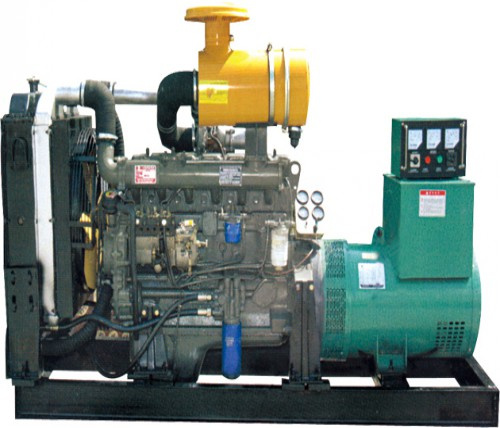

Product Name: Diesel Generator (110GF, 150GF)
Place of Origin: China
Quality/Safety Certifications: CE, ISO9001
Compact and reasonable
High reliable quality
Different Dimension
Differenct N. W.
Type of set | (400V 3450Hz COSΦ0.8)
Parameters of set(400V 3-phase 4-line 50Hz COSΦ0.8 ) | (1500RPM 24V)
Parameters of engine (1500 RPM 24V Electrical start) |
| | (KW/KVA)
Power of output
(KW/KVA) | A
Rated current A | (Kg)
Weight of set (Kg) | (mm)
Dimensions of set |
Type | (KW)
Power (KW |
Number & Type of cylinder | ×(mm)
Boke ×stroke(mm) |
Compression ratio |
(L)
Air
discharge
(L) |
(100%1/h)
Consumption of fuel (100%load 1/h) |
| |
Main |
Standby | | |
Length |
Width |
Height | | | | | | | |
| 50GF | 50/63 | 55/69 | 90 | 830 | 1750 | 750 | 1300 | 4BTA3.9-G2 | 60/65 | 4 | 102×120 | 16.5:1 | 3.9 | 12.6 |
| 75GF-1 | 75/94 | 82/103 | 135 | 1050 | 2150 | 850 | 1300 | 6BT5.9-G1 | 86/93 | 6 | 102×120 | 17.5:1 | 5.9 | 20.5 |
| 75GF-2 | 75/94 | 82/103 | 135 | 1050 | 2150 | 850 | 1300 | 6BT5.9-G2 | 86/93 | 6 | 102×120 | 17.5:1 | 5.9 | 20.5 |
| 110GF-1 | 110/138 | 120/150 | 198 | 1200 | 2250 | 820 | 1350 | 6BTA5.9-G2 | 120/130 | 6 | 102×120 | 17.0:1 | 5.9 | 24 |
| 110GF-2 | 110/138 | 120/150 | 198 | 1200 | 2250 | 850 | 1300 | 6BTAA5.9-G2 | 120/130 | 6 | 102×120 | 16.5:1 | 5.9 | 27.4 |
| 150GF | 150/188 | 165/207 | 270 | 1250 | 3250 | 1000 | 1800 | 6CTA8.3-G2 | 163/180 | 6 | 114×135 | 16.5:1 | 8.3 | 37.5 |
Huahe Heavy Industries Co., Ltd.lies in the land scape shore of east see of China----jinqing town luqiao dstrict taizhou city, it is a key base in producting electrical generator in China presently. The company was founded in 1990, managerial philosophy of company is that"take person with ability as basement, develop and try to be practical, quality first, service intensive"and the spirt of onterpriseis that"hold together and innovation, keep on aggressiveness, pursue superiority", it will make the company to explode constantly and is has passed ISO9001: 2000 quality system ceritfcation, CE.
Company has possessed 600 employess, over 68manag. Ement personnel and 22 technicians since is was founded. Inwhich junior college graduatre account for 90%, average ages of employees is 28 years, area of factory building is 20000sq. Meter annusi value of production is 80 milions yuan and have three modemization production line and advanced equipment and perfct monitor and measunng device as puncher, driller, lathe, measurig truck, cutter, shielded welder and pipe bendin machine. Main production of company are all kinds of generators, both petrol and dlesel series, water umps, luggage rack of vehicle, bumper, fuel tankall kinds of motorcycle rack, Auto Majhong Machine and WHD series of dlecmolishde vehide, wide varieties, a complete range of specification. The products have stable qusity and advanced.
Technology and sell well in Japan, America, Euripe, Southeast Asia etccountries and regions. President Mr. Shi HePing heads all staff members of company to welcome you warmly to visit and call for inquiry. Let us join hands to initiate right future together.
