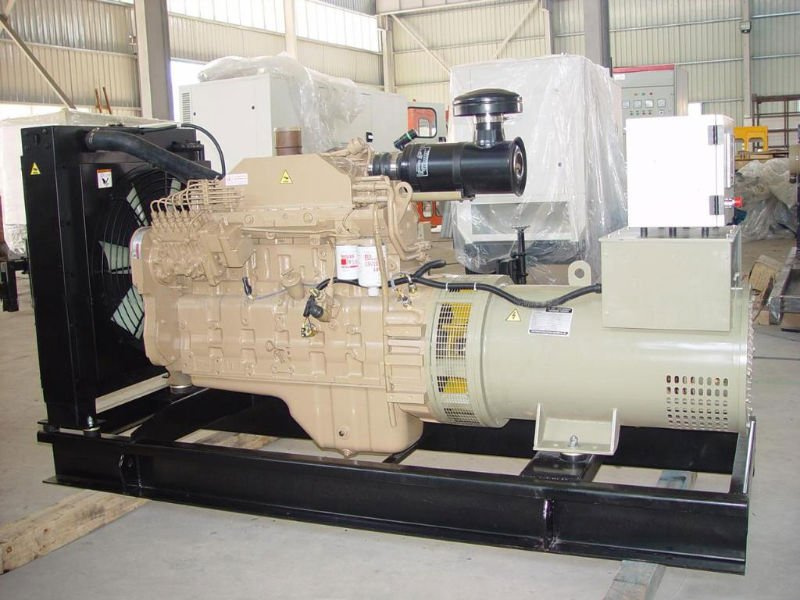

Cummins power generator open type
1 Output range: 20kw to 1000kw
2 Available Engine: Cummins
3 Alternator model:
A) Stamford\Leroy Somer\ENGGA\Branch Stamford and Branch Leroysomer
4 Small volume, light weight, low noise, low fuel consumption, water cooling with water tank and fan\air cooling
5 Key start / auto start
6 Monitoring meters and control switches
7 Protection provided for short, over-current, over-speed, high water temperature and low oil pressure
8 Soundproof / weatherproof canopy optional
9 Standard parts: Industrial type silencers, exhaust pipes, flexible exhaust bellows, vibration-damping rubber, lead-acid batteries, connective cables, user manual and technical papers.
Control system:
1 a) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current b) Operation display: I) Unit voltage, tri-phase load current and frequency display II) Water temperature, oil pressure display III) Fuel level, fuel temperature display IV) Audible and visual alarm lamps and buzzers2 Starting system: DC alternator is used to start engine3 Short circuit protection: MCCB air switch4 Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40° C5 Filter system: Oil, fuel and air filter6 Accessories: Exhaust elbow, bellow, muffler.
Supply standard configure:
A) Diesel engine with all accessories, 3 filter, electric systems b) Alternatorc) Steel structure
D) Fan and water tank cooling system
E) Flange connectorf) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) MCCB air conservation switc
J) 12 / 24V starting accumulator and Battery line
K) Set shock absorber
L) High-efficient silencer.
Parameters:
1) Rated voltage: 400 / 230V, 220/127V
2) Rated Frequency: 50Hz/60Hz
3) Mode of connection: 3-phase-4-line
4) Rated power factor: 0.8 (lagging)
5) Wave distortion: < 10%
6) Power supply voltage: 24V.
