Rated output 4.5kW, Max. Output 5.5kW, single Phase, AVR
9HP, Diesel, Single Cylinder, 4-Stroke, Electric Start.

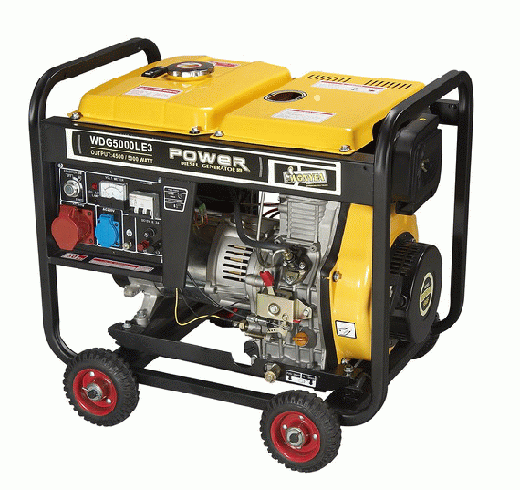

Model: WDG5000L/WDG5000LE3
Type: Revolving field type 2 poles generator
Voltage Regulate: Capacitance & AVR
AC Frequency (Hz)
60
50
AC Output Voltage (V)
110; 120; 110/220; 120/240
220; 230; 115/230
Cont. AC Output (VA)
5000
4500
Max. AC Output (VA)
5500
5000
DC Output (V/A): 12 / 8.3
Engine Model: WE186F
Type: Single cylinder, Air-cooled, 4-stroke vertical
Starting System: Recoil / Electric Start
Fuel/Lub Capacity (L/in. ): 15(3.96) / 1.65(0.44)
Fuel/Lub. Oil: 0# in summer, -10# or -20# in winter/SAE10W30
Operating Noise Level (at 7m): 85dB(A)
Packing Dimensions (mm/in. ): 750x490x680 / 29.5x19.3x26.8
Net Weight (kg/lbs): 100 / 220.5
Genon Power Co., Ltd. Was established in 2005, which is specialized in producing series of gasoline generator set, diesel generaror set, digital inverter generator sets, gasoline engine, diesel engine, water pumps, parts of generators and garden machines. Having an abounding experiences in this line, we are dedicated to research and develop our products.
GENON have been delivering standard and custom designed products to over 80 countries and regions, including US, Canada, Germany, UK, France, Italy, Netherlands, Belgium, Norway, Denmark, Sweden, Finland, Austria, Switzerland, Spain, Portugal, Greece, Iraq, Taiwan, India, Israel, Brazil, Argentina, Mexico, Chile, South of Africa, Australia, etc. Primarily in Europe, Africa and America.
GENON pay much attention to the quality of products, and has been certified by ISO9001 and ISO14000. Each step of manufacture is carried out with strict adherence to the standards of these certifications. While many products have gotten CE, EMC, NOISE, GS, SONCAP and EPA certifications to constantly bring our customers reliable and high-quality products. You can count on us for quick and economical after-service solutions. It is always our goal to develop our brand recognition based on exceptional customer service, and to be a contributing member to our employees and the communities in which we do business, both economically and socially!
GENON will pursue the technological innovation to further our development and devote ourselves to offer both qualified products and satisfying service to our customers and strive continuously. Warmly welcome you, join hands and co-create fortune.
