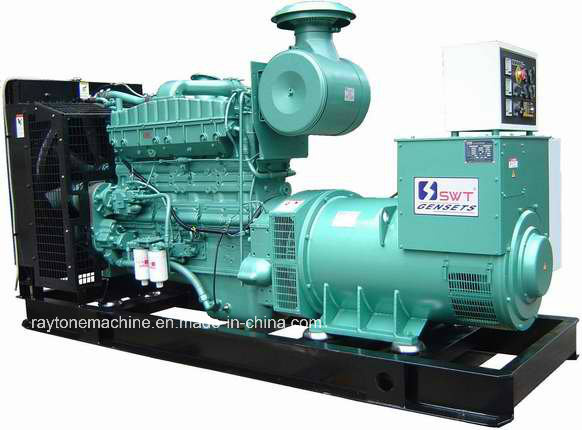

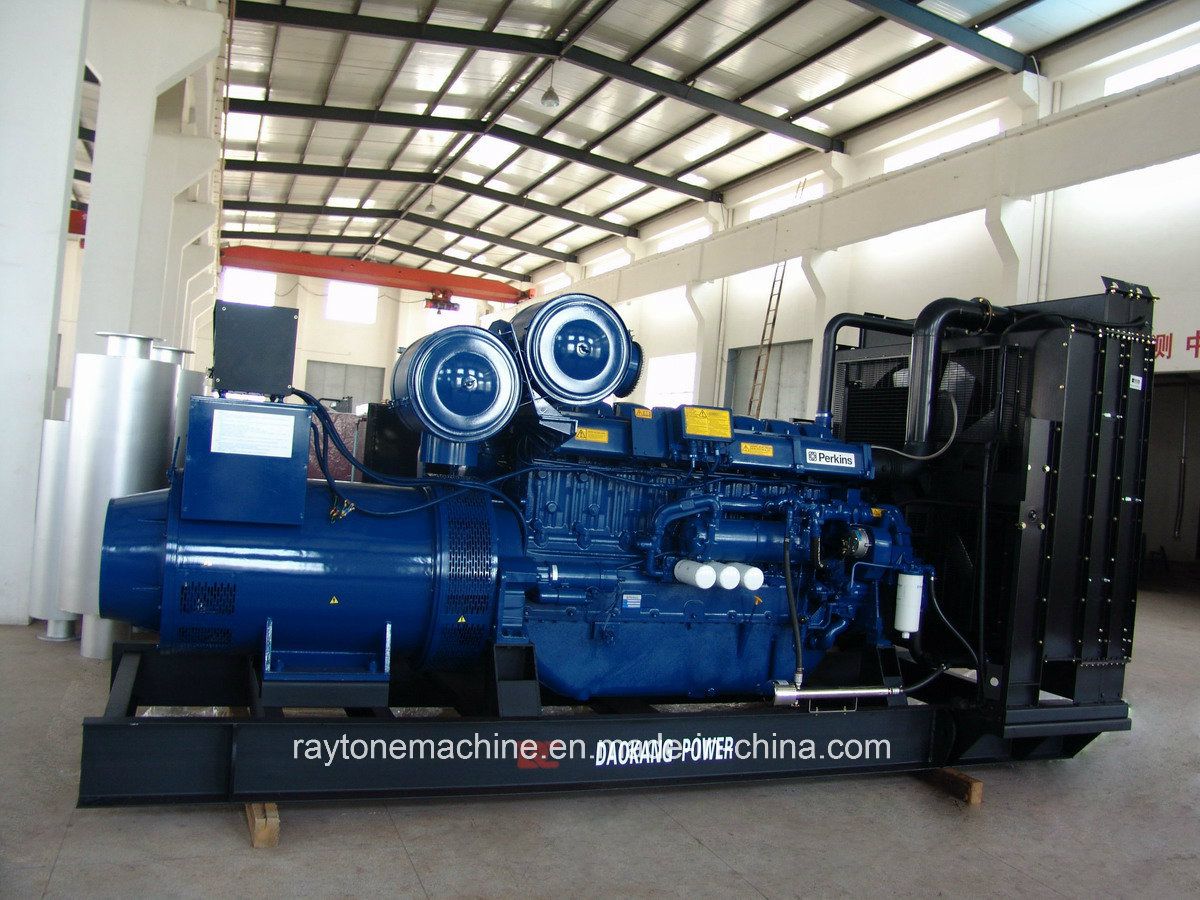

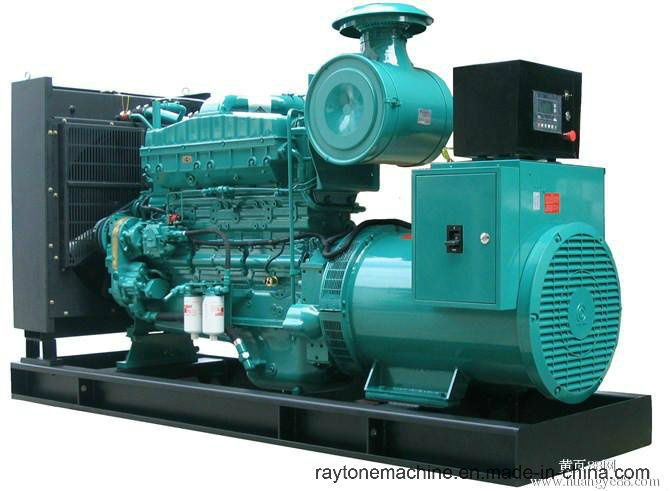

Open Diesel Generator

Weichai series diesel generator, which is the newest diesel motors. The diesel motors are improved by Weichai power and British Ricardo Sino-British Joint Venture. They are classified into four cylinders and six cylinders. They are belong to the inline, water-cooled, four stroke and comnustion chamber type high speed direct injection diesel engines. The power levels are range from 15.8kw to 155kw. There are many advantages, such as high reliability, low fuel consumption, large torque, low discharge, small volumn and large power etc. generator

OPEN FRAME GENERATOR SET SPECIFICATION

*Powered by weifang engines

*Radiator 40°C max, fans are driven by belt, with safety guard

*12//24V DC start motor and storage battery

*Brushless, self-excited, IP22/23, insulation H alternator

*Absorber to reduce vibration

*Dry type air filter, fuel filter, oil filter

*Main line circuit breaker

*Control system: Key start control panel as standard, digital auto start or ATS system is optional

*8 hours operation base fuel tank

*High efficient muffler to reduce noise

*Ripple flex exhaust pipe, exhaust siphon and flange etc.

*Genset type: open type or soundproof/silent type, or trailer type

* Maintenance and operation manual, quality certificate, etc.

 *Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%

and all protection function(over speed stop, high water temperature, low oil pressure, battery

charging fail, emergency stop)

*Certificate: ISO9001:2000, CE (ESC/070119), BV





 More information:

-There are open frame and silent type diesel power station for customers choices.

-Manual, Automatic, ATS and remote control transfer system for customers choices.
