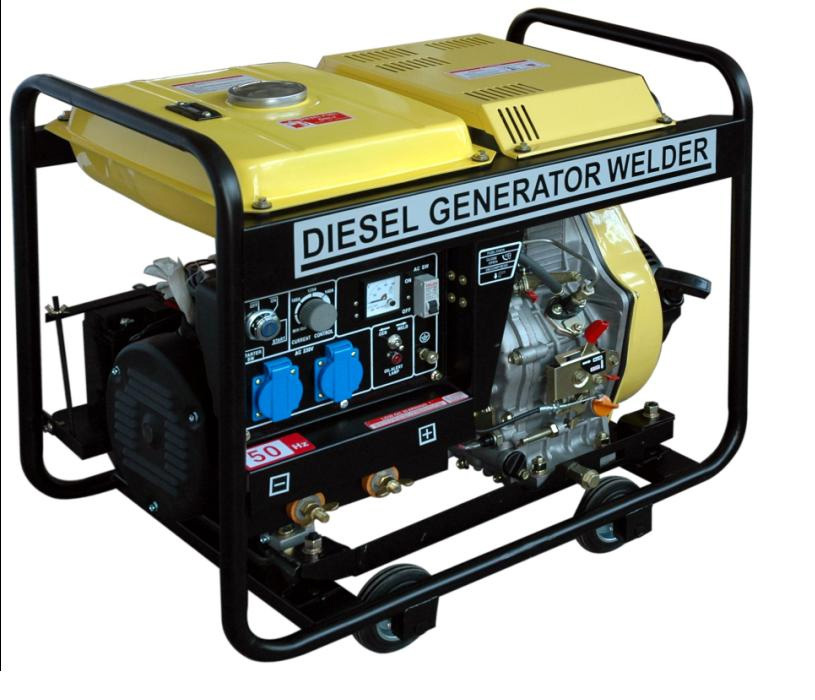

Open NM Model Diesel power generator
-Advanced direct fuel injection system;
-Dynamic balancer; No fuse circurt breaker;
| Model | 6500A/AE |
| generating | Frequency(HZ) | 50 |
| AC output(KVA) | 6 |
| Phase | single phase |
| Dc Output | 12V/8.3A |
| Rated AC voltage | 110, 120, 220, 230, 240, 110/220, 120/240 |
| engine | Engine Model | 186FA |
| Engine Type | Air Cooled, 4 Stroke, Single Cylinder |
| Excitation | Brushless Excitation |
| Voltage Regulator | AVR |
| Bore X Stroke [mm(in. )] | 86X72 (3.39X2.83) |
| Continuous output (HP) | 7.7 |
| Displacement (CC) | 418 |
| Engine speed (RPM) | 3000/3600 |
| Starting system | Recoil/Electric |
| Fuel | 0#(summer) or - 10#(winter) light diesel oil |
| Lube | SAE10W30 (above CC grade) |
| Fuel tank capacity (L) | 15 |
| Lubricating Oil Capacity (L) | 1.65 |
| Fuel consumption rate [(g/kw. h)/r/min] | 275/3000 |
|
| Continuous Work (h) | 8 |
| Noise level(at 7m) (DBA) | 77 |
|
| packing | N. W/G. W (KG) | 103/112 |
| Dimension(mm) ( L X W X H ) | 727X495X597 |
| 20ft Container Qty | 105 |
| 40ft Container Qty | 216 |
LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering Alternators, Generators, Electric Motors, Water Pumps, etc.
With years of development, LANDTOP has developed into a large-scale, modern, comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network. We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our international center is located in Hongkong(Hongkong Landtop Group Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.
We are always making great efforts to achieve the integration of manufacture and sale. We are able to meet our customers' demands, providing them with superior quality products. Our products, owing to reasonable price, high efficiency and energy saving performance, are widely praised by clients in over 80 countries and regions, such as Europe, America, Southeast Asia, the Middle East, Africa, etc.
Professional R&D system, standard technology, a skilled QC team and the best management group can offer you firm guarantee. Our group is continuously making arduous efforts on innovation to better serve our customers. We ensure that our cooperation will bring a win-win benefit to both of us.
