ASTM : C10200, CDA102
Composition : Cu>99.95%, O<0.001%
Melting point : 1082.5 - 1083C
Thermal expansion coeficient : 17x10-6C/C @20C
Electric conductivity : 100% IACS @20C(68F)
Elasticity modulus : 17x10 PSI
Rigidity modulus : 6.4x10 PSI
Tensile strength : 42,000 PSI
Yield strength : 36,000 PSI
Rockwell B hardness : >40
Characteristics : 1, Good formability
2, High thermal and electric conductivity
3, Corrosion resistance
4, Ease of welding
5, Good creep resistance
6, High ductility
Applications : 1, Electrical conductors, Klystrons, Microwave tubes
2, Electrical conductors for solar system
3, Busbars, Bus conductors, Wave guides
4, Tubing, LP Gas service,
5, Medical gas-oxygen
6, Vacuum seals
7, Mold tube
8, Extrusion cans for powder metallurgy etc.
Forms available:

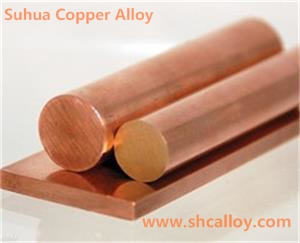

Round/rectangular bars : 1-150mm(diameter)
Plates : 8-150mm(thickness)
Hexagons : A full range
Other forms : Available upon request
The most reliable copper alloy material partner that you can always count on !
Suhua Copper Alloy Co., Ltd. Was founded in 2010. We are the professional and forerunner in the field of copper alloy R&D and manufacturing in China. Our management team has nearly 30 year's experiences in the field of copper alloy manufacturing.
The copper alloys we manufacture includes: Chromium zirconium copper(C18150), chromium copper(C18200), nickel silicon chromium copper (C18000), nickel beryllium copper(C17510, C17500), beryllium copper(C17200, C17300), Zirconium Copper(C15000, C15100), Tellurium Copper (C14500), Oxygen free copper (C10100/C10200), copper nickel alloys(C79200/C79400) etc...
The forms we manufacture include: Round bars, square bars, rectangular bars, hexagonal bars and different types of plates and sheets per customers' requirements.
With more than 20 years of copper alloys R&D and manufacturing experiences, coupled with a full range of manufacturing equipments. Our manufacturing process starts with raw materials and ends with customized shape/forms copper alloys. This enables us to supply high quality copper alloys at very competitive prices.
Over the past years, we have earned a nationwide reputation for high quality materials at competitive prices, quick deliveries and superior services.
Our materials are being exported to Europe, North America, North-east Asia, South-east Asia etc.
Quality is an essential part of our manufacturing operations, our highly trained quality assurance team will do all necessary testings and inspections to make sure that all materials are met customers' requirements and expectations before shipping the materials to our customers.
Our copper alloys are mainly used in automobile industry, aerospace industry, aircraft industry, appliance industry, consumer electronics, eletronic equipments, electrical equipment, foundry products, industrial machinery, machine tools, resistance welding industry, telecommunication industry, transportations(high speed train) etc.
Our materials are used by Volkswagon, Toyota, Hongda, Ford, China high speed train etc.
Our factory, covering an area of 6, 000 square meters, staffed with 60 persons, is located in Gushan town, Jingjiang city of Jiangsu province, China. Our daily capacity is up to 3 tons. Space is available to make a quick capacity expansion.
For more information on our products, please visit our website: www.shcalloy.com
You are welcome to visit us at any time!
