Home Generator Products off Grid Supply 5kw Solar Generator Solar Electricity Home Photovoltaic System Home Solar Panel Kit

off Grid Supply 5kw Solar Generator Solar Electricity Home Photovoltaic System Home Solar Panel Kit

off Grid Supply 5kw Solar Generator Solar Electricity Home Photovoltaic System Home Solar Panel Kit
Price: US $ 1222-15555/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: T/T,Paypal,Money Gram,Western Union
Off Grid Supply 5kw Solar Generator Solar Electricity Home Photovoltaic System Home Solar Panel Kit

Solar on grid system: Solar panel+grid tie inverter
Solar off grid system: Solar panel+hybrid inverter(controller, inverter)+battery
(other parts as PV array combiner, rack, cable can optional)
System Application:
1, Living house and home building;
2. Office building, factory and warehouse
3. Shopping mall, venue, stadium and so on
4. Power station, field operation and some huge engineer construction
Good quality, best price and better technical support and service, make Tanfon energy technology Co., Ltd as your most valuable cooperator in China.
Off  grid  solar  power  supply  system-  SP-10KW
System
Basic  Information
Solar  panel  rated  output  power:       8KW
Suitable  for  daily  power  consumption  :   < 32KWH
Allowable  max  loads  power  :   12KW

Solar  panel

type: mono  solar  panel(poly  optional)
Max  power  : 200w
Vmp: 28.8V    Voc: 36.4V
Imp  8.3A      weight: 20KG
Size  :   1172*983*35mm
25  years  life  time    (CE  TUV)
Connect  way: 4pcs  panels  in  series  as  a  string,
10  strings  in  parallel
QTY
40pcs
PV  Array  Combiner

Model: H10T-96v  Multiple  PV  strings  inputs
Simplify  wiring  between  PV  array
and  controller,   protections  to  controller  , features:
Wide  range  of  DC  input  voltage
Reliable  thunderstorm&   surge  protection
QTY
1pcs


Notes:

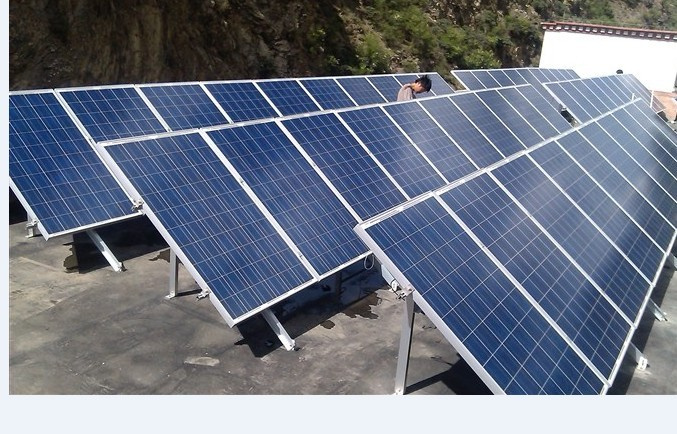

1. pictures  show  are  for  reference.
2. power  output  data  is  based  on  areas  with  daily  average  peak  power  shine  of  4.5hrs
3. the  battery  capacity  is  designed  for  power  storage  of  1.5-2  days  PV  output
4. solar  panel  rack  can  be  specially  designed  based  on  site  condition


Remark:
1)solar  panel  have  5  years  warranty;
2)other  parts  have  2  years  warranty;
3)ship  the  free  parts  for  service(best  service  in  china)
4)Accept  OEM
5)MOQ: 1  set
Hybrid  solar  Inverter

Inverter  power: 10kw/96v
MPPT  Controller  model: 96v/100A
Charging  efficiency;   90%-95%,
LCD  display  inverter  and  controller  info
With  AC  charger  built  in
Output: 110v, 120v, 220v, 230v, 240v(optional)
Product  size:   590*470*730mm
Weight: 107KG
QTY
1pc

Battery

Capacity: 12V/200AH  full  sealed
Solar  power  lead-acid  battery,
Service  life: 5-6  years  ,
Size: 522*238*218mm
Weight: 58KG    Connect  way: 8  connect  panels  in  series  as  a  string,   4strings  in  parallel
QTY
32pcs

Panel  ground  rack

Ground  rack  installation
including  complete  fittings

(other  type  of  rack  can  be  customized  as  per  client' s  requirement  )
QTY
1set

Cables

12mm2  cables(one  red  and  one  black)
International  standard,   with  specification  suitable  for  solar  system
QTY
200m

Prod Model: SP500-SP20KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Products Name: Solar Electricity System
Use Way: Home/Industrial Use
Capacity: 1-10kw
Output Voltage: 110/120/220/230V
Output Frequency: 50/60Hz
Controller Size: 20-100A
Inverter Output Wave: Pure Sine Wave
Inverter Capacity: 1-10kw
Warranty: 3years
Optional: off Grid Wind System/on Grid Wind System
System: Off-Grid system
Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling solar wind product and all kinds of pure sine wave inverter. As one of the leading factories in the green energy source field, Tanfon was initially established in the year of 1996. We are a professional manufacturer of green energy products including: Solar power system, wind power system, solar street light system, all kinds pure sine wave inverter(solar inverter, wind inverter, home UPS inverter ), controller, battery products., with advantage of possessing a professional R&D team to develop new wind energy turbine and inverter in concept of "Green Energy Leads Low Carbon Life".

Product sales to

(Pakistan, Nigeria, Canada, , Costa-Rica, Cyprus, Mocambique, Turkey, Malavi, Thiland, Philippines, Belgium, Indonesia, Czech Republic, Madagascar, Italy, Australia, Egypt, Tajikistan, Sri Lanka, Malaysia, France, USA, Guaemala, Switzerland, Israel ect)

We accept OEM and small trial orders, contacting with us for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual beneficial cooperation relationship with you.

Good quality, best price and better technical support and service, make Tanfon energy technology Co., Ltd as your most valuable cooperator in China.
