Quick details

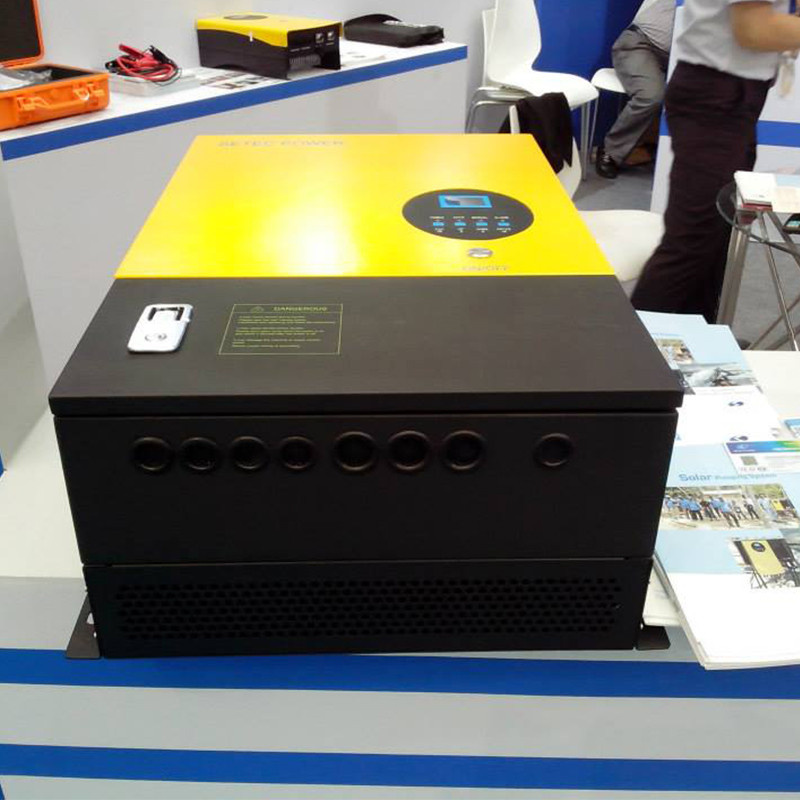

1. Solar power inverter for 3 phase water pump motor
2. Stainless steel, waterproof shell with IP65
3. High efficiency>98%
4. GPRS function (optional)
5. LCD display
6. With Soft start, VFD, MPPT
7. Without battery and solar charge controller
8. Provide 2 years warranty
Features
1. Adopting the dynamic VI maximum power point tracking (MPPT) control method & optimized SPWM; Fast response and stable operation.
2. IPM (intelligent power module)electronic design and transformerless, conversion efficiency 98%, high reliability.
3. AC drive function for small solar power inverter. When is no sunshine, such as at night, solar power inverter can connect to AC city power to work by manually if AC power is available. But (this function is optional).
4. Solar power inverter can be built-in GPRS receiving module(this function is also optional). You can operate this inverter remotely through your PC or mobile phone with our provided website, user name and password.
5. Adjustable speed range of pump based on the actual situation of the system.
6. Setting parameters and fault detection through LCD display. (43*29mm) and keys, easy operation, good view through LCD when setting parameter, feel comfortable.
7. Patented low voltage boost device for small pump to reduce solar panel to save money.
8. Working environment temperature: -10 to 60 º C
9. Stainless steel and waterproof shell, waterproof fan good for cooling
10. System protection
A. Dry Well
B. Over Flow
C. Output Overload
D. Low Input Voltage
E. Over Input Voltage
F. Over Temperature
G. Lighting
H. Reverse Polarity
11. No starting Box Required
12. Water storage instead of battery power storage, no need battery.
Application
· Remote Villages, Homes, Cabins and Hunting Lodges (home use)
· Irrigation for remote orchards, gardens, and greenhouses (irrigation water)
· Wildlife watering at wild game parks and farms (irrigation water)
· Fish pond water level maintenance and aeration (home use)
· Swimming pool circulation& filtration pumps (home use)
· Surface water pumping for landscaping streams and waterfalls (home use)
· Cattle, Livestock watering systems (animal husbandry )
· Water supply for sea island
· Water treatment projects, for example, sea water desalination.
Packaging Details: Wooden box or follow the customers' requirement
Delivery Detail: 3 days
FAQ
1. Solar pump system requires battery or not?
No need battery. Water storage replaces battery.
2. What's main application of solar pump system?
The solar pumping system is widely used for sea island water supply, desert controlling, daily life water supplying, agricultural irrigation, forest irrigation, farm irrigation, waterscape, and water treatment project.
3. If inverter is 220v/3phase, can it run 380v, 3phase motor?
NO. 220v/3phase solar pump inverter can't run 380v/3phase motor.
4. What is your solar pump inverter protection?
A: Dry well
B: Output overload
C: Over voltage
D: Over temperature
F: Over current
G: Reverse polarity
5. Can you supply a weatherproof box to mount the solar pump inverter in?
Yes, we can.
Specification
|
|
Solar Pumping Inverter |
Adapting Pump Motor |
PV Peak Power(kWp) |
|
Model |
Rated Power(KW) |
Max. Input DC Voltage(V) |
MPPT voltage(V) |
Output 3 phase AC Voltage
(V) |
Output Frequency
(Hz) |
Rated Power(kW) |
Rated Voltage(V) |
|
SGY750L |
0.75 |
430 |
280-350 |
220 |
0-60 |
0.55-0.75 |
220 |
1.1 |
|
SGY1500L |
1.5 |
430 |
280-350 |
220 |
0-60 |
1.1-1.5 |
220 |
2.2 |
|
SGY2200L |
2.2 |
430 |
280-350 |
220 |
0-60 |
2.2 |
220 |
3.3 |
|
SGY3700L |
3.7 |
430 |
280-350 |
220 |
0-60 |
3-3.7 |
220 |
5 |
|
SGY750H |
0.75 |
430 |
480-600 |
380 |
0-60 |
0.55-0.75 |
380 |
1.1 |
|
SGY1500H |
1.5 |
430 |
480-600 |
380 |
0-60 |
1.1-1.5 |
380 |
2.2 |
|
SGY2200H |
2.2 |
750 |
480-600 |
380 |
0-60 |
2.2 |
380 |
3.3 |
|
SGY3700H |
3.7 |
750 |
480-600 |
380 |
0-60 |
3-3.7 |
380 |
5 |
|
SGY5500H |
5.5 |
750 |
480-600 |
380 |
0-60 |
4.5-5 |
380 |
8 |
|
SGY7500H |
7.5 |
750 |
480-600 |
380 |
0-60 |
7.5 |
380 |
10 |
|
SGY11KH |
11 |
750 |
480-600 |
380 |
0-60 |
9.2-11 |
380 |
15 |
|
SGY15KH |
15 |
750 |
480-600 |
380 |
0-60 |
13-15 |
380 |
21 |
|
SGY18KH |
18 |
750 |
480-600 |
380 |
0-60 |
18.5 |
380 |
25 |
|
SGY22KH |
22 |
750 |
480-600 |
380 |
0-60 |
22 |
380 |
30 |
|
SGY30KH |
30 |
750 |
480-600 |
380 |
0-60 |
26-30 |
380 |
42 |
|
SGY37KH |
37 |
750 |
480-600 |
380 |
0-60 |
37 |
380 |
50 |
|
SGY45KH |
45 |
750 |
480-600 |
380 |
0-60 |
40-45 |
380 |
60 |
|
SGY55KH |
55 |
750 |
480-600 |
380 |
0-60 |
55 |
380 |
75 |
|
SGY75KH |
75 |
750 |
480-600 |
380 |
0-60 |
65 |
380 |
98 |
