OEM Oxygen Cylinders 40L Working Pressure 15mpa for Oxygen Plants.
( With O2 Valves)
Specs of 40L Seamless Steel O2 Cylinders(6M3):
-1). Water capacity: 40 Liter; Mat.: 37Mn;
OD= 219 mm; W. P/T. P.: 15/25Mpa; Wall thickness: 5.7 mm; G. W.: ~47kg;
Height: 1, 345 mm (W/O cylinder cap); Gas(O2): 6M3.
-2). Color: As GREEN preferred;
-3). Connecting thread:
-4). Applied standard: ISO 9809-3;
-5). Packing: Each with nylon bag or as preferred(based on bilateral agreement).

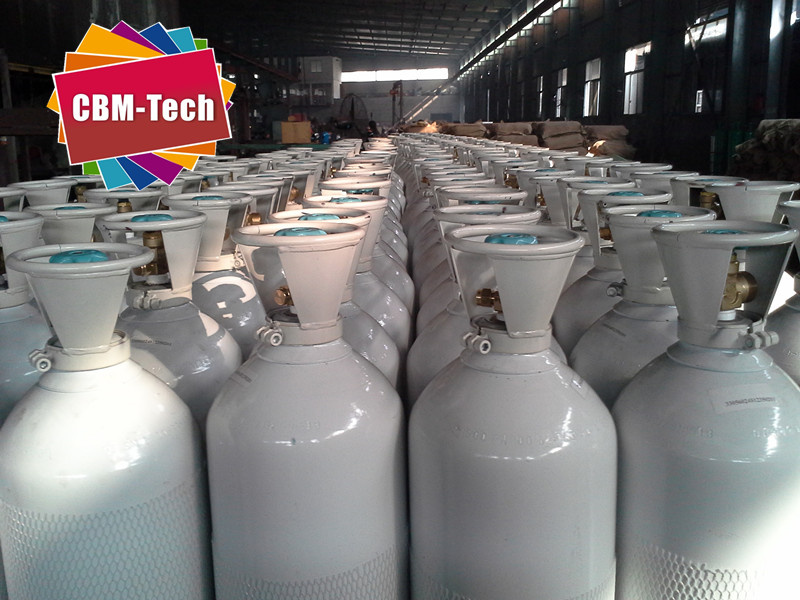

(With Steel Valve Guards)
Being a professional manufacturer of gas cylinders, we can produce high-quality seamless steel gas oxygen cylinders from 2L to 68L with different stadard specifications as per your kind request(s). If any interests or some more info needed, pls feel free to contact us!
|
Type |
Outside Diameter OD. (mm) |
Water Capacity (L) |
Height
(W/O valve) (mm) |
Weight
(without valve cap)W(kg) |
Material |
Standard |
|
WMA108-1.4-15 |
108 |
1.4 |
238 |
2.96 |
37Mn |
GB5099-3 |
|
WMA108-2-15 |
108 |
2.0 |
320 |
3.75 |
|
WMT108-2-15 |
108 |
2.0 |
317 |
3.72 |
|
WMA121-3.2-15 |
121 |
3.2 |
390 |
5.02 |
|
WMT121-3.2-15 |
121 |
3.2 |
385.8 |
4.98 |
|
WMA121-4-15 |
121 |
4.0 |
485 |
6.16 |
|
WMT121-4-15 |
121 |
4.0 |
470 |
5.95 |
|
WMA140-4-15 |
140 |
4.0 |
372 |
5.77 |
|
WMA140-5-15 |
140 |
5.0 |
458 |
7.52 |
|
WMA140-6.3-15 |
140 |
6.3 |
524 |
8.72 |
|
WMA140-7-15 |
140 |
7.0 |
593 |
9.84 |
|
WMA140-8-15 |
140 |
8.0 |
671 |
10.72 |
|
WMA140-10-15 |
140 |
10 |
845 |
13.4 |
|
WMA152-7-15 |
152 |
7.0 |
528 |
9.57 |
|
WMA152-8-15 |
152 |
8.0 |
600 |
10.66 |
|
WMA152-10-15 |
152 |
10.0 |
726 |
12.6 |
|
WMA159-10-15 |
159 |
10.0 |
685 |
14.15 |
|
WMA159-12-15 |
159 |
12.0 |
800 |
16.34 |
|
WMA159-15-15 |
159 |
15.0 |
975 |
19.66 |
|
WMA219-20-15 |
219 |
20.0 |
730 |
29.00 |
|
WMA219-40-15 |
219 |
40.0 |
1310 |
48.00 |
|
WMA232-40-15 |
232 |
40.0 |
1220 |
50.00 |
|
WZA232-47-15 |
232 |
47.0 |
1360 |
51.00 |
|
WMA219-50-15 |
219 |
50.0 |
1600 |
57.00 |
|
WMA232-50-15 |
232 |
50.0 |
1380 |
65.00 |
|
IWGA219-40-15 |
219 |
40.0 |
1380 |
52.00 |
34CrMo4 |
ISO9809-3 |
|
IWGA232-40-20 |
232 |
40.0 |
1170 |
52.00 |
|
IWGA232-47-20 |
232 |
47.0 |
1360 |
55.00 |
|
IWGA232-50-20 |
232 |
50.0 |
1440 |
56.00 |
Notes: -1)...WMA-Concave Bottom WMT-Convex Bottom;
-2). Hydraulic test pressure: 25Mpa or 30Mpa;
-3). Working test pressure: 15Mpa or 20Mpa;
-4). Various types of gas cylinders accessaries, say gas cylinder valves, cylinder caps, gas regulators can
be optional. |
Zhejiang Shengwei High Pressure Vessel Co., Ltd. is located in Yuyao, a famous historical and cultural city abutting on the Hangzhou Bay. The company established in June 2010, engaged in industry of high-pressure vessels. The factory covers about 21000square meters and an plant building with 15000 square meters. Now the company has the fixed asset more than 30 million RMB, and 120 employees. And there are 32 technicians among them. Also company has three advanced production lines of steel seamless cylinder and corresponding testing equipment. The company aims to produce and sales over 400000 0.2L-15L steel seamless cylinders each year.
Zhejiang Shengwei High Pressure Vessel Co., Ltd. is based the company mission of Quality First, Customer First, Technology advanced and Service Best. Establishing the quality assurance system for gas vessel producing. The company has B1 level qualification on pressure vessel, and also passed the ISO9001: 2008 International Quality Management System Certification. The company uses the most strict standard management to manage the procession of producing and testing and dedicates to design and make high-quality products with the most advanced technology.
Our company has advanced equipment, and consummate equipment for product Testing. The main production including nitrogen bottles, argon bottle, carbon dioxide bottle and seamless steel cylinders. The products are sold very well all over the world. The company welcomes all friends come to communicate and discuss with us for seeking common win-win development, and dedicates to offer the users with the high quality products and excellent service.
