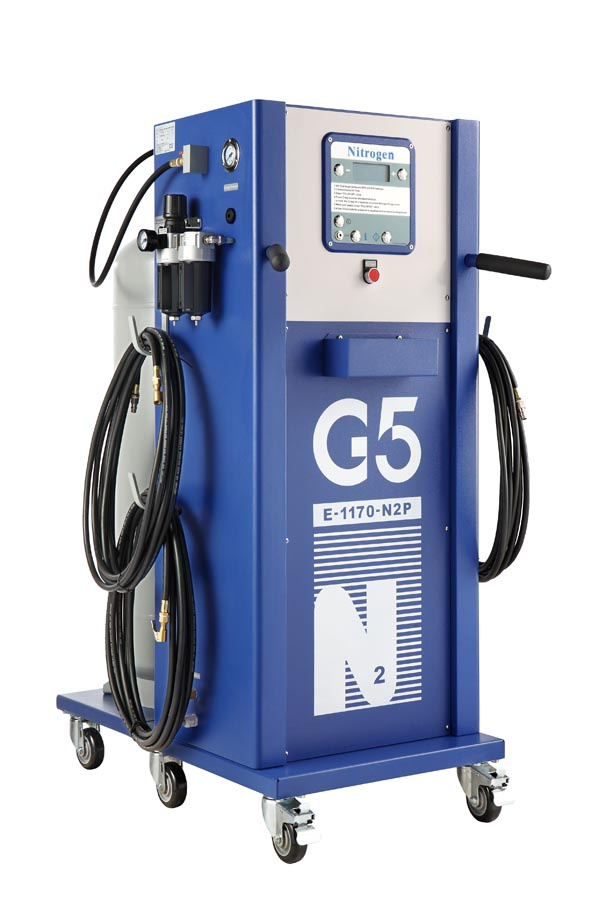

Main Features
1.145PSI/10bar High nitrogen pressuremake the unit a fit for almost any size automotive service facility **
2.Save 70% time than single tyre inflation
3. Converts up to 6 tyres to Nitrogen simultaneously at the touch of a button **
4. Fully automated, fully programmable, micro-processor controlled conversion system
5. Suit for: Car, Light Truck, Bus
Technical Data Summary
Dimensions/Weight Main Body Tank
Height 1310mm/51.6" 1100mm/43.3"
Width 730mm/28.7" 400mm/15.7"
Depth 620mm/24.4" 400mm/15.7"
Net Weight 170kg/374.8lbs 38kg/83.8lbs
Gross Weight 207kg/456.4lbs 42kg/92.6lbs
Packing Size Main Body Tank
Height 1450mm/57.1" 1180mm/46.5"
Width 730mm/28.7" 440mm/17.3"
Depth 670mm/26.4" 440mm/17.3"
Power Requirement 100-240VAC 50/60Hz,
Power Consumption 70VA
Max Inlet Compressed Air Supply 217PSI/15bar /1500kPa
Compressed Air Input Flow 1100l/min(39cfm)
Nitrogen Purity 95-99+ %
Nitrogen Output 228L/min(8cfm)@116PSI/8bar/800kPa Absorption pressure
Maximum Nitrogen Pressure in Tank 44PSI/3BAR/300KPA less than the inlet compressed air supply
Maximum Operating Pressure 12PSI/0.8BAR/80KPA less than the nitrogen pressure in tank
Minimum Operating Pressure 5PSI/0.3BAR/35KPA
Over Pressure Setting Range 0-29PSI/0-2.0bar/0-200kPa
Nitrogen Purges Cycles 0-9
Inflator Accuracy ± 1PSI/0.07bar/7kPa
Resolution 1PSI/0.1bar/5kPa
Units of Measurement PSI/BAR/KPA
Specifications:
1. Generates nitrogen from your compressed air
2. 2 Pre-Filters
3. Tank 118L/31.1gal(us)external nitrogen storage tank
4. Auto-start inflation
5. Automatic zero drift adjustment
6. Remain at last setting
7. Audible and Visual end of the cycle signal Indicator
8. Self-diagostic features
9. vandal resistant mechanical switches
10. Large backlisth LCD display
11.4 Nos. *8M/26ft standard hoses with single clip-on closed chuck
12. Comprehensive diagnostics and error reporting
13. N2P Nitrogen purge and fill cycle (N2P)
14. Nitrogen purity test port
15.Adjustable over pressure setting(OPS)
16. Adjustable number of cycles
17. Adjustable Lower purge pressure limit
18. 6 air outlets allow simultaneous inflation of up to 6 tires
19. Auto shut-off
20. 1NOS.Nitrogen Outlet to connect the unit and your tyre inflation gun
21. Options available;
118l/31.1gal(us) tank can be customised to 2pcs 14.5L/3.6gal(us) tanks
No need tank to inflate 8bar/116psi/800kpa or below pressure tyre/s
Operation Steps
1. Set final target pressure using the + and - buttons. The LCD screen will show the target pressure.
2. Connect air hose(s) to tyre valve stem(s).
3. FOR TOP-OFF ONLY: Push the "FILL/PURGE" button once.
FOR NITROGEN CONVERSION: Push and hold the "FILL/PURGE" button for 2 seconds until the LCD screen shows "N2P".
4. When unit "beeps" and the LCD screen flashes the target pressure, tyre inflation is complete.
We Zhuhai EST Corporation is specialized in manufacturing Nitrogen Tyre Inflation System and Automatic Air Tyre Inflator with brand name of G5.
EST Corporation is one of the earliest PSA Nitrogen Tyre Inflation System manufacturer in the global market. EST Corporation is the technical leader in this industry.
There are more than 30, 000 clients in over 60 countries using G5 Nitrogen Tyre Inflation System throughout the world.
Our monthly production capacity in our 6, 000m2 factory reaches 800 Nitrogen Tyre Inflation Systems and 1000 Automatic Air Tyre Inflators.
Constantly Innovation, Enhance Versatility, Superior Performance are reflected in our products. We warmly welcome you, our esteem customers to place us G5-branded order or OEM and ODM orders.
