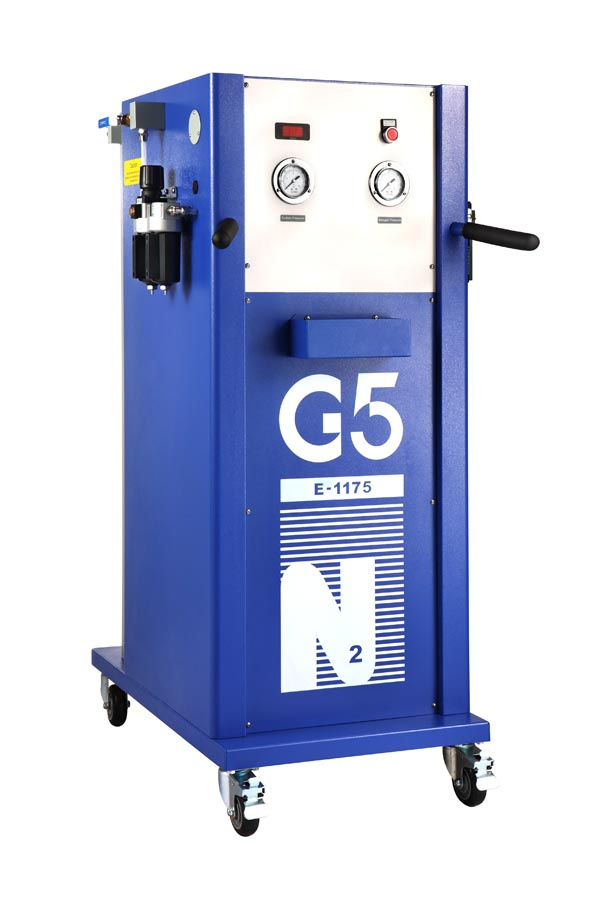

E-1175 Nitrogen Generator Main Features:
High Output, E-1175 can inflate a 12.00R22.5 tyre from zero to 120PSI/8.2bar in only 2.9 minutes
Suit for: Motorcycle, Car, Light Truck, Bus
Suit for: Painting *
E-1175 Technical Data Summary
Dimensions/Weight Main Body Tank
Height 1310mm/51.6" 1100mm/43.3"
Width 730mm/28.7" 400mm/15.7"
Depth 1000mm/39.4" 400mm/15.7"
Net Weight 320kg/705.5lbs 38kg/83.8lbs
Gross Weight 355kg/783.1lbs 42kg/92.6lbs
Packing Size Main Body Tank
Height 1450mm/57.1" 1180mm/46.5"
Width 730mm/28.7" 440mm/17.3"
Depth 1050mm/42.9" 440mm/17.3"
Power Requirement 100VAC/240VAC 50/60Hz,
Power Consumption 100VA
Operating Temperature Range -20C/-4° F to 70C/158° F
Compressed Air Input Range 145-217PSI/10-15bar /1000-1500kPa
Compressed Air Input Flow 1800L/min (62.4cfm)
Nitrogen Purity 95-99+ %
Nitrogen Output 508L/min (17.9cfm) @ 116PSI/8bar/800kPa
Absorption pressure
Maximum Nitrogen Pressure in Tank
145-174PSI/10-12bar/1000-1200kPa Adjustable
E-1175 Specifications:
1. Generates nitrogen from your compressed air
2. Auto Shut-Off
3.2*2 Pre-Filters
4.118L/31.1gal (us) external nitrogen storage tank
5.1Nos*10m/32.8ft standard hose with 2 quick couplers to connect the unit and your tyre inflation gun
6. Nitrogen purity test port
E-1175 Operation Steps:
1. Connect air hose to your tyre inflation gun - separately supplied.
2. Remove the tyre valve core to exhaust the residual air from the tyre.
3. Re-fit tyre valve core.
4. Inflate the tyre to the target pressure with your tyre inflation gun.
We Zhuhai EST Corporation is specialized in manufacturing Nitrogen Tyre Inflation System and Automatic Air Tyre Inflator with brand name of G5.
EST Corporation is one of the earliest PSA Nitrogen Tyre Inflation System manufacturer in the global market. EST Corporation is the technical leader in this industry.
There are more than 30, 000 clients in over 60 countries using G5 Nitrogen Tyre Inflation System throughout the world.
Our monthly production capacity in our 6, 000m2 factory reaches 800 Nitrogen Tyre Inflation Systems and 1000 Automatic Air Tyre Inflators.
Constantly Innovation, Enhance Versatility, Superior Performance are reflected in our products. We warmly welcome you, our esteem customers to place us G5-branded order or OEM and ODM orders.
