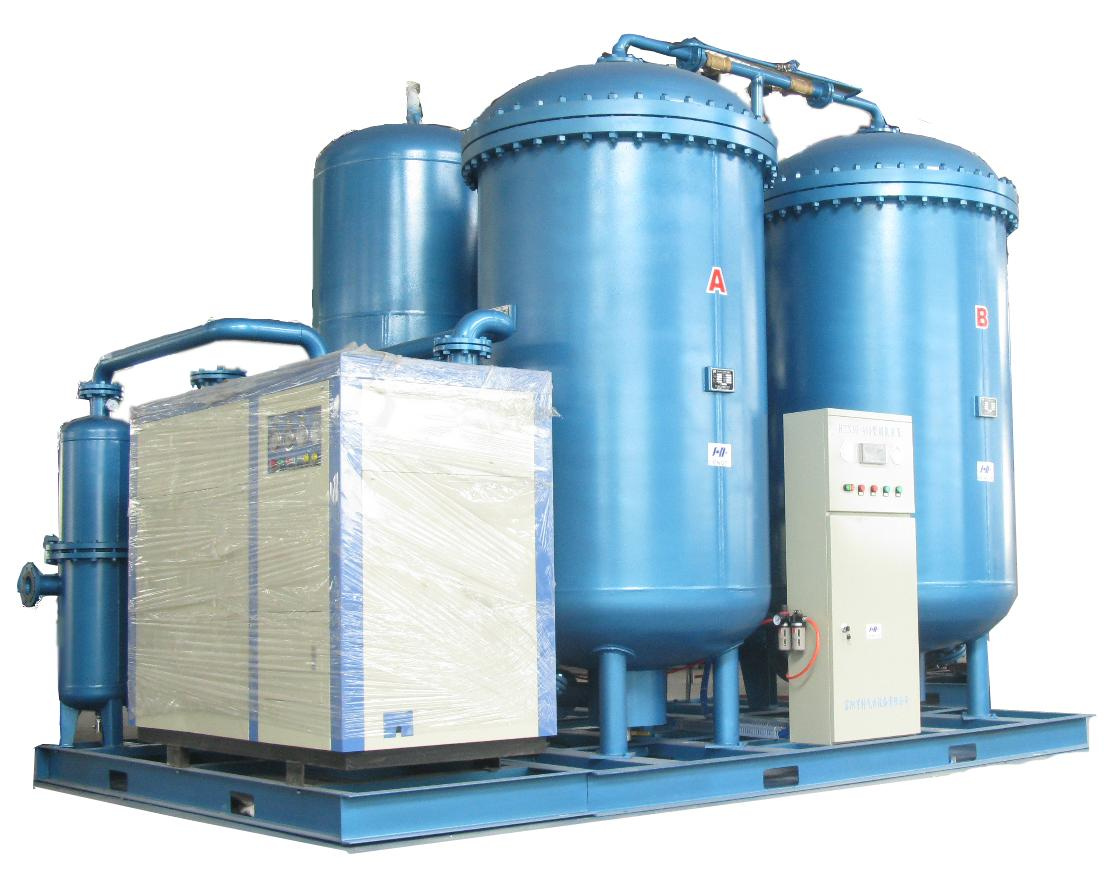

Nitrogen Plant

Nitrogen Plant
Price: Negotiable
Trade Terms: by Sea
Min Order: 1Set
Pay Type: T/T
HTN series PSA nitrogen generator machine adapt to high-quality carbon molecular sieve as adsorption, according to PSA theorem, making up the nitrogen direct from air. Because carbon molecular sieve to the oxygen's adsorption Capacity is based on the different pressure have sharp difference. Reduce the pressure, carbon molecular sieve can be desorption of oxygen molecules, so that alternating cycles of carbon molecular sieve can be regenerated, continuous output of high-quality nitrogen.

Technical Features:
1. Perfect process design, Optimal use of results
2. Reasonable internal structures, Uniform flow distribution, reduce the airflow High-speed.
3. Unique molecular sieve protection measures, to extend the life of molecular sieve
4. Simple operation, running stability, high autoimmunization, can running without people.
5. Nitrogen emptying automatic interlock devices, to ensure product quality and nitrogen.
6. Chose nitrogen installation flow, automatic control system of purity, remote monitoring systems and so on.

Technical Data:
- Nitrogen flow: 5-2500Nm3/h
- Nitrogen purity: 95-99.9995%
- Nitrogen pressure: 0-0.7MPa
- Dew point: ≤ -40 Degrees Celsius(Atmospheric pressure)

Application:
PSA nitrogen making machines are applied widely in chemical industry, electron, textile process, coal, petroleum, natural gas, medicine, food, glass and machinery.
model output of nitrogen(Nm3/h) effective air consumption(Nm3/min) inlet diameter(DNmm)   outlet diameter(DNmm) purity
HTN29-1000 100  5.0 40  25  99%
Prod Model: HTN
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Blue
Technology: Psa
Material: Carbon Steel
Capacity: 5-2500nm3/H
Purity: 95-99.9995%
Application: Industry, Medical and So on
Warranty Period: One-Year
Out Pressure: 0-0.7mpa
Raw Material: Air
Hangzhou Haishun Pharmaceutical Machinery Co., Ltd., located on the river bank of the beautiful Fuchun River, is a comprehensive and professional manufacturer integrating the design, development, manufacturing, selling, installation and after-sale service of food, dairy, beverage, pharmaceutical and biochemical machinery, emulsifying machines as well as hygiene fluid equipment. Our products are widely applied in food and dairy processing & mixing; Beer and wine ferment and storing; Cosmetic emulsifying; Pharmaceutical extracting and concentrating as well as chemical reaction.

In conformity with our main principle of "sincere and mutual benefits; High-efficiency and innovation, strict management and continuously aspirant attitude, first-grade manufacture and mature after-sales service", Haishun Company wins customers' trust and support. We are quite rigorous and accurate on the selection and purchasing of raw materials. We have specific QC to test the quality of stainless steel (SUS304, 304L, 316 and 316L), silicon/PTFE gaskets and others. All the inside finish will be 3A sanitary grade mirror polished, and the outside finish will be 2B satin or brushed finish according to International GMP Certification and Requirement. Based on scientific management, rigorous manufacturing, first-grade convincing quality and our mature after-sale service, we have gained a great reputation and prestige among our domestic and oversea customers.

We consider "create value for clients and mutual benefit" as our motto and will supply a stable stage and platform to all clients and make machines precisely as per your requirements.
