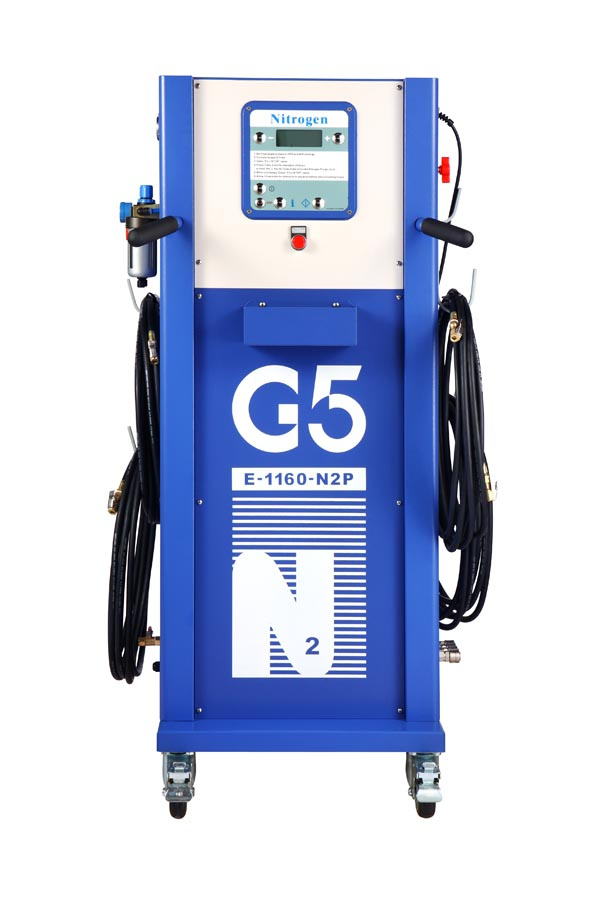

Nitrogen Inflation System (E-1160-N2P-f)

Technical Data Summary Dimensions (Height*Width*Depth) 1310mm*720mm*620mm 51.6"*28.3"*24.4" Net Weight 120kg/264.6lbs Gross Weight 145kg/319.7lbs Packing Size(height*Width*Depth) 1450mm*730mm*670mm 57.1"*28.7"*26.4" Power Requirement 100-240VAC 50 / 60Hz Power Consumption 35VA Operating Temperature Range -20/-4° F to 70 / 158° F Compressed Air Input Range 87-123PSI/6-8.5bar /600-850kPa Nitrogen Purity 95-99+% Nitrogen Output 93L/min(3.3cfm)@116PSI/8bar/800kPa Absorption pressure Maximum Nitrogen Pressure in Tank 102PSI/7bar/700kPa Operating Range 5-90PSI/0.3-6.2bar/35-620kPa Over Pressure Setting Range 0-29PSI/0-2.0bar/0-200kPa Nitrogen Purges 0-9 Inflator Accuracy ± 1PSI/0.07bar/7kPa Resolution 1PSI/0.1bar/5kPa Units of Measurement PSI/bar/kPa Specifications 1. Generates nitrogen from your compressed air 2. 2 Pre-Filters 3. 50L/13.2gal(us)internal nitrogen storage tank 4. Auto-Start inflation 5. Automatic zero drift adjustment 6. Remain at last setting 7. Audible and visual end of the cycle signal indicators 8. Self-diagnostic features 9. Vandal resistant mechanical switches 10. Large backlight LCD display 11.4 Nos. *8M/26ft standard hoses with single clip-on closed chuck 12. Comprehensive diagnostics and error reporting 13. Nitrogen purge and fill cycle (N2P) 14. Nitrogen purity test port 15. Adjustable over pressure setting(OPS) 16. Adjustable number of cycles 17. Adjustable lower purge pressure limit 18. 4 air outlets allow simultaneous inflation of up to 4 tires 19. Auto shut-off 20. 1Nos Nitrogen Outlet to connect the unit and your tyre inflation gun Operation Steps 1. Set final target pressure using the + and - buttons. The LCD screen will show the target pressure. 2. Connect air hose(s) to tyre valve stem(s). 3. FOR TOP-OFF ONLY: Push the "FILL/PURGE" button once. FOR NITROGEN CONVERSION: Push and hold the "FILL/PURGE" button for 2 seconds until the LCD screen shows "N2P". 4. When unit "beeps" and the LCD screen flashes the target pressure, tyre inflation is complete.
