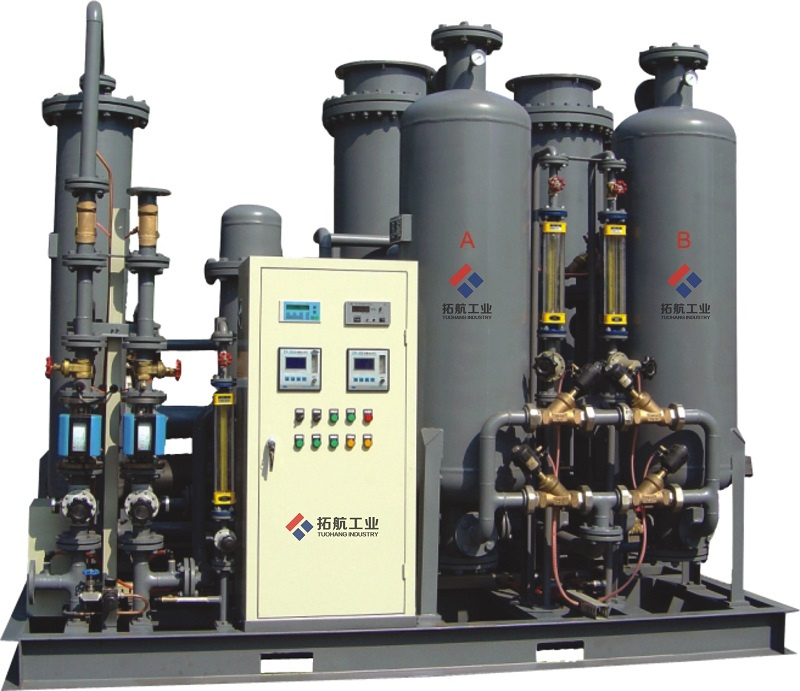

Nitrogen High Purifying Equipment (THH)

Working   Principle
Under the action of catalytic agent,oxygen in the low-purity nitrogen and hydrogen added into  the system generate water  after combustion reaction.After re moving the residual oxygen and further denitrification ,it goes into   drying system to dehydrate  deeply and high-purity nitrogen is produced.\

Technical Features
Automatic nitrogen-adding and -proportioning device with national patented technology has high control  precision and reliable safety.
Energy - saving technique with  national patented technology makes the energy consumption of the system reduce  greatly.
Automatic venting device  with national  patented technology ensures the quality  of the produced nitrogen.
Key parts of the system adopt  the famous brand,which is the effective guarantee of the equipment quality.
It has functions of diagnosis,alarming and automatic troubleshooting of several failures.
The centralized monitoring  system can provide centralized monitoring of the auxiliary equipments such as nitrogen   PSA equipment,nitrogen  production device,etc.
DCS   communication interface is optional.

Model and Specification	THH-10	THH-20	THH-40	THH-60	THH-100	THH-150	THH-200	THH-300	THH-400	THH-500
Rated Nitrogen Output(Nm³/h)	10	20	40	60	100	150	200	300	400	500
Rated Air Processing Amount Membrane Separation Nitrogen(Nm³/h)	11	22	44	66	110	165	220	330	440	550
Rated hydrogen Processing Amount Membrane Separation Nitrogen(Nm³/h)	0.13	0.25	0.45	0.7	1.2	1.7	2.3	3.4	4.5	5.6
Installed Power(KW)	1	3	4	5	8	11	16	24	30	38
Cooling Water(t/h)	0.4	0.8	1.2	1.5	2.7	3.5	4.3	6.2	8.6	10.5
