Nitrogen Generator

Nitrogen Generator
Price: US $ 1000-3000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Overview

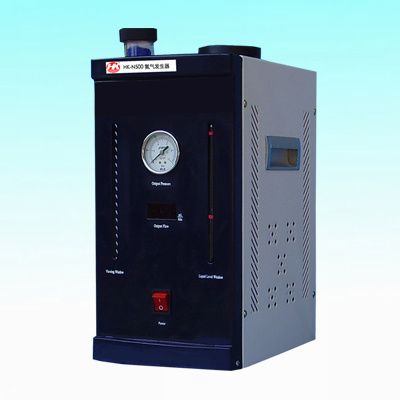

HK-N500 nitrogen generator regards constant pressure pure air as the feed gas, we adopts the electrocatalysis technology to generate nitrogen. we use precious metal for catalytic layer content ,which greatly increases the nitrogen purity. All automatic process control with stable flow and nitrogen production.
Our H HK-N500 nitrogen generator can be completely able to meet any domestic or overseas model GC (gas chromatograph) use.

Features
Automatic emptying function: the generator equipped with automatic emptying device, which avoids manually cumbersome emptying and wrong operation, that can ensure 30 min automatic emptying after starting up.
process control:The generator adopts special-purpose chip for the control system to make all the working process completed by automatic program. Automatic constant pressure, current, and nitrogen flow is implemented automatic adjustment according to the gas chromatograph 0 ~ 500 ml/min
Advanced technology: electrolytic tank adopts the latest membrane separation technology, use the precious metal content as catalytic layer, that makes the electrolytic tank catalytic ability highly efficient, we do more than 100 hours of t aging test for the electrolytic tank before delivery, which ensures the electrolytic tank performance and working condition highly stable.
Immersion type electrolytic tank: good cooling performance while electrolytic tank is working, no need forced circulation. high efficiency for the whole electrolytic process , and we equip one-way valves on the electrolytic tank inlet and outlet, which make ensure internal pressure of the electrolytic tank under 0.15 MPa at any circumstance. Fundamentally solve the out-liquid phenomenon.
3 levels catalytic: equipped with third catalytic, besides the two stage catalytic in electrolytic tank. We use new type precious metal catalysts, which made oxygen content less than 3 PPM
low nitrogen humidity: we adopt the ultra-high molecular weight osmosis membrane separation technology and effective dehumidification device, thus reducing the original humidity, also can discharge water automatically after downtime. We used metal polymer dehumidification and two-stage absorption, which greatly increases nitrogen purity.
Convenient operation: save manual labor for moving the nitrogen cylinder, user just opens the power switch, the generator can supplies a steady amount of nitrogen, also our generator can work continuously or intermittently
Safe and reliable: equipped with a safety device, sensitive and reliable

Technical parameter
nitrogen purity :oxygen content<3PPM; Dew point-56degree
nitrogen flow:0~500ml/min
Output pressure: 0.4MPa
Air discharge time :30min±5min
pressure stability:
<0.003MPa
Power supply: 220V±10% 50Hz
Consumable power: 180W
Ambient temperature: 1~40degree

relative humidity: <85%



Prod Model: HK-N500
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nitrogen Purity: Oxygen Content<3ppm; Dew Point-56degree
Nitrogen Flow: 0~500ml/Min
Output Pressure: 0.4mpa
Air Discharge Time: 30min±5min
Pressure Stability: <0.003mpa
Power Supply: 220V±10% 50Hz
Consumable Power: 180W
Ambient Temperature: 0~50°c
Liaoning Huake Petroleum Apparatus Science & Technology Co., Ltd., formerly named as Shenyang Weigong Glass Meter Plant, is a high-tech enterprise which is integrated with research, manufacture and trade. With the reform of internal management system, a new company, Shenyang Huake Petroleum Analyzing Apparatus Co., Ltd., was established on the basis of several years of management and some business segments with registered capital of RMB three million yuan. The company was certified by ISO9001: 2000 "Quality Management System" and the quality management meets the requirements of GB/T19001-2000.

The company is engaged in research, development and manufacture of various liquid-in-glass thermometers, glass floating meter (densitometer), glass test apparatus for petrochemical industry and test apparatus & instrument for petrochemical industry in accordance with standard of GB/T, SH/T and ASTM. Our products were not only sold to various markets in China, but also launched into the markets in Russia, Germany, France and South Korea.

The company is specialized in manufacturing liquid-in-glass thermometer, glass floating meter (densitometer) and glass apparatus for petrochemical industry, with over twenty years of operating experiences. Our workers and technicians are experienced, and we have a complete range of check and inspection equipments. Our products are steady and reliable with high quality. The liquid-in-glass thermometers are produced, calibrated and checked up by products standards. The glass floating meters are produced, calibrated and checked up by products standards. The staff gauge is controlled for printing by computers, and the printed gauge is precise and clear.

We sincerely hope to cooperate with comrades and friends in the long run to realize common development.

Our philosophy is:

Development Depends on Progress in Science and Technology, Subsistence Relies on Quality.
