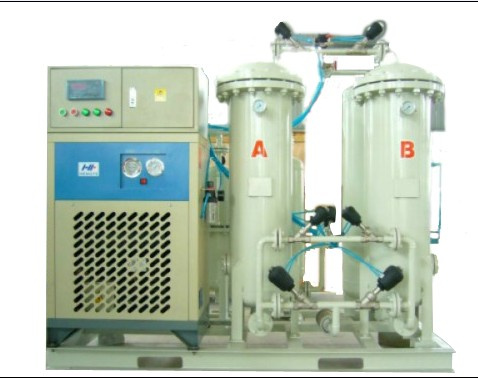

Nitrogen Generator

HTN series PSA nitrogen generator machine adapt to high-quality carbon molecular sieve as adsorption, according to PSA theorem, making up the nitrogen direct from air. Because carbon molecular sieve to the oxygen's adsorption Capacity is based on the different pressure have sharp difference. Reduce the pressure, carbon molecular sieve can be desorption of oxygen molecules, so that alternating cycles of carbon molecular sieve can be regenerated, continuous output of high-quality nitrogen.

Technical Features:
1. Perfect process design, Optimal use of results
2. Reasonable internal structures, Uniform flow distribution, reduce the airflow High-speed.
3. Unique molecular sieve protection measures, to extend the life of molecular sieve
4. Simple operation, running stability, high autoimmunization, can running without people.
5. Nitrogen emptying automatic interlock devices, to ensure product quality and nitrogen.
6. Chose nitrogen installation flow, automatic control system of purity, remote monitoring systems and so on.

Technical Data:
Nitrogen flow: 5-2500Nm3/h Nitrogen purity: 95-99.9995%
Nitrogen pressure: 0-0.7MPa Dew point: ≤ -40 Degrees Celsius(Atmospheric pressure)

Application:
PSA nitrogen making machines are applied widely in chemical industry, electron, textile process, coal, petroleum, natural gas, medicine, food, glass and machinery.
