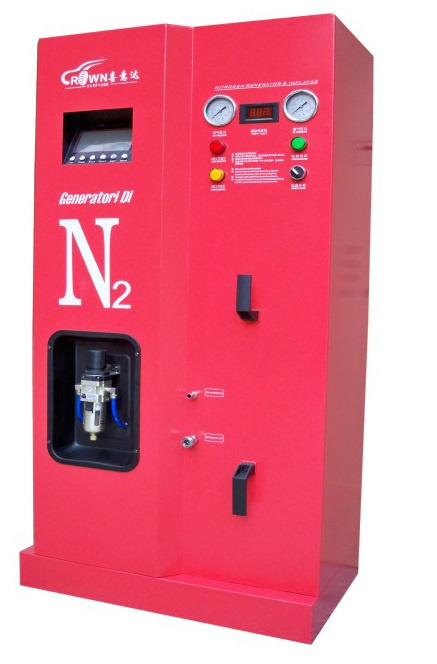

Product Name: Nitrogen Generator C-689
Suit For: Car & Light Truck
Power Supply: 110/220V± 10%, 50/60Hz
Power Consumption: 30W
Nitrogen Generated: PSA Technology
Nitrogen Purity: 95~99%
CMS: 220#CMS
Display Model: LED Display
Air Inlet Pressure: 9~10kg/cm2; 130~145PSI
Air compressor required: 5.5~7.5kw, 10kg/cm2, Exhaust volume: 0.6~1.5M3/min,
Nitrogen Outlet Pressure: 6~8kg/cm2; 85-115PSI
N2 Output Capacity: 60~70L/Min; 15.8-18.5Gallon/Min, 2.1~2.5CFM
N2 Tank Capacity: 70L/18.5Gallon inside
Measure Unit: KG/CM2 & PSI&Bar
Max. Pressure for N2 Tank: 13.5KG/CM2
Sensor Precision: 5PSI
Operating Temperature: 0-50° C, 0-122° F
Standard Accessories: One 10m length PU hoses+vacuum Generator & N2 Inflator device
Optional: High Precision Water/Oil vapour Filter, Automatic water drain-out Filter
Packing &N. W. /G. W.: 650*380*1380MM 103kgs Carton boxes or Wooden case
20ft/40ft container: 52PCS/102PCS
Specifications:
1. Generates nitrogen from your compressed air
2. 2 Pre-Filters
3. 50L/13.2gal(us)internal nitrogen storage tank
4. 1 Nos. *10m/32.8ft standard hose with 2 quick couplers to connect the unit and your inflation gun
Warranty information:
One year, accessories free but not including the Express fee
Nitrogen Generator machine work principle:
Air Compressor-----(inlet)-Crown Nitrogen Generator-(outlet Nitrogen)-----Tire
Guangzhou Crown is a specialized in Auto maintained equipment manufacture with over one decade's producing experience in China. Our main products are including: Air tire inflator mahines and Nitrogen generator for light car and truck tire.
Guangzhou Crown is located in Guangzhou Baiyun Dagang industry zone. Our products is popular in mainland of China and Africa, East of Europe, Russia, etc as we have more specialist in our R&D and Quality checked department.
Warmly welcome to visit our company if you have interesting on our products.
