Specifications
1. Produce Scale: 5~3000Nm3/h 2. Purity: 95%~99.9995%(v/v) 3. Pressure: 0.1~0.8MpaG 4. Dew point: -40degree~-60degree
Process Flow Brief Description

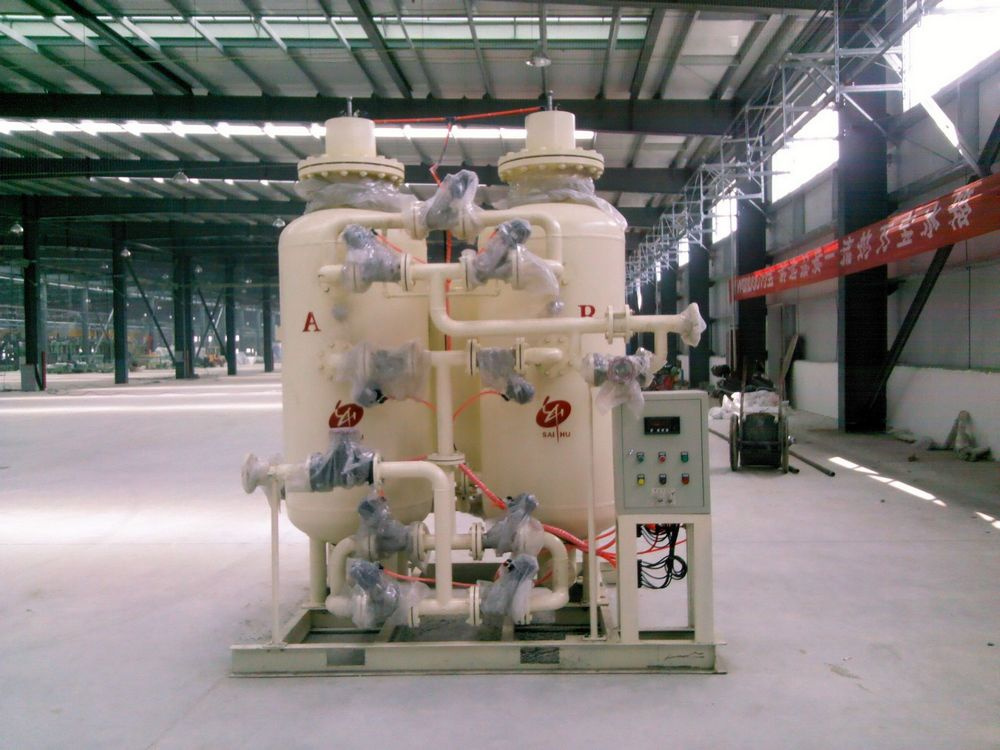

Air, after pressurized to the adsorption pressure by air compressor, is fed into adsorbers prior to passing the filtration of refrigerating dryer. The adsorbent is carbon molecular sieves. It is just making use of the property that adsorption amount of oxygen and nitrogen differs on the surface of the carbon adsorbent to adsorb O2 and desorb N2. The opening and closing of the program valves are controlled by the programmable logic controller (PLC) to complete each cycle of adsorption and desorption and then N2 is produced with the required purity. The two adsortbers are in adsorbing and desorbing alternatively to ensure N2 to be generated constantly and steadily.
Technical Features
1. It is an advanced technology with less investment.
2. The quality is reliable and both the N2 purity and quantity are stable.
3. The unit is supplied in a skid-mounted manner, which can be transported and installed easily.
4. It is full automatic control and no need for operators, easy to start-up and shutdown, simplified and convenient maintenance.
Hangzhou Saihu Air Separation Equipment Co., Ltd is a professional manufacturer producing series of air separation units: PSA nitrogen generators, PSA oxygen generators, VPSA oxygen generators, compressed air dryers, and compressed air filters etc.
With the support of a perfect management system and advanced manufacturing tools, we make constant technological improvements. We have built long-term good cooperation with many design and research institutes. Our air separation units have better and better performance.
Our company has passed ISO9001: 2008 certification. We have won many honors. The strength of our company is constantly growing.
We warmly welcome all of our customers to build win-win cooperation with us.
P. S: (1)The market share in our Made-in-China is just our estimation only, the actural one is subject to real carring out data.
(2) Technical parameter if it has changed without notice via Made-in-China.
(3) If any technical data was wrong in Made-in-China, your fast notice to Miss Lucia is appreciated always.
