Working Principle
Under certain pressure,with the use of the difference of diffusion rate between nitrogen and oxygen int air on carbon molecular sieve;oxygen molecule ins absorbed largely by the carbon molecular sieve and nitrogen molecule concentrates in gas-phase in a short time,so as to realize separation of oxygen and nitrogen.
Due to the absorption capacity of carbon molecular sieve for oxygen varies largely from different pressure,reducing the pressure can make the carbon molecular sieve release absorbed oxygen molecular and regenerate the carbon molecular sieve,so as to realize repeated recycling of it.

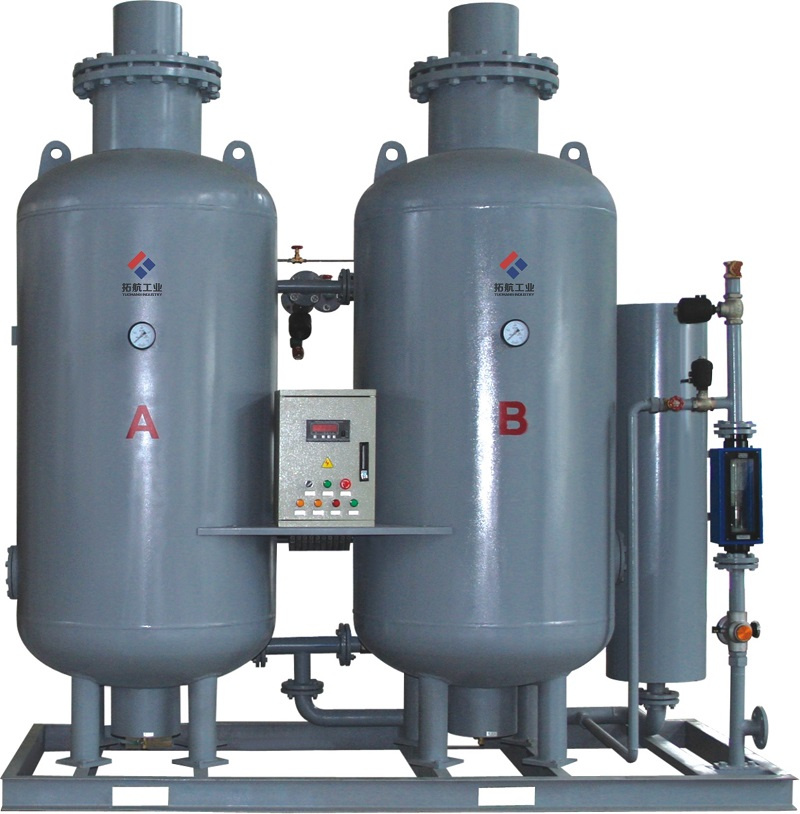

It adopts the technique of two absorption towers,whcih one tower absorbs oxygen and produces nitrogen,while another tower releases the absorbed oxygen and regenerates the carbon molecular sieve.This cyclic-alternating patten can produce high-quality nitrogen continuosly.
Technical Features
Low energy consumption,less cost,strong adaptablity,rapid nitrogen production ande adjustable purity.
Perfect technique process disign and optimal using effect.
Modular strcuture design and saving of floor space.
Convenient operation,stable performace, high atuomation and unattended operation.
Reasonable inner structure,uniform distribution of airflow,reducing of high-speed impacts of the airflow .
Unique protection measure for carbon molecular sieve extends service life of the carbon molecular sieve.
Key parts adopt the famous brand,which is the effective guarantee of the equipment quality.
Automatic venting device with national patented technology ensures quality of produced nitrogen.
It has functions of diagnosis,alarming and automatic troubleshooting for several failures.
Touch-screen display,dew point detection,energy-saving control ,DCS communication,etc.are optional.
Technical parameters
Nitrogen Flow: 5~300Nm³/h
Nitrogen Purity: 95%~99.999%
Absorbent pressure:0.5~1.2MPa
Nitrogen Pressure:0.1~0.7MPa(adjustable)
Nitrogen Dew Point:-40ºC or -60ºC
Model(THN Standard Model)
Output(Nm³/h)
Effective Air Consumption
Air Purification System
Import and Export Caliber(mm)
THN-5B
5
0.31
T-0.5
DN15
DN15
THN-10B
10
0.62
T-1
DN25
DN15
THN-20B
20
1.24
T-1.6
DN25
DN25
THN-30B
30
1.86
T-3
DN32
DN25
THN-40B
40
2.48
T-3
DN32
DN25
THN-60B
60
3.72
T-6
DN40
DN40
THN-80B
80
4.96
T-6
DN40
DN40
THN-100B
100
6.2
T-10
DN50
DN40
THN-120B
120
7.44
T-10
DN50
DN50
THN-150B
150
9.3
T-10
DN50
DN50
THN-200B
200
12.4
T-20
DN65
DN50
THN-300B
300
18.6
T-20
DN65
DN50
THN-400B
400
24.8
T-30
DN80
DN50
THN-600B
600
37.2
T-40
DN100
DN50
THN-800B
800
49.6
T-50
DN100
DN65
THN-1000B
1000
62.0
T-70
DN125
DN80
THN-1200B
1200
74.4
T-80
DN150
DN80
THN-1500B
1500
93.0
T-100
DN150
DN80
