Nitrogen Filling Plant

Nitrogen Filling Plant
Price: US $ 10000-500000/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: L/C,T/T
Work principle
Because of kinetic effect, the diffusibility of O2 and N2 are very different under certain pressure. When O2 and N2 pass carbon molecular sieve, all of the O2 are adsorption.

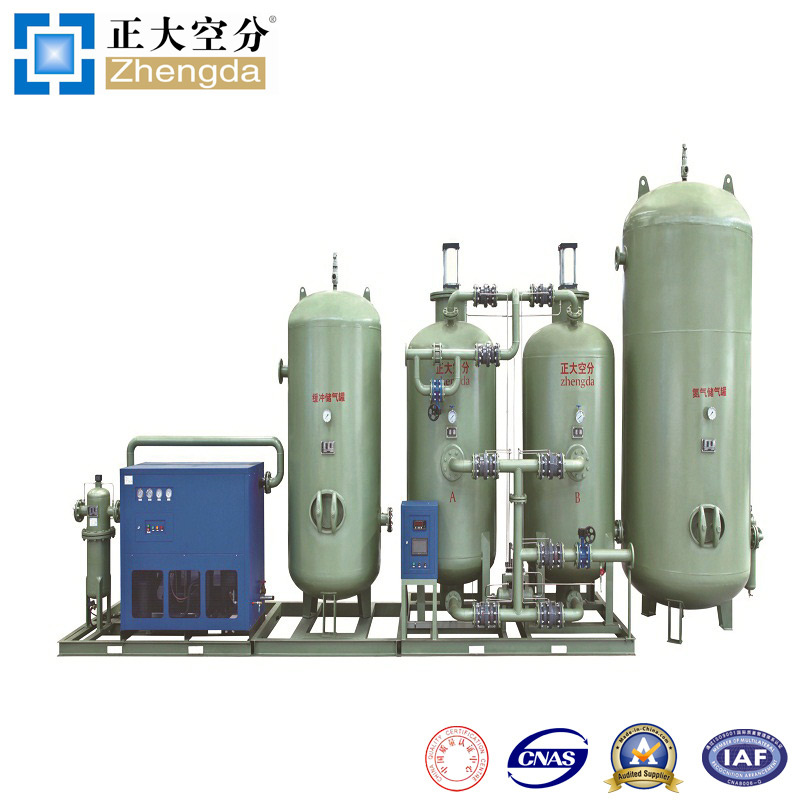

The main part of N2 generator is two towers filled with carbon molecular sieve which we called absorption tower. When the compressed air get into adsorption tower, the O2 is absorbed by carton molecular sieve. When one is used to absorption, another is used for desorption. In this circulation, we get high quality N2. Two towers alternate adsorption and regeneration to output N2 continuously.

Carbon molecular sieve's adsorption capacity of O2 can be controlled by pressure. When reduce pressure, the carbon molecular sieve can be desorption. Based on this principle, the carbon molecular sieve can be used repetition.


Technical characteristics:
·Labyrinth air-flow diffusion equipment(National Invention Patent),
·Air-distribution uniformity, upgrade molecular sieve utilization ratio.
·Unique noise-abatement equipment(National Patent)
·Blameless process designperfect usage effective. Unique molecular sieve protectionextend carbon molecular sieve's life.
·Intelligent interlocking unqualified N2 Emptying equipment, N2 quality Guarantee
·Optional: N2 capacity system, purity automatic regulating system, Remote Control System etc
·Easy to operate
·Running steadily
·High automation


Technical Data(N2 purity 99.5%)
ModelCapacityAir consumptionAir purification
systerm
Input diameterOutput diameter
NM3/hNM3/minMMMM
ZSN-550.25KJ-0.5DN15DN15
ZSN-10100.51KJ-0.5DN25DN15
ZSN-20200.97KJ-1DN25DN15
ZSN-30301.48KJ-2DN25DN25
ZSN-40401.95KJ-2DN32DN25
ZSN-60602.9KJ-3DN32DN32
ZSN-80803.9KJ-6DN40DN32
ZSN-1001004.65KJ-6DN40DN40
ZSN-1201205.45KJ-6DN40DN40
ZSN-1501506.86KJ-10DN50DN40
ZSN-2002009.12KJ-10DN50DN40
ZSN-30030013.72KJ-15DN65DN50
ZSN-40040018.42KJ-20DN65DN50
ZSN-60060027.26KJ-30DN80DN50
ZSN-80080036.19KJ-40DN100DN65
ZSN-1000100044.93KJ-50DN100DN65
ZSN-1200120054.52KJ-60DN125DN100
ZSN-1500150068.62KJ-80DN150DN100
ZSN-2000200091.65KJ-100DN150DN125
ZSN-25002500115.62KJ-130DN200DN150

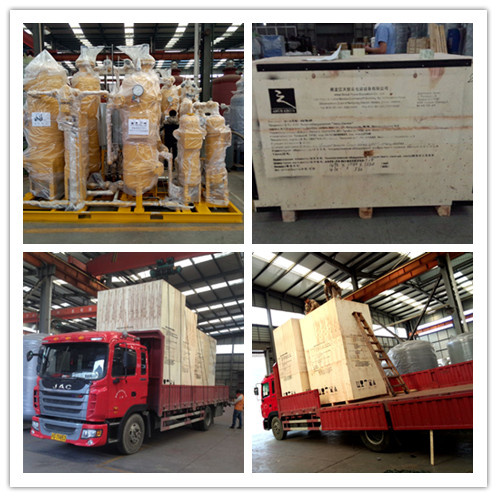

Package:

Prod Model: ZSN
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Nitrogen
Founded in 2005, located in Hangzhou, covered an area of 35000 square meters with beautiful surroundings, ZHENGDA is the biggest manufacturer in Hangzhou city Zhejiang Province specializing in nitrogen generator, oxygen generator, air compressor, dryer machine., etc.

Our products are usually used on industrial, chemical, car tyres, food, pharmaceutical, SMT, heat treatment, metal deep processing, float glass, coal mine and so on. In the past years, we cooperated with many clients in domestic and overseas. For example, CNOOC(China National Offshore Oil Corporation), CASC(China Aerospace Science and Technology Corporation), Sinopec Group, CNPC(China Petroleum), MCC, CHALCO, CARLSBERG., etc.

We pay attention to quality and understanding of performance. We can turn brilliant ideas into outstanding products and always achieve the expectation you want with the performance you need.
