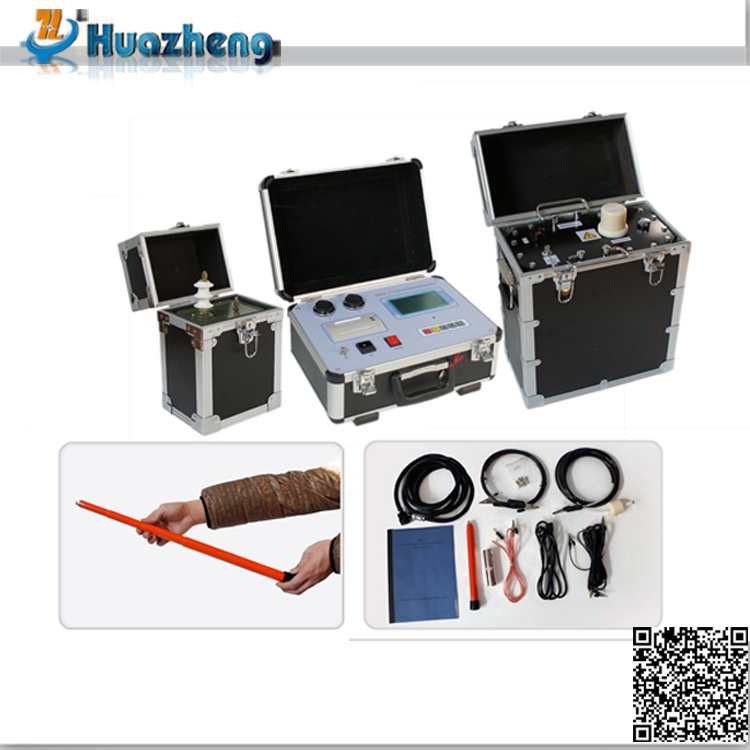

Newly Design High Voltage AC Electric Pulse VLF Generator
I. Packaging &cDelivery for Newly Design High Voltage AC Electric Pulse VLF Generator
Packaging Details: | vlf ac hipot tester standard package for low frequency generator |
Delivery Detail: | vlf ac hipot tester 7-15days after order confirmed |
II.Features of Newly Design High Voltage AC Electric Pulse VLF Generator
1,output rated voltage , 30kV
2,output frequency :0.1Hz,0.05Hz,0.02Hz.
3,loading capability :
0.1 Hz maximum 1.1µF
0.05 Hz maximum 2.2µF
0.02 Hz maximum 5.5µF
4,accuracy :± (3% of full scale +0.5 KV)
5,voltage waveform distortion :≤5%
6,emperature : -10ºC-+40ºC;humidity :≤85%RH
7,power supply :AC50 Hz,220V ±5%
III.Parameter of Newly Design High Voltage AC Electric Pulse VLF Generator
Model | Rated Voltages | Load capacity | Fuse | Weight | Useful |
VLF- 30/1.1 | 30KV (peak ) | 0.1Hz,≤1.1µF | 10A | Control :6Kg Body Boost :30Kg | 10KVCables, Generator |
0.05Hz,≤2.2µF |
0.02Hz,≤5.5µF |
Single relatively power capacity of different Generator
| Thermal Power | Hydropower |
Generator capacitance (MW) | 200 | 300 | 600 | 85 | 125-150 | 300 | 400 |
Single relatively power capacity(µF) | 0.2-0.25 | 0.18-0.26 | 0.31-0.34 | 0.69 | 1.8-1.9 | 1.7-2.5 | 2.0-2.5 |
Power capacitance of single-core XLPE insulated cable (µF/km)
| Capacity µF/Km |
Voltage (kV) | 10 | 0.15 | 0.17 | 0.18 | 0.19 | 0.21 | 0.24 | 0.26 | 0.28 | 0.32 | 0.38 | - |
35 | - | - | - | 0.11 | 0.12 | 0.13 | 0.14 | 0.15 | 0.16 | 0.17 | 0.19 |
Cross-sectional area (cm²) | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 | 240 | 270 |
IV.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
V.FAQ for Newly Design High Voltage AC Electric Pulse VLF Generator
1. Q: What is the language? After sale service? Warranty?
A.Yes,English version. After sale service. Warranty: 1 year.
2. Q: What is the highest voltage the instrument can test?
A: The instrument can test up to 100KV, OEM is also ok.
3. Q: Whether can communicate with computer , RS232?
A: Yes, it can communicate with computer. It has RS232.
4. Q: Whether does it have battery or liquid ? Convinent to delivery?
A: It has a little Li-battey , no liquid, which does not influence the delivery.
5. Q: Does this instrument have the priter ? Automatically or by hand?
A: Yes, it has, you can set up whether to print the result automatically or by hand.
6. Q: How many times can it test once? How to get the result?
A: It can test 1-6 times (according to your requirement). Result is the average of testing
times.
