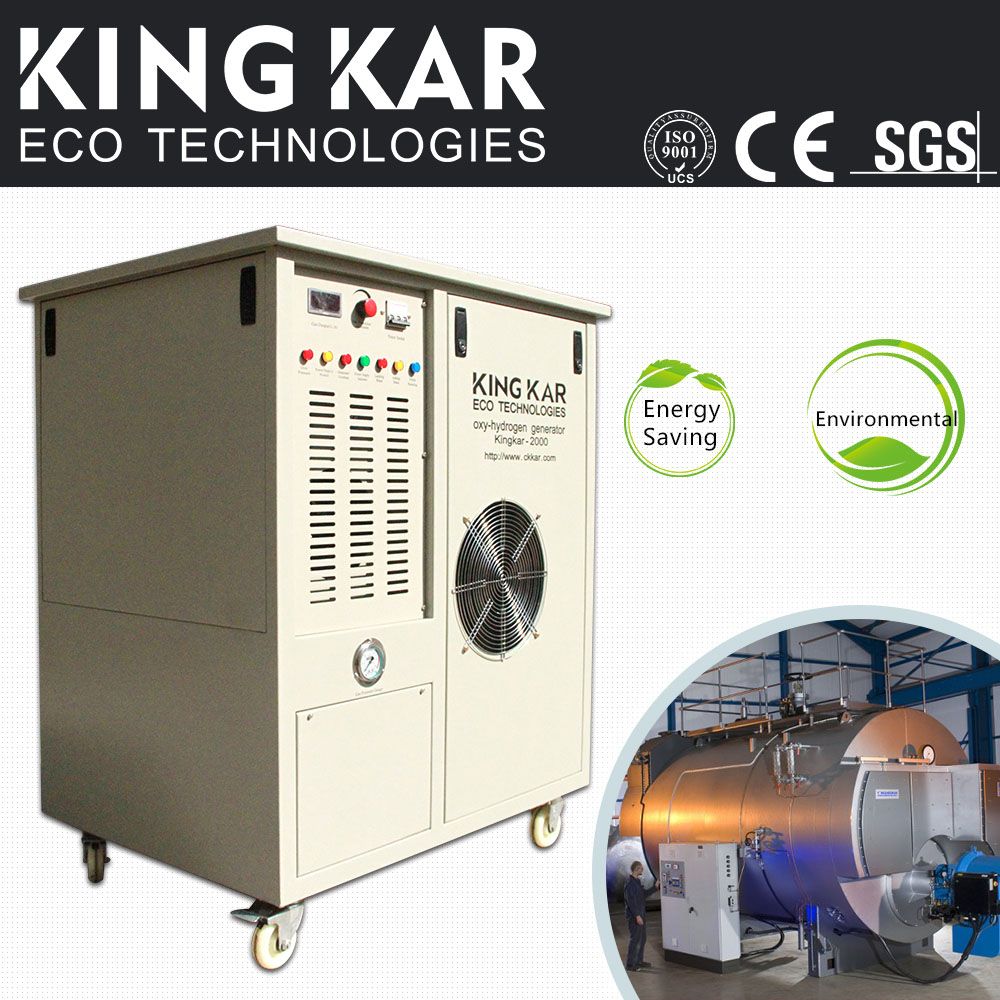

Energy Saving Oxyhydrogen Generator in boiler
Oxyhydrogen generator in boiler introduction
Water is H2O, under some circumstances, if electrolysis water, it could give out H2 and O2. Hydrogen is a quite good fuel material, in normal uses, oxygen helps hydrogen to burn into water again. Whole process is quite clean, no pollution.
Oxy-hydrogen generator just use above principle, through electrolysis water to produceH2 and O2. Main parts have: Electrolysis cell, power system, gas/water separator, cooling system, safety system, gas cleaning system, electric control systems etc. And electrolysis cell is the most important part. Our electrolysis cell is integration formed, which guarantee no liquid leakage
Gas Generator Advantages:
· Economy: It's up to 90% less expensive than acetylene in gas costs
· A Healthier Working Environment: No toxic fumes and zero emissions of carbon based emissions.
· Operational Safety: HHO Gas is light and dissipates rapidly into the atmosphere compared to acetylene, which is dense and seeks ground level.
· Environmentally Friendly: HHO Gas produces zero pollution when burning, while hydrocarbon-based fuel gases pollute the environment.
· New Applications: In addition to performing most conventional brazing, soldering and cutting operations, 2000 L/h HHO Gas Generator can be used in many exotic cutting, brazing, and fusing applications as well as glass treatment and blowing applications that cannot be performed by conventional methods and processes.
Gas generator Multi-functions:
1. Burn with other fuels together for boilers, cooking stoves, melting metals.
2. Cutting iron, stee
3. Glass & Ceramic Fabrication, Welding, Cast Iron, Fusing, Soldering, Heating, Glass, Quartz,
Technical Data Sheet of Kingkar oxy-hydrogen generator in boiler combustion:
| Model | Kingkar-3000 | Kingkar-5000 | Kingkar-7000 | Kingkar-10000 |
| Voltage(V) | 380 ±10%,50/60Hz,three phase |
| Rated capacity(KVA) | 9 | 15 | 22 | 31 |
| Working pressure(Mpa) | ≤0.2 |
| Relative humidity(%) | ≤90 |
| Rated gas output(L/H) | 3000±10% | 5000±10% | 7000±10% | 10000±10% |
| Water consumption(L/H) | 1.6 | 2.7 | 3.8 | 5.8 |
| Cooling way | Air cooling |
| Insulation class | F |
| power protection grade | IP2S |
| Flame temperature(T) | 800-3200 adjustable |
| Working medium | Filtered water or deionized water or soft water |
| Working | continuous |
| environment temperature(T) | 0-40 |
| Dimension(L×W×H)mm | 1020*770*1270 | 1250*830*1720 | 1300*930*1820 | 1500*930*1940 |
| Weight(KG) | 293 | 567 | 653 | 894 |
Thank you for visiting. Any questions, please feel free to contact us. I am Mr.Huang Renhua here.
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.
KingKar Oxy-hydrogen generator for boiler only consumes water
And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.
Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
