| Price: | US $ 10000-18000/Set |
|---|---|
| Trade Terms: | CIF,EXW,others |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Money Gram,Western Union |
| Off grid solar power supply system- SP-5KW | |||
|
System Basic Information |
Solar panel rated output power: 4KW Suitable for daily power consumption : < 16KWH Allowable max loads power : 6KW |
||
|
Solar panel |
type: mono solar panel(poly optional) Max power : 200w Vmp: 28.8V Voc: 36.4V Imp 8.3A weight: 20KG Size : 1172*983*35mm 25 years life time (CE TUV) Connect way: 4pcs panels in series as a string, 5 strings in parallel |
QTY 20pcs |
|
|
PV Array Combiner |
Model: H6T-96v Multiple PV strings inputs. Simplify wiring between PV array and controller. protections to controller Wide range of DC input voltage Reliable thunderstorm& surge protection |
QTY 1pc |

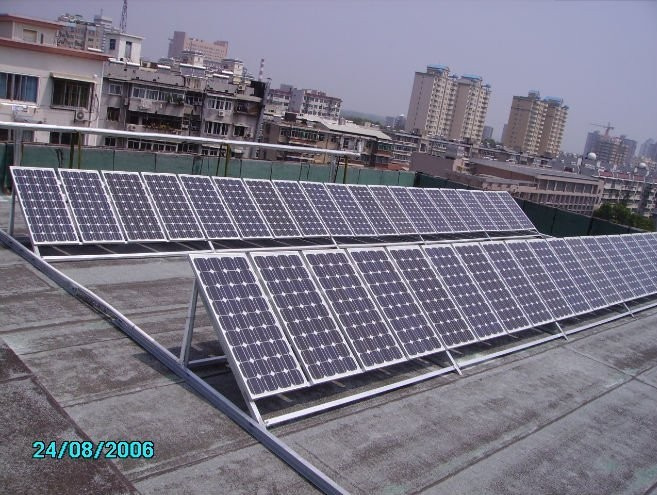

Notes: 1. pictures show are for reference. 2. power output data is based on areas with daily average peak power shine of 4.5hrs 3. the battery capacity is designed for power storage of 1.5-2 days PV output 4. solar panel rack can be specially designed based on site condition Remark: 1)solar panel have 5 years warranty; 2)other parts have 2 years warranty; 3)ship the free parts for service(best service in china) 4)Accept OEM MOQ: 1 set |
|
Hybrid solar Inverter |
Inverter power: 5kw/96v MPPT Controller model: 96v/60A Charging efficiency; 90%-95%, LCD display inverter and controller info With AC charger built in Output: 110v, 120v, 220v, 230v, 240v(optional) Product size: 470*230*560mm Weight: 49KG |
QTY 1pc |
|
|
Battery |
Capacity: 12V/200AH full sealed Solar power lead-acid battery, Service life: 5-6 years , Size: 522*238*218mm Weight: 58KG Connect way: 8 pcs connect in series as a string, 2 strings in parallel |
QTY 16pcs |
|
|
Solar panel ground rack |
Ground rack installation including complete fittings (other type of rack can be customized as per client' s requirement ) |
QTY 1set |
|
|
Cables |
10mm2 cable, (one red and one black) International standard, with specification suitable for solar system, |
QTY 100m |
|
| Prod Model: | SP1KW-SP10KW |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: | Sp-5kw |
| Capacity: | 5000W |
| Module Type: | Mono or Poly for Optional |
| Battery: | Free Mainentance Lead-Acid Battery |
| Output Voltage: | 110V/120V/220V/230V for Optional |
| Output Wave Form: | Pure Sine Wave |
| Working Time: | 24hrs |
| Solar Panel Capacity: | 200W or 250W |
| System: | Off-Grid system |
