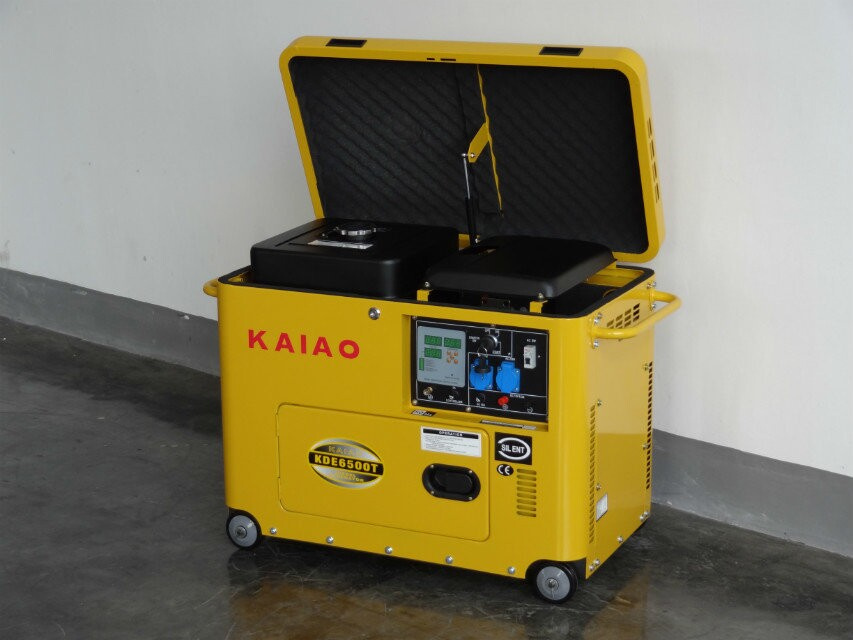

new 25L tank top open canopy silent diesel generator
This is new type.In the picture,it's one new type,using25L fuel tank.It can be opend from top,easy for maintance.
Generator KDE6700T SIMILAR kipor type
36Ah high quality battery 4wheels
| Diesel generator KDE6500T |
| Generator Model | KDE6500T |
| Frequency (Hz) | 50 | 60 |
| Output power (KVA) | 4.5 | 5 |
| Max. Power(KVA) | 5 | 5.5 |
| Voltage (V) | 115/230 | 120/240 |
| Current (A) | 39.1/19.6 | 41.7/20.8 |
| Engine speed (r/min) | 3000 | 3600 |
| Phase | Singe-phase |
| Power facter | 1 |
| Excitation system | Self-excited constant voltage |
| Noise level (7m) | DB (A): 72 |
| Fuel tank capacity (L) | 15 |
| Structure | Slient |
| Panel | Ordinary |
| Outputsocket | Two |
| Output terminal post | No |
| DC12V output | Terminal post |
| Net weight | 158 |
| Dimension(L*W*H) | 912× 532× 740 |
| Engine Model | KA186FA |
| Engine Type | Single-cylinder, vertical, air-cooled, direct injection, four-stroke |
| Bore*stroke (mm) | 86 *72 |
| Displacement (L) | 0.418 |
| Power (KW) | 5.7/3000 | 6.3/3600 |
| Fuel consumption rate (g. KW/h) | 275.1 | 281.5 |
| Compression ratio | 19 |
| Lubrication system | Spring |
| Engine starting system | Electric starter |
| Diesel oil model | Summer: 0#, winter: -10# |
| Lube oil model | SAE10W-30 (above CD grade) |
| Lube oil capacity (L) | 1.65 |
| Battery capacity(V-AH) | 12V-36Ah |
