Natural Gas Powered Generators

Natural Gas Powered Generators
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union

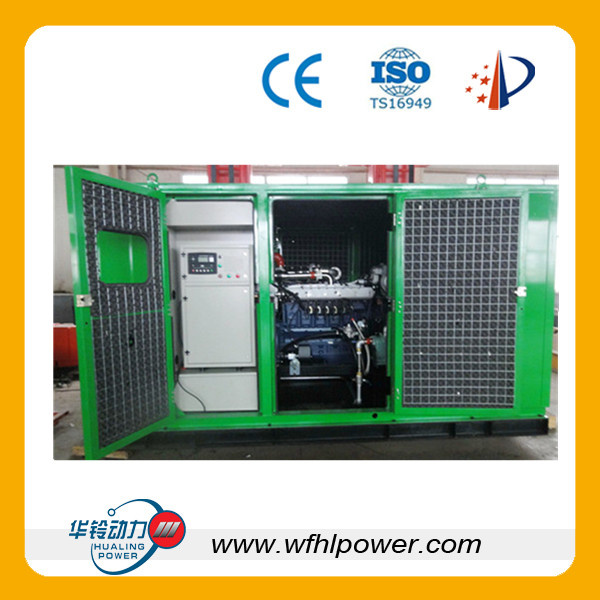

Natural gas powered generators


1.12 years manufacture experience
2. Widely used in SINOPEC and CNPC
3. Isuzu, Steyr, Cummins etc Engine with Marathon/Stamford Generator
4. Certificate: ISO, CE

Natural Gas Generators Specifitions

Genset model

HL

Type

open/sound proof/weather proof

Genset output power range

10kw-1000kw

Rated voltage

220/380V,230/400V,240/415V,120/240V

Frequency

50/60HZ

Power factor

0.8

Rated speed

1500/1800rpm

output type

AC three phase/single phase

Motor

brushless

Frequency

<3%

Frequency at stable state:

<0.5%

Frequency deviation at instantaneous state

≤+10%

Frequency return time

≤3s

Voltage deviation at stable state

≤±1%

Voltage deviation at instantaneous state

≤+20%

Voltage return time

≤4s

Voltage modulation

≤0.3%

Engine Specitions

Engine type

ISUZU, CUMMINS, STEYR

Engine Output

10kw -1100kw

Norminal speed

1500/1800RPM

Number of cylinder

4.6.12

Oil recommended (natural gas)

<0.22 m3/kw@h

Oil recommended (biogas)

CE class

Lube oil filling quantity

min. 19 l, max. 22 l

Max. lube oil consumption

0,4-0,6 g/kWh

Compression ratio

11.5:1

Ignition point

1-5-3-6-2-4

Engine weight (dry)

200-1200KG

Alternator specifitions



Synchronous alternator

Marthon .Stamford

Nominal apparent power

10kw -800kw

Nominal active power

10kw -800kw

Nominal voltage

400/231 VAC, 50 Hz

Harmonic distortion (no load/ linear balanced load

<1.8% / < 5%

Dir. axis transient (X′d)

11,0%

Dir. axis subtransient (X"d)

6,6%

Quad. axis subtransient (X"q)

7,2%

Transient time constant (T′d)     100 ms

100 ms

Sub-transtime constant (T"d)

10 ms

Generator weight

120KG-1200KG

Bearing number

1&2
Prod Model: HLD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gas Source: Natural Gas
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.

The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.

We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.

Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
