CE approved Natural Gas Generator 10kw - 5MW Natural Gas Power Plant
Kinds of gas generators for natural gas, biomass, biogas coal bed methane (CBM), associated gas and syngas as well as diesel generators are all produced by us.
Natural gas generator specification and parameters:
Rated Power: 500 KW ( 625KVA)
Power factor: 0.8
Rated Voltage and Rated Frequency: 400V/230V, 50/60HZ
Voltage Stabilized Regulation: ≤ ± 1.5%
Frequency Fluctuation Ratio: ≤ ± 1%
Insulation Class: H
Fuel: Natural Gas (CNG,LPG), oilfield associated gas
Natural gas generator required gas condition:
Within 1meter from gas intake valve of generator
1. The ratio of methane(CH4) in natural gas ≥ 70%
2. Pressure of natural gas 80 ~ 200kpa, pressure changing rate ≤ 1kpa/min
3. H2S ≤ 20mg/Nm3
4. Moisture content ≤ 40g/Nm3
5. Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
Cutting - edge of our natural gas generator
1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality
3.Expansion fitting combined with shrinking fitting give high tightness to the system4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.
Service form us:
1. Installation and maintaining service abroad
2. Best sale service for machine using time
3.CE, ISO14001:2004 certificate
4. Turnkey project with CHP/CCHP system and recovery system of exhaust heat
Natural Gas Generator supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Optional part---Silent canopy for natural gas generator :
Suitable to installation in narrow place and place with strict demand for noise, like: factory, school,hotel, restaurant and residential area,etc.
Features of generator silent canopy:
1.Regular low noise control within 75dB(A) ( at 7 meters), super low noise with in 70 dB(A)(at 7 meters)
2. Double layers bottom frame with shock absorbing device.The oil tank, battery and muffler are assembled together. Easy to deliver and install.
3.Glass window and emergency button to make it easier to operate and inspect the working situation of generator.
Automatic control system for natural gas generator
1.Manual control panel:
2.Long distance control system:
3.Automatic control panel and automatic loading switch:
FAQ:
1.How to choose the right model? A: It depends on real output power, Voltage, Frequency and gas type.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce1.5-3.0kw/h power.
The capacity depends on gas energy.
E.g 1.0 Cubic meter natural gas produce about 3.0kw/h
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. But, a set of spare parts will be shipped together with machine free.
5. How is the service?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.

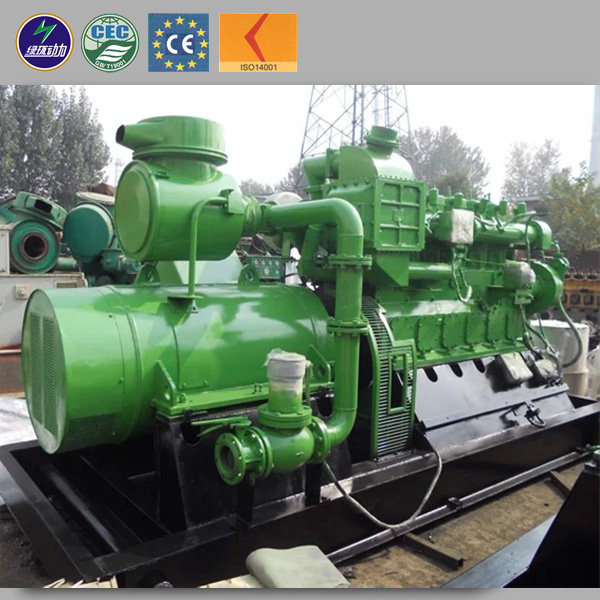

Natural Gas Generator parameter
Model Number | LHNG500 |
| Brand Name | Lvhuan |
| Rated Power/Output power | 500KW/400kw |
| Rated Speed | 1000/1200 rpm |
| Rated Frequency | 50 /60 Hz |
| Applied Voltage/ rated voltage | 220v / 380V - 230V / 400V |
| Phase | AC 3 phase 4 wire |
| Starting system | 24V electric motor |
| Cooling method | Circulating water cooling |
| Lubricant method | pressure and splash |
| Power Factor | 0.8 lagging |
| Voltage Stability | ≤±2% |
| Voltage Transient | ≤±10% |
| Voltage Stable time | ≤1 s |
| Cylinder No., diameters and stroke | 12 pcs 190mm, 210mm |
| Voltage regulation mode | automatic |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
