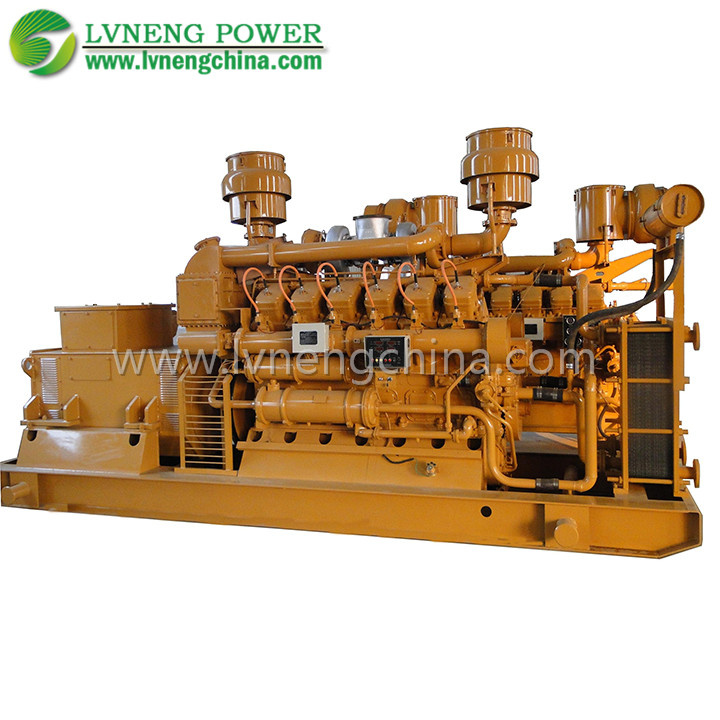

Green Power Genset 600kw Natural Gas Generator for Big Power Plant for Petroleum Chemical Plant
Natural gas engine generator general description:
This type of generator is choose gas as power. Gas will be burned directly inside of engine's cylinders, then give machinery force to alternator to produce electricity power. There are mainly 3 parts on one generator set: gas engine,alternator and radiator. The generated power can be connect to national grid, or for daily use and industrial use.
Natural gas engine generator simple description:
Manufacturer supply
Capacity: 3.0-4.0kw/h per Cubic meter gas
Power supply range:10KW-1100kw
More than 1 set can be parallelled
Continuous power supply range: 8-880kw
Standard componient and assembly
Multi-option of control panel
With CE and ISO certificate
Natural gas generator specification:
Natural gas generator list |
Genset Mode | Prime power | Continuous power | Engine Mode | Displacement |
LNNG10 | 10kw | 8kw | LN2100 | 1.80L |
LNNG20 | 20kw | 16kw | LN4100 | 3.61L |
LNNG30 | 30kw | 24KW | LN4105 | 4.32L |
LNNG40 | 40KW | 32KW | LN6105 | 6.45L |
LNNG50 | 50KW | 40KW | LN4135 | 8.58L |
LNNG60 | 60KW | 48KW | LN4135 | 8.58L |
LNNG70 | 70KW | 56KW | LN6135 | 12.8L |
LNNG80 | 80KW | 64KW | LN6135 | 12.8L |
LNNG90 | 90KW | 72KW | LN6135 | 12.8L |
LNNG100 | 100KW | 80KW | LN6135 | 12.8L |
LNNG120 | 120KW | 96KW | LN12V135 | 25.75L |
LNNG140 | 140KW | 115KW | LN12V135 | 25.76L |
LNNG150 | 150KW | 120KW | LN12V135 | 25.75L |
LNNG180 | 180KW | 144KW | LN12V135 | 25.75L |
LNNG200 | 200KW | 160KW | LN12V135 | 25.75L |
LNNG250 | 250KW | 200KW | LN12V190 | 35.75L |
LNNG300 | 300KW | 240KW | LN12V190 | 35.75L |
LNNG350 | 350KW | 280KW | LN12V190 | 35.75L |
LNNG400 | 400KW | 320KW | LN12V190 | 71.45L |
LNNG500 | 500KW | 400KW | LN12V190 | 71.45L |
LNNG600 | 600KW | 480KW | LN12V190 | 71.45L |
Parameter of natural gas generator |
Rate Voltage | 400V/230V |
Phase | 3Phase 4 wires |
Rate Frequency | 50HZ/60HZ |
Power Factor | 0.8 |
Voltage Regulating Range | 95%-105% |
Voltage Steady State | ≤±2% |
Voltage Transient State | ≤±10% |
Voltage Settling | ≤1S |
Voltage Volatility | ≤±0.5% |
Frequency Steady State Regulation Rate | ≤0.5% |
Frequency Transient State Regulation Rate | ≤±10% |
Heat Consumption | 9.8mj/kw.h |
Pressure | 5-20kpa |
Intake Mode | Natural intake |
Sparking Mode | Sparking plug |
Voltage Regulation Mode | automatic |
Speed Regulation Mode | Electronic speed regulation |
Lubricating Mode | Pressure and splash |
Cooling Mode | Closed/open circulating water cooling |
Starting Mode | 24V electric motor |
Overhaul Time | ≥20000h |
Noise | ≤105aB(A) |
Exhaust Temperature | ≤650°C |
Machine supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Full automatic system for optional: ATS for automatic switch form national grid power to generated power, double direction.
Low voltage cables between generator set and control room: available if needed.
Features of our biomass generator:
1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality, Eg. Siemens,Standard, Stamford.
3.Expansion fitting combined with shrinking fitting give high tightness to the system.
4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.
FAQ:
1.How to choose the right model?
A: It depends on continuous output power, Voltage, Frequency and fuel type. Please tell me what fuel (natural gas, biogas, biomass gas,wood syngas, methane,coal gas) or raw material(like wood, grass, nutshell and so on) The right model of generator will be recommend soon.
Me and our engineers are always available at your service.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce 1.5-3.0kw/h power. The capacity depends on gas energy(Kcal). E.g 1.0 Cubic meter natural gas produce about 3.0-4.0kw/h
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish. We offer manual for weekly, monthly and overhaul maintenance.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. What's more, a set of spare parts will be shipped together with generator set free of charge.
5. How is the after sale service and maintenance?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
6. What products we offer?
Biomass gasifier,Biomass/syngas generator,biogas generator,Natural gas(CNG,LNG) / methane generator,Coal gas generator,Diesel generator.
Generators can parallel together to form large power, E.g. 5 sets 400kw biomass generator form 2000kw biomass generator system.
Our Services :
1.Pre-sale service:
A.Our engineers are available for onsite prospect before installation free to charge.
B. Foundation drawing and detailed Dimension free form us.
2.In-sale service:
A. Onsite overall guide installation,operation and maintenance training .
B. Assistance and instruction of trial running.
3.After-sale service:
A. 24 hours online or in person after sale service.
B.12 months warranty. We take care of all errors/breakdowns in this period.
4.Spare parts service:
A.All spares parts on our gensets supplied by us.
B. Free spare parts together with genset when shipping.
Please feel free to ask question and quotation.
JiNan LVNENG POWER MACHINERY EQUIPMENT Co., Ltd was founded in July, 2009. It's located in high-tech development zone in the east of Jinan city with advantageous geographical position and good transport facilities The Company owns two factory regions research and production, with more than 150 staffs in company. And twenty of them are high-level technical talented person We own developed production line, impeccable quality test system and professional sale and service-after-sell team, and our company is committed to research production marketing and after-sale service of synthesis firm. With our excellent quality product and perfect after-sale service, we won praises and approbation from our customers.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. And our main products are kinds of diesel engines, diesel generator and fuel gas generator, including natural gas generator methane gas generator straw gas generator biomass gas generator sets coal gas generator, coke oven gas generator sets, Mobile power station(Mobile trailer series), Static-speaker unit, Diesel engine and diesel generator sets etc.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
All large, medium and small power products can be produced and the power performance, economical efficiency and reliability are all in the advanced level of this field, with the improvement of R & D department, Our Company install the valve seal and exhaust temperature meter for the products which are out form company, really save fuel consumption/automatic temperature control. For the vast number of users to save a lot of cost, has been widely praised by users
JiNan LVNENG POWER MACHINERY EQUIPMENT CO, . Ltd persist in scientific and technological innovation manage Innovation development direction Always insist on customer-first Business ideas of Mutual benefit, insist on Energy saving and environmental protection Safe and reliable quality policy Insist on fast\Exquisite Standard Service tenet. Inherit" Quality is the first, credit as prerequisite" as Core concept, constantly creating greater value for customers, Promoting sustained and healthy development of the company
"LVNENG, Dedication power \Pursuit excellence" A broad application market, quality products, quality and service will be our cooperation to build a good platform. Join hands with LVNENG success-together. Looking forward to Look forward to working with you.
