Detailed Product Description

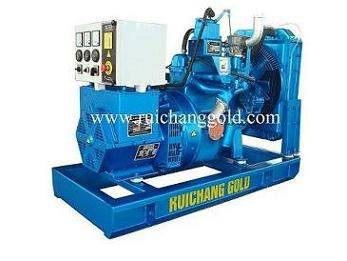

Standard Configuration of Natural Gas Generating Set:
Engine: Ruichang (China brand)
1, water cooling, 4 stroke
2, ratiation with water tank & fan & safe guard
Alternator: Stamford/Marathon (Made in China )
1, single bearing, 4pole and self excited brushless.
2, insulation --H class, Protection -- IP22 (IP23 in marine)
3, AVR(auto voltage regulation)
Control System: Key starting, Auto control panel, Remote control panel, ATS(Auto transfer switch)
D. G. Set Performence of Natural Gas Generating Set:
1) Water cooled inside --closed circle water cooling system.
2) Compressed air to start.
3) Standard voltage is 400/230V and the rated frquency 50Hz, with R. P. M 1500, 3pha & 4wire contected. (60Hz can be provided according to your special requests...)
4) Completed parameter display, all in English languge, with perfect protection and control function. Low water alarm, high gas temperature, low oil pressure and high water temperature protection alarm are all installed...
6) Independantly over-load protection, automatically emergency stop in abnormal situation, unique sensors protection, adapt to all sensors...
7) Stainless steel base with vibration pad. Blue color, package: Plastic wraped or wooden case.
8) Noise-proof, exhaust silencer...
9) Documents can be submited: Installation & maitenance instruction, operation's manual, quality certificate and ex-factory testing report...
Requirements to Natural gas:
Thermal Value 41860 KJ/m3, CH4 >=85% (By Volume), S<=460 mg/m3, H2S <= 20 mg/m3
Gas Pressure: 80--200kpa (mounded by pressure-reduced separated surge tank)
Gas should be exact dry after processed and dirty mixed on the gas should be less than 0.005 mm, dirty contents should be not larger than 0.03 mg/m3, Standard condition of natural gas volumes must be 101.3 kpa, 20
Optional of Natural Gas Generating Set:
Exhaust pipe, flexible pipe, muffler, charge battery, daily used fuel oil tank and so on.
Ruichang Gold Generating Equipment (Wuxi) Manufacturing Co., Ltd., established in 1982, is a manufacturer of a wide variety of diesel generator sets and portable power supplies. We are able to offer high quality diesel generator sets with imported engines, trailer-mounted power stations, mobile and container power stations, and even bunker power generator sets.
Our products are suitable for such industries as defense, telecommunications, transportation and natural resources. Additionally, buildings including hospitals, banks, and offices may use our power stations as either a mobile or stationary backup power supply. We accept special orders from clients and are able to meet all kinds of special technical requirements.
As a Sino-foreign joint-venture (Ruichang Gold Co., Ltd. Hong Kong and Wuxi Ruichang Electro Equipment Plant), we aim for the highest quality standards. We are ISO9001 certified and our products are manufactured according to strict internal quality control standards.
Our company principle is "Customers and credibility first" and always provide superior services and free consultation. Whether your inquiries are regarding product selection, systems integration, generator room designs or other technical details we will be happy to assist you with your needs.
We welcome both new and existing customers to come take a look at our current lineup and hope that you will choose our brand of competitively priced quality products. Please contact us for further details and we will promptly answer any questions you may have.
