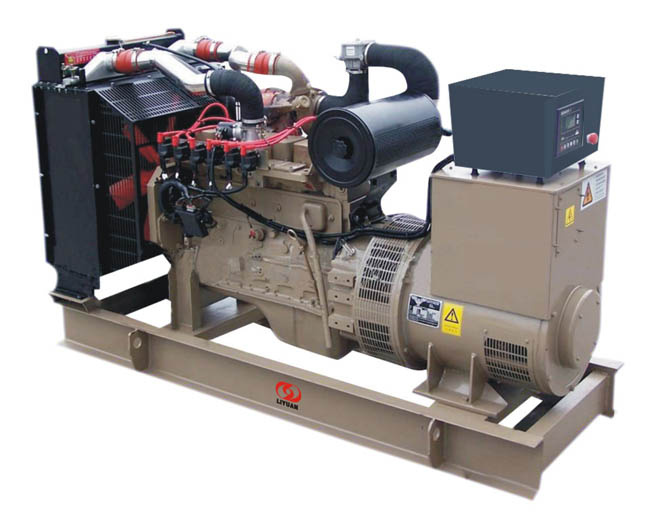

Natural Gas Generator
| Price: |
Negotiable |
| Min Order: |
1 |
Place of Origin: Yichun, Jiangxi
1. Frequency: 50Hz (400/230V)
2. Fuel type: CNG
3. Fuel consumption(m3/kwh): 0.3-0.35
4. Cylinder: 4L-12V
5. Bore(mm): 91mm-159mm
6. Stroke(mm): 86L-159L
7. Displacement: 2.24-37.8mm
8. NoisedB(A)(7m): 75-102dB(A)
9. Packing detail: Wooden case
Note:
1. The specifications above is applicable to such Diesel Genset: 50Hz/1500rpm(Frequency), 400/230V, 0.8(Power Factor, lagging), Four Wire, Three Phase.
If you need Genset with 60Hz as the Frequency or with other special voltage class requirement, Please contact us for the technical data.
2. The data is for CNG Genset, if you need the data of the Biogas Genset or other kind of gas genset, please contact us.
|
Genset Model |
Stand by power(KW/KVA) |
Prime power (KW/KVA) |
cylinder(L) |
Bore(mm) |
Dis.(L) |
Weight(kg) |
L*W*H(MM) |
|
LY17NG |
17/21 |
15/19 |
4 |
91 |
2.24 |
530 |
1500*620*940 |
|
LY22NG |
22/27.5 |
20/25 |
4 |
102 |
3.9 |
800 |
1600*750*1300 |
|
LY28NG |
28/35 |
25/31 |
4 |
102 |
3.72 |
800 |
1600*750*1300 |
|
LY33NG |
33/41 |
30/38 |
4 |
102 |
3.9 |
840 |
1680*750*1300 |
|
LY50NG |
50/62.5 |
45/56 |
4 |
102 |
3.6 |
880 |
1850*750*1300 |
|
LY82NG |
82/102.5 |
75/94 |
6 |
102 |
5.9 |
1056 |
2200*800*1300 |
|
LY105NG |
105/131 |
95/119 |
6 |
102 |
5.9 |
1080 |
2200*800*1300 |
|
LY120NG |
120/150 |
110/138 |
6 |
102 |
5.9 |
1200 |
2280*855*1450 |
|
LY132NG |
132/165 |
120/150 |
6 |
114 |
8.3 |
1400 |
2350*850*1450 |
|
LY176NG |
176/220 |
160/200 |
6 |
114 |
8.3 |
1700 |
2500*950*1550 |
|
LY200NG |
200/250 |
180/225 |
6 |
114 |
8.3 |
2000 |
2700*1000*1600 |
|
LY240NG |
240/300 |
220/275 |
6 |
114 |
8.3 |
2200 |
2800*1000*1600 |
|
LY260NG |
260/325 |
240/300 |
6 |
140 |
14 |
2550 |
3100*1060*1900 |
|
LY275NG |
275/344 |
250/313 |
6 |
140 |
14 |
2600 |
3100*1060*1900 |
|
LY355NG |
355/444 |
320/400 |
6 |
140 |
14 |
3050 |
3300*1090*1850 |
|
LY550NG |
550/688 |
500/625 |
6 |
159 |
18.9 |
4400 |
3600*1500*2100 |
|
LY1120NG |
1120/1400 |
1000/1250 |
12 |
159 |
37.8 |
9800 |
5400*1830*2650 |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Gas Source: |
Natural Gas |
GAS Genset:
Yichun Liyuan Power Science& Technology Co., Ltd cooperated with Jiaxing Lixun Automotive Electric Co., Ltd (held by SNEN) in the development and designation of Gas Genset for many years and achieved fruitful results. We developed the gas controlling system ECM of the NG Engine which is of intellectual property. The system solved the technique problems such as thermal conversion efficiency, lean-burn, boost controller and so on. We reformed Petrol Engine or Diesel Engine engines into NG Genset and kept the power of engine as the same as before or even improved. Our technique is world class and we can satisfy different needs of customers. At the same time, we could control the displacement in accordance to Europe III\Europe IV standards. We developed a series Gas Genset, including Multi-Fuel Home Silent Power Supply, NG Genset, Petrol and Gas Dual Fuel Genset, Biogas and Biomass Genset, etc. The power scope of the genset is from 8KW to 1000KW, which could be widely used as emergency standby power supply or regular power supply in normal residential area, firms, oil lands, diggings, swine farms, etc.
We used controlling system, new noise reduction material and advanced processing in the Multi-fuel Home Silent Power Supply gas to lower the noise to be below 70dB (A) for indoor usage and make it possible to use CNG, LNG, LPG, PET as fuel. Economical and environmental as the Genset is, it is the first choice of emergency power supply or regular power supply for villa, residential area, and super market.
Diesel Genset:
The Diesel Genset provided by Yichun Liyuan Power Science&Technology Co., Ltd is made up by well-known brand engine assort with international famous brand generator in order to make the whole performance optimized. The brand of the engine includes CUMMINS, DOOSAN, YANMAR, WUDONG, LOVOL, DEUTZ and YANGDONG; And for the generators, they are alternators from MARATHON, STAMFORD, LEROY-SOMER, ENGGA and ELANTRA. The power scope of the Diesel Genset is from 5KW-1600KW and the frequency is 50Hz and 60Hz, which could satisfy the needs of different customers. At the same time, we could offer the customers with Silenced Unit, Trailer Mobile Power Station, Car Emergency Power Supply, Container Type Genset and other special genset type. Our Diesel Genset is widely used as emergency or regular power supply in factories, residential area, diggings, oil drilling places, military projects, railway, generating stations, bunders, ships and other places with high power consumption.
Besides the Diesel Genset, Yichun Liyuan Power Science&Technology Co., Ltd could also provide the assorted fuel tank, dual power automatic conversion cabinet, doubling cabinet, low-voltage distribution cabinet or other assorted equipment for the Diesel Genset. We also supply with a series of service such as foresale power selecting, engine room designation, guidance of the installation and debugging, voice reduction project, low-voltage distribution and cable engineering, aftersale service, unit maintenance and so on.
