Parameters

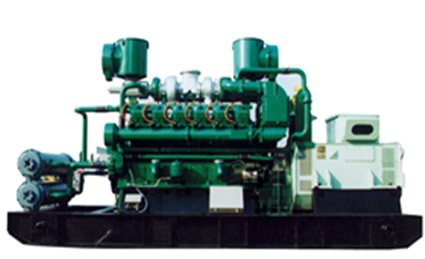

500SG1-RT
500SG1-PT
500SG1-PWT
Engine Model: T12V190ZLD-2
Alternator Model: TF454-6 / 1FC6 454-6LA42-Z
Control Panel: PCK1-RB500 / PCK1-RZ500
Rated Power (Kw): 500
Rated Current (A): 902
Rated Voltage (V): 400
Rated Power Factor COSΦ : 0.8(Lagging)
Rated Frequency Hz: 50
Heat Consumption MJ/kW@h: 11.2
Efficiency %: 32%
Starting Mode: 24V DC
Controlling Mode: Manual
Voltage Regulation Method: Automatic
Speed Regulating Method: Electronic
Exciting Mode: Brushless
Phase and Connection: Three Phase Four Wire
Capacity of Oil Sump (L): 180
Connecting method: Flexible Coupling
Cooling Method
Open Type (HeatExchanger)
Closed Type(Radiatorwith blower fan)
Open Type
(Radiator with multi-fan)
Dimensions (L× B× H) mm× Mm× Mm
5357× 1970× 2690
5800× 1970× 2698
5357× 1970× 2690
Weight kg: 12500
Overhaul Period (h): 25000
We are Shanghai Guangzhou Power&Pump Co., Ltd, as a subsidiary company of Shanghai Guangzhou Co., Ltd. We are specialized in designing and manufacturing of green energy power, dual fuel generator set, diesel generator set, gasoline generator, lpg generator, portable generator and water pump. Green energy power series include natural gas generator set( CNG genset), biogas generator set etc. We produce a variety of the diesel generator sets, including open-type gensets, sound-proof generators, trailer generators, container generator sets, mobile-power stations, and more. For several years' development, we have had two OEM factories covering total area of 80, 000 sq. M and have established the reputation in the market to supply power solutions for various applications with a broad range in power capacities.
As a result of our product quality, reasonable prices, and considerate service, our M-series diesel generator sets are taking a larger and larger market share in Africa, the Middle East and South East Asia, South America and Europe.
We are striding forward to sustaining at the forefront of domestic and global market for power solutions in an upgrading power range in terms of performance, quality and services.
