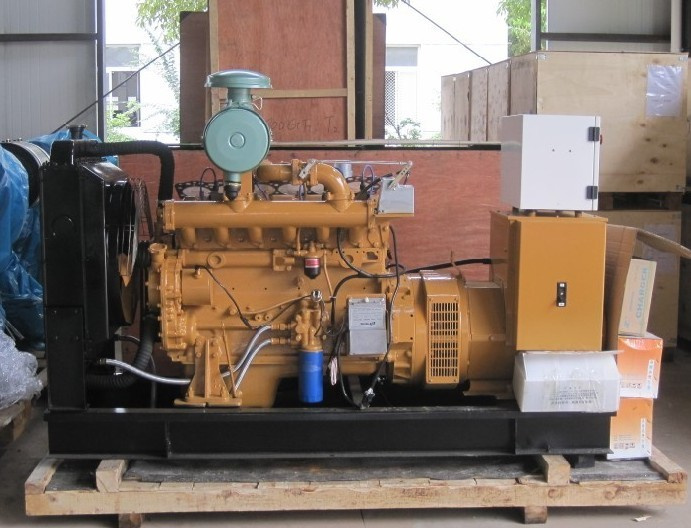

Specification for 45KW/56kVA Natural gas generator set
Model: R-56Q
Engine: D4105ZDT
Alternator: Stamford UCI224F
Power CONT. (KW): 45
Speed(r/min): 1500
Frequency: 50Hz
1, single bearing, 4pole and self excited brushless.
2, insulation --H class, Protection -- IP22 (IP23 in marine)
3, AVR(auto voltage regulation)
Control System: Key starting, Auto control panel,
Natural Gas Generator Set Performence:
1) Water cooled inside --closed circle water cooling system.
2) Compressed air to start.
Natural gas generator- power range: 5kw-1000kw, 50Hz, 1500RPM,
Rated voltage: 400/230V, power factor=0.8 lag, connecting method: 3 phase & 4 wires
Engine: RCG Power, alternator: Stamford
60Hz, 1800RPM natural gas generator will be supplied according to the requirement of customers.
The gas should be treated without liquid, the size of impurity in the gas should be smaller than 0.005mm, and the content should be no more than 0.03G3.
Gas volume condition: 101.3 kpa, 20 degree.
|
RC brand natural gas generator adopts RC series gas engine with Stamford or Siemens alternator. It is with compact design, reliable function, easy installation & operation. It can be widely used in the areas rich in gas, like oil exploitation, pump station, gas station and small power station. |
|
|
Genset model |
Genset Rating |
Gas engine model |
Alternator model |
No. of Cylinder |
100% Consumption (m 3 /hr) |
Intake pressure
(kpa) |
Open-type |
|
|
kVA |
kW |
RUICHANG |
STAMFORD/ SIEMENS |
Dimension
(L×W×H)(mm) |
Net weight (kg) |
|
|
|
|
R-56Q |
56 |
45 |
D4105ZDT |
UCI224F (STAMFORD) |
4L |
15 |
80-200 |
2000×750×1400 |
900 |
|
|
R-88Q |
88 |
70 |
D6105ZLDT |
UCI274C (STAMFORD) |
6L |
23 |
80-200 |
2300×850×1700 |
1500 |
|
|
R-100Q |
100 |
80 |
S6126DT |
UCI274C (STAMFORD) |
6L |
26 |
80-200 |
2300×850×1700 |
1800 |
|
|
R-125Q |
125 |
100 |
S6126ZLDT |
UCI274E (STAMFORD) |
6L |
33 |
80-200 |
2750×1000×1700 |
2200 |
|
|
R-150Q |
150 |
120 |
C6114AZLDT |
UCI274F (STAMFORD) |
6L |
40 |
80-200 |
2550×1000×1700 |
1900 |
|
|
R-250Q |
250 |
200 |
C6140ZLDT |
UCDI274K (STAMFORD) |
6L |
66 |
80-200 |
3300×1150×1900 |
2800 |
|
|
R-375Q |
375 |
300 |
V6144ZLDT |
HCI444FS (STAMFORD) |
6L |
99 |
80-200 |
3500×1420×2220 |
4800 |
|
|
R-500Q |
500 |
400 |
12V190DT2-2 |
1FC series (SIEMENS technology) |
12V |
132 |
80-200 |
6470×2200×2777 |
13800 |
|
|
R-625Q |
625 |
500 |
12V190ZDT-2 |
1FC series (SIEMENS technology) |
12V |
165 |
80-200 |
6470×2200×2777 |
13800 |
|
|
R-1250Q |
1250 |
1000 |
H16V190ZLT-2 |
1FC series (SIEMENS technology) |
16V |
330 |
80-200 |
7800×2400×3200 |
22000 |
|
All natural gas generators are 50Hz, rated voltage 400/230V, power factor 0.8(lagging), 3 phase & 4 wire.
Any update information is subject to the change from RCG POWER CO without notice.
Requirement of Natural Gas Quality:
Gas thermal value: ≥41.86 MJ/m3 CH4: ≥85%(Volume Percentage); S: ≤460 mg/m3;
H2S: ≤20 mg/m3; Gas pressure: 80-200kpa;
The gas should be treated without liquid. The size of impurity in the gas should be smaller than 0.005mm, and the content should be no more than 0.03 mg/m3;
Note: Gas volume condition: 101.3 kPa; 20°C. |
|
