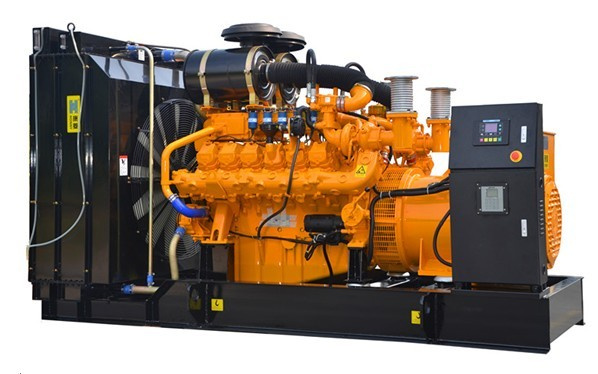

Natural Gas/Biogas Generators

Natural Gas/Biogas Generators
Price: US $ 10500/Set
Trade Terms: FOB,EXW,CIF
Min Order: 1/Piece
Pay Type: L/C
USA Googol will be emphasis on producing big horsepower engine with the developing direction on environmental type and save energy type.We will lead the developing and keep advantage in engine filed in China, and also we will follow the top level with the world technique.Our products will be mainly used for power generator set, construction, marine ship, kinds of industry usage.

Googol Engine Feature

All Engines will be 4 cycle stroke, P780 series is 6 cylinder in line P890/1120/1340/1780 series will be V-type 8/10/12/16 cylinder,Q2160/3240/4320/5400 series will be V-type 8/12/16/20 cylinder Turbocharged and water-air / air-air intercooler technology Smaller size, lower weight
1, Cylinder Block
High quality alloy cast iron for rigidity performance and good stability with the feature for reducing engine working vibration and noise.Wet cylinder liner with good cooling effect and work performance, more easy to replaced.

2.Crankshaft- Steel
Robust and fully balanced crankshaft design by integral forging for a more steadily and higher strength and longer working life.The main bearing is produced by world leading quaternary spray coating process with long life and reliability.

3.Connect rod
Connect rod is made by advantage up broken type process with higher precision.It will lead to longer life for connect rod and bearing by increase the withstand impact.Steel piston is casting with aluminum alloy for better durability and boost engine output.

4.Cylinder Head and Valve
2 valves for P series and 4 valves for Q series per cylinder, Optimize the mixed air/fuel level which lead to an excellent fuel consumption rate and emission performance.High quality alloy cast iron for the cylinder head, one cylinder with one head, easy for maintenance and service.

5.Camshaft
Single camshaft for PV series engine and installed in the middle position of engine which lead to small size and low maintenance cost.

6.Intake & Exhaust System
Advanced turbocharger and water-to -air or air-to-air after cooler technology, ensure enough intake air and decrease the temperature, provide excellent emission performance.Pulse exhaust manifold increase the efficiency when engine run at lower load condition, and lead to excellent fuel consumption rate.

7.Fuel System
High pressure injection system make the fuel injector open pressure above 280bar, which lead to an excellent fuel consumption.Check valve in fuel lines improve reliability.

8.Lubrication System
Gear oil pump will supply the lubrication oil to all bearings, and cooling the piston inner through the cooling jet.

9.Cooling System
Great flux water pump provide effective cooling.Two water pump design for Q series engine, improve the performance at high load condition, and provide excellent emission performance.

10.Electrical System
24V DC starting motor and 45A battery charging system.

Application & Gas Type:
.Biogas (Landfill Gas, Wastewater Biogas, City Sewage Biogas, Farm Biogas, etc.);
.Natural Gas, Oil Field Gas, Shale Gas;
.Coal Gas
.Distributed Energy System (CHP Plant)

Products Description

1.Specially-designed air valves, crankshaft, camshaft, pistons, ignition system and combustion chamber according to international brands gas engine technology(Googol, MAN, Guascor, Daewoo)

2.Adopting high-precision special gas engine speed governor:Precise speed governing, instant recovering ability so as to fit different loads upon the three signals:Rotating speed, load and temperature.

3.Economical and low-cost running:Lower gas and oil consumption.Overhaul term:18000~25000 hours

4.Using advanced intelligent Deep Sea 7510 genset controller:Capable computer chip, with full monitoring, control, alarm and protecting function, all-in-one configuration for all kinds of demands.

5.Electrical system:24V cranking motor starting and battery charging system.Parallel operation with genset or city power grid for option.
Prod Model: HGGM200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Standard: ISO9001, GB/T2820-97, ISO8528
Alternator Standard: Bs5000, VDE0530, NEMA Mg1-32, IEC34, IEC60034, As1
Warranty Period: 1 Year or 1000 Hours Running, Which Is Coming Firs
Packaging Details: Plastic Membrane or Wooden Case
Delivery Detail: 60 Days
Color: as Needed
Guangdong Honny Power-tech Co., Ltd was founded in year 1992, and has been one of the leading power generation solutions and manufactures in China. We specialize in assembly, design, sales, installation, maintenance, and service of diesel generators, diesel engines and alternators. Honny owns strong technical team who widely design and install engineering for different standby power supplying requirement. As a starting point with providing most suitable standby power supplying solution, we perform special design and manufacturing for each project. In order to providing fast and convenient service support, with 18 years of continuous development, Honny set up 2 wholly-owned large-scale manufacturing factories, 2 R&D design centers and 38 wholly-owned sale and service offices in south China, east China, northeast China, north China, northwest China and southwest China area. The total business area is up to 250, 000 square meters, nearly 1, 000 employees and annual sales of more than 500 million RMB.

Under 18 years of tireless work and painstaking efforts, Honny reelected for five consecutive years in China's best power solutions integrator from 2004 to 2008, and won the Guangdong high-tech enterprises, Guangdong Famous Brand, Guangdong Top Brand, Dongguan Top 50 private enterprises in 2006-2008 for 3 consecutive years, Dongguan enterprise of observing contract and valuing credit in 2006-2008 for 3 consecutive years, Dongguan patent nurturing enterprise, Dongguan private technology enterprises, the founder Wen Guosheng won the Dongguan inaugural honor outstanding private entrepreneurs.

To promote the health of long-term development of enterprises, Honny launched the "talent, brand, culture", three major development strategies in 2007. With the "Good attitude, promote development" concept, Honny is committed to building the greatest power solutions provider in the world.
