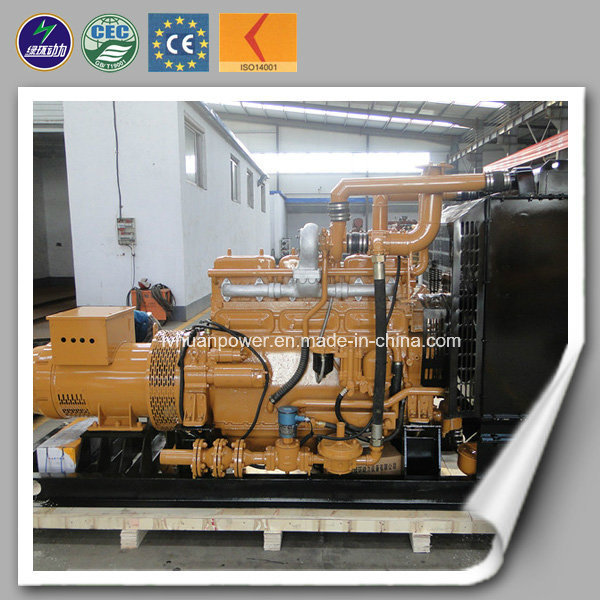

80kw natural gas generator set
Product Description
Welcome to the showroom of Shandong Lvhuan Power Equipment Co., Ltd!
We are professional and dedicated system supplier of energy production by diesel and gas powered generator set for almost 20 years, we are basically a manufacturer of generator set for various kinds of fuel such as diesel, natural gas, biogas, biomass gas, coal gas, coal bed gas(CBM), associated gas and syngas.
Worksite requirements
The worksite needs to meet following basic requirements:
A) Ambient temperature between -40º C~40º C;
B) Relative humidity less than 95%(35º C);
C) Site elevation not higher than 2500m;
D) For outdoor installation, simple rain shelter is required.
Gas requirements
1m from genset's pressure regulating valve of inlet
1. Pressure of natural gas: 80~300kPa
2. CH4 content of natural gas≥ 70%
3. H2S≤ 20mg/Nm3
4. Impurities particle size≤ 5μ M, impurity content≤ 30mg/Nm3
Purification of natural gas has a significant impact on machine life and continuous running time!
Service committee
1. Pre-sale service:
1) We will send our engineer to prospect the site of power station free of charge.
2) According to the situation of site, we will provide design drawings, such as power plant floor drawing, cooling system drawing, genset foundation, control room design, etc.
2. Sale service:
1) Operator training would be conducted by Lvhuan technicians during the process of commissioning or Factory training course in China,
2) Installation and commission of the genset would be instructed assisted by Lvhuan technicians at site.
3. After-sale service:
1) We have strong after-sale team, we will response within 24 hours and provide technical supports by phone or site guiding, help our clients to gain the biggeset profit.
2) For the quality problem, we will service for you free of charge during the guarantee period.
3) We provide one year guarantee period and lifetime service.
Plentiful spare part supply
1. We have spart parts department, plentiful spare part supply for all genset model will guarantee genset lifetime running.
2. All parts were from original factories or professional factories, complete in specification, keep good quality.
| Parameter of Natural Gas Generator Set |
| Model Number (Engine Type) | LHNG80 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 64KW/80KW |
| Rated Speed | 1500/1800RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤9.8mj/kw.h |
| Lubricant consumption | ≤1.0g/kw.h |
| Engine Capacity | 12.90 L |
| Cylinder Number | 6 |
| Cylinder Bore | 135mm |
| Stroke | 150mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Chinese Stamford |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 2850x1100x1700mm |
| Weight | 1800kg |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
