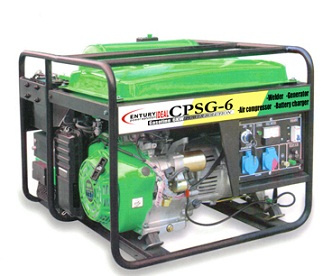

Multi-Fuction Power Station Mode CPSG-6 CPSG-7 CPSG-8
GENERATOR
Frequency 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
Ratded AC output 5.0KW 6.0KW 6.5KW 7.0KW 7.5KW 8.0KW
Max. AC output 6.0KW 7.0KW 7.2KW 8.0KW 8.2KW 9.0KW
Phase Sigle phase
Rated AC voltage(V) 220\230\240(50Hz) 110/220\120/240(60Hz)
No-load Vp: Tage (DC) 50V
ENGINE
Model CG390 CG420 CG420
Engine Type 4-strote OHV25 singe-cylinder with air-cooied
Starting system Recoil or Recoil/Electric
Fuel tank capacity(L) 6.5 6.8 6.8
Air Compressor
Motor(kw) 1.5kw 1.875kw 2.2kw
Cylinder(mm× No) 47× 1 47× 1 42× 2
Storage volume(L) 16 16 16
Air Delivery(m3/min) 0.12m3/min 0.15m3/min 0.2m3/min
MAX pressure(MPa) 0.7
Welder
Cont Current(AC) 130A/180A
Cont Rated Voltage(AC) 36V/48V
Battery Charger
Charging Current 10A/15A
Charging Voltage(DC) 12V/24V
N. W/G. W 143KG/136KG 154KG/145KG 154KG/145KG
Dimension(mm) 660X790X530 660X810X540 660X820X540.
We manufacture and supply high quality generator sets for a wide range of domestic and commercial applications. These generators are powered by water cooled engines, high in performance and very reliable for requirements at critical times such as in hospitals and emergency rooms. Our range has been a long time favourite for our clients because of their ability to provide smooth power for recreation, construction, rental and home uses.
Product: Air-cooled engines; Air-cooled portable generators; Water-cooled diesel generators; Water pumps; Mobile lighting tower; Automatic Mains Control panels and Fullunit Standard accessories; Repairs and Service.
