Product parameter:
Model Rated Output (KW) Power Factor (cosφ) Diesel Engine Specification Weight (kg) DM (LxWxH) (mm)
Model OutPut(KW) Cylinder*Bore*Stroke(mm). Fuel Consumption (g/kw.h)
HY008S 8 0.8 2100D 15 2x100x110 257 855 1730x820x1065

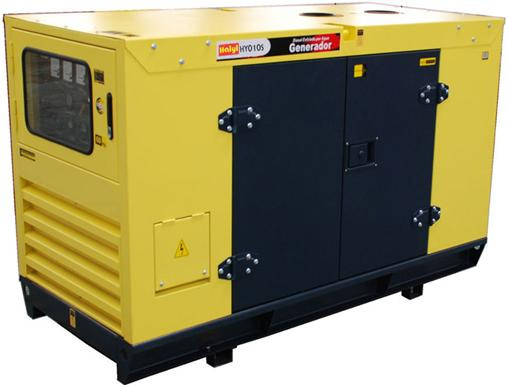

HY010S 10 0.8 2100D 15 2x100x110 257 870 1730x820x1065
HY015S 15 0.8 495D 26.5 4x95x115 258.4 950 2000x880x1165
HY020S 20 0.8 4100D 30.1 4x100x115 258.4 1040 2000x880x1165
HY024S 24 0.8 4100ZD 40 4x100x115 258.4 1080 2100x880x1195
HY030S 30 0.8 4100ZD 40 4x100x115 258.4 1080 2100x880x1195
HY040S 40 0.8 4105ZD 56 4x105x125 239 1120 2250x950x1195
HY050S 50 0.8 4105IZD 66 4x105x125 239 1130 2250x950x1195
HY075S 75 0.8 6105AZLD 110 6x105x130 231 2100 3100x1180x1500
HY100S 100 0.8 6105IZLD 132 6x105x130 231 2300 3100x1180x1500
HY120S 120 0.8 6113ZLD 155 6x113x130 231 2450 3350x1250x1650
HY160S 160 0.8 WD146TD19 220 6x138x163 217 2600 3450x1350x175
Fuzhou Haiyi Electromechanical Equipments Co., Ltd. established in 2000, is a partnership private-owned enterprise and has our own Imp. & Exp. Company (Fuzhou Pingchi Imp. & Exp. Trading Co., Ltd. ) and several shareholding factories. Our products with advanced technology and excellent performance are approved by pertinent quality certification.
On a basis of mutual benefit and development, we have done business with the clients abroad for years and would like to cooperate with the friends all over the world.
"Excellent service, enduring business".
