Gas component requirement Ambient environment conditions
Natural gas Intake temperature: 45
Low heat value: 34.252 kJ/m³ Turbo air coolant temperature: 50
CH4 (methane): Ge; 25 % Ambient air pressure: 100kPa
Gas pressure: Ge; 5kPa Intake water temperature: 32
MTU 165 series use German MTU 396 series Engine technology, by alloy ferrous crankcase, injection cooled combined piston, wet replaceable cylinder liner etc. Basic contructure, triple water cooled exhaust gas pipe and intergrated main parts, with small volume, light weight, powerful output, Economical and long running life.
Control, self-checking, safety protection combined monitoring system.
Micro-process & high efficiency firing system by automatic adjustment.
Speed Governor control automatically & accurately, Firing system control the ratio of air and gas according to gas component, improving engine emission, safety & economical grade.
MTU Original Technology Production Line
German Siemens AC synchronising alternator
Woodward controller
LED display operation monitoring system
For single running or power plant by synchronising panel
Natural Gas, coal mine gas, biogas and coke gas

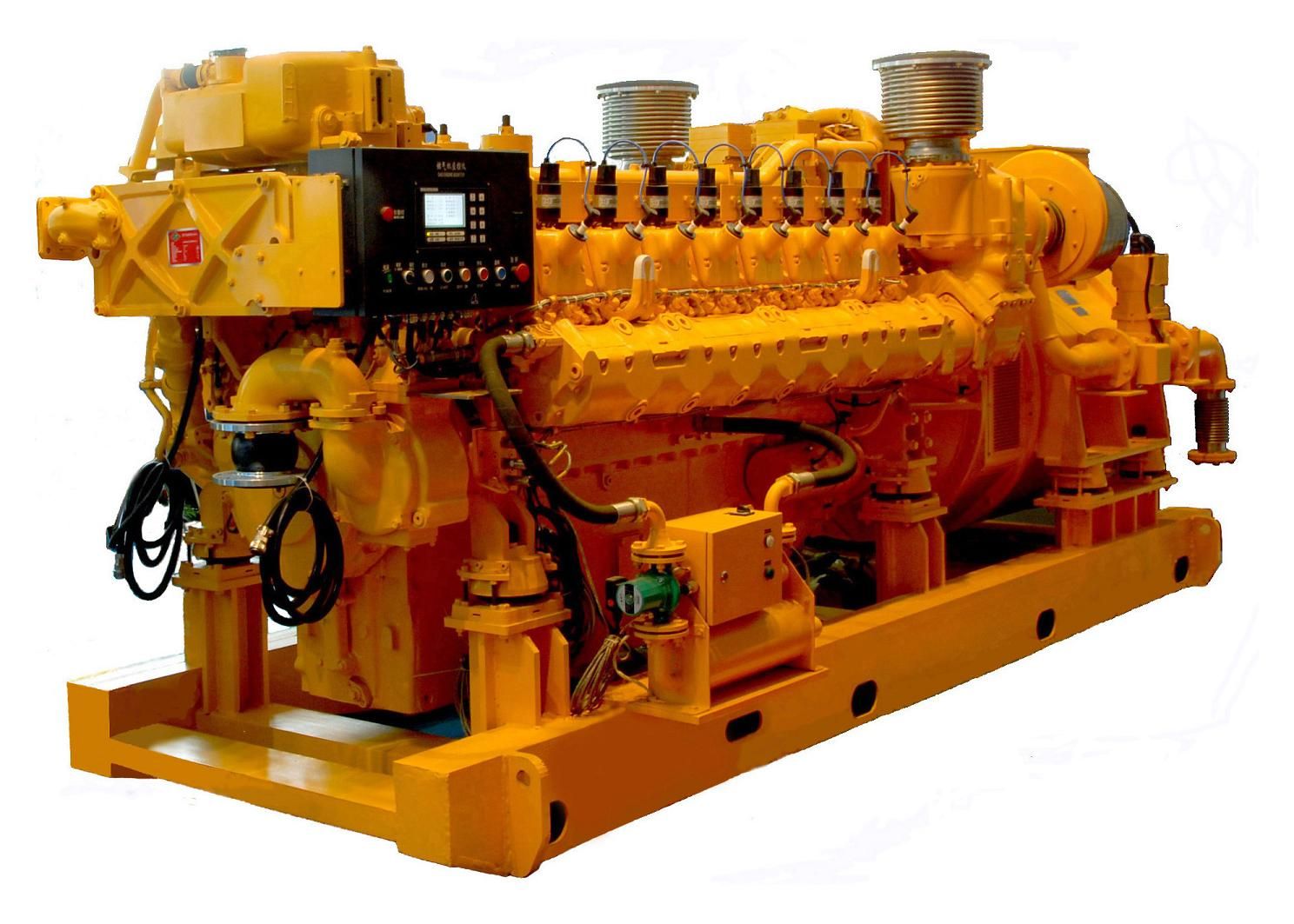

Genset model: YCM1375T
Standby power: 1500kVA/1200KW
Rated power: 1375kVA/1100KW
Speed: 1500RPM
Frequency: 50Hz
Voltage: 220/380V, 230/400V, 240/415V
Alternator: Simens bruthless, IP23, H class insulation
Bore*Stroke: 165*185mm
Dimension: 5500*1800*2100mm
Weight: 12800KGS
Shenzhen Yicheong Jichai Power Co., Limited is an establishment professionally specialized in diesel generator sets, Gas generator sets, Marine Engine and Generator Sets, which located in Guanlan town of Shenzhen city where possess beautiful scenery and convenient transportation. It covers an area more than 12000 spuare meters, registered capital above 30 million RMB. Annual turnover is beyond 200 millon.
We possess a wealth of diesel/ gas generator set manufacturing technology and experience; Fully know products technical and quality characteristec, have continual adopted foreign full set advanced technology; There are several famous brands we adopted: Jichai; Cummins; Yuchai; Deutz; MTU; Leroy Somer; Stanford; ENGGA; Deepsea; ComAP; Smartgen; Socomec; ABB; Troho; People and so on. So that each generator set not only has reliable running and wear-well quality characteristic, but also has excellent technical performance.
Our company scrupulously abides by the principle of Quality First, Honesty in Business', taking it as the aim to provide leading and applicable products, and wholehearted and quick service for our customer. Warmly welome to visit our company. We are confident that your choice is right.
