Home Generator Products Mtu Diesel Generator Set (BMX704)

Mtu Diesel Generator Set (BMX704)

Mtu Diesel Generator Set (BMX704)
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T

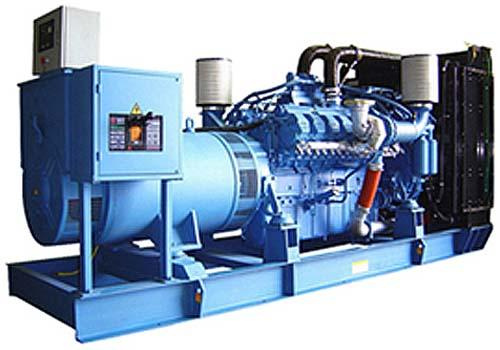

MTU Diesel Generator Set
Genset Model: BMX704
1. Diesel generator sets
Continuous Output 640KW /800KVA
Standby Output 704KW /880KVA
Rated Power Factor COSΦ =0.8(lagged)
Rated Output Voltage 415V/230V(400-10000v can be reached)
Rated Current(Continuous/Standby) 1443A/1544A
Rated Speed 1500rpm
Rated Frequency 50Hz
Starting Control Method Auto Start/Handle Start
Dimension(mm) 3930*1580*1910
Genset Weight(KG) 4985kg
Steady State Voltage Adjustment(%) ≤ +/-1
Voltage Fluctuation(%) ≤ +/-0.5
Transient State Voltage Adjustment(%) +20~-15
Voltage Stable Time(s) ≤ 1
Steady State Frequency Adjustment(%) ≤ +/-1
Frequency Fluctuation(%) ≤ +/-0.5
Transient State Frequency Adjustment(%) +10~-7
Frequency Stable Time(s) ≤ 3
Fuel Consumption(100% Load)(g/kwh) 196g/kwh
Noise(LP7m) 90dB(A)

2. Engine Specification
Brand MTU
Model No. 12V2000G63
No. Of Cylinder 12
Bore*Stroke 130*150 mm
Starting Method 24V DC Voltage Bearing Starting Motor
Cooling Method Close Circuit Water Cooling
Oil-supply Method Electrical Injection
Speed-adjustment Method Electronic Governing
Aspiration Turbocharged Inter-cooled
Speed 1500rpm

3. Alternator
Brand: Marathon
Model No. MX-630-4
Rated Power/Capacity 630KW / 787.5KVA
Rated Voltage 400V/230V
Output Factor COSΦ =0.8(lagged)
Insulation Class H Class
Protection Class IP21
Wiring Methods 3 Phases and 4 Wires
Voltage Adjustment Methods DVR
Output Frequency 50Hz

4. Control System
Brand DeepSea From England
Model Deepsea 5110
BS POWER DIESEL GENERATOR SET
50HZ 1500rpm   400/230V
MTU        MARATHON
Genset Model KW/KVA KW/KVA ENGINE MODEL Cyl.(L) Displacement   (L)     Alternator Model (Marathon) Fuel cons.100% (g/kw.h) Net weight (kg) Dimensions (L x W x H)  MM
Prime power standby power Open Type
BMX270 240/300 270/338 6R1600G70F 6R 10.5 MP-240-4 201 2500 2800×1150×1650
BMX350 320/400 350/438 8V1600G70F 8V 14 MP-320-4 191 3450 2980×1350×1760
BMX400 360/450 400/500 10V1600G40F 10V 17.5 MP-350-4 191 3880 3220×1350×1850
BMX440 400/500 440/550 10V1600G50F 10V 17.5 MP-400-4 190 4000 3320×1350×1850
BMX520 480/600 520/650 12V1600G40F 12V 21 MP-480-4 195 4350 3500×1350×1850
BMX570 520/650 570/713 12V2000G25 12V 23.88 MX-560-4 203 6800 4200×1650×2280
BMX704 640/800 704/880 12V2000G65 12V 23.88 MX-630-4 202 6800 4200×1650×2280
BMX800 720/900 800/1000 16V2000G25 16V 31.84 MX-750-4 198 7700 4500×2000×2300
BMX880 800/1000 880/1100 16V2000G65 16V 31.84 MX-850-4 198 7800 4500×2000×2300
BMX1000 900/1125 1000/1250 18V2000G65 18V 35.82 MX-1030-4 202 8800 4750×2000×2380
BMX1100 1000/1250 1100/1375 12V4000G21R 12V 48.7 MX-1030-4 198 11000 6150×2150×2400
BMX1250 1120/1400 1250/1563 12V4000G23R 12V 48.7 MX-1240-4  198 12000 6150×2150×2400
BMX1450 1300/1625 1450/1813 12V4000G23 12V 57.24 MX-1350-4 189 13500 6150×2150×2400
BMX1600 1450/1812 1600/2000 12V4000G63 12V 57.24 MX-1540-4 193 14000 6150×2150×2400
BMX1760 1600/2000 1760/2200 16V4000G23 16V 76.32 MX-1600-4 193 17000 6500×2600×2500
BMX2000 1800/2250 2000/2500 16V4000G63 16V 76.32 MX-1800-4 191 17000 6550×2600×2500
Prod Model: BMX704
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Continuous Output: 640kw /800kVA
Standby Output: 704kw /880kVA
Rated Voltage: 400/230V
Rated Frequency: 50/60Hz
Power Factor: 0.8(Lagging)
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Self-Starting Diesel Generator
Output Type: AC Three Phase
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.

BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.

In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.

BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.

BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
