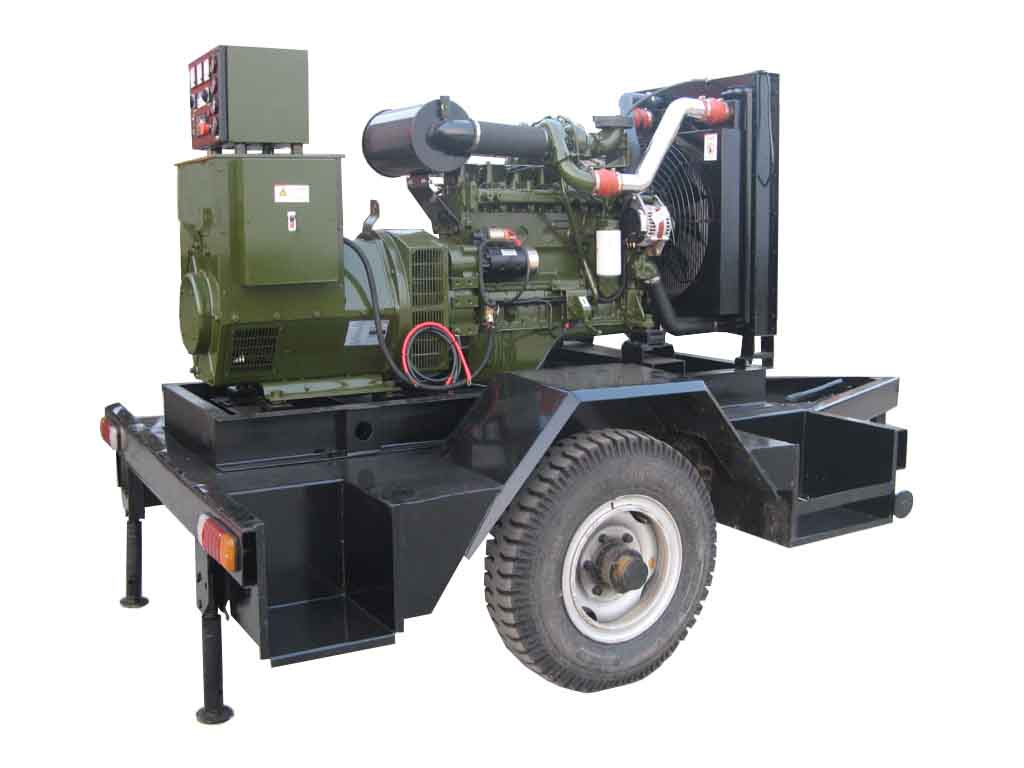

1) Moving trailer generator set for cummins, weichai, changchai, perkins, deutz, daewoo, Volvo, john deere series
2) Moving trailer standard accessaries:
A) Steel weatherproof canopy
B) Built-in fuel tank for 8 hours running
C) Built-in control panel
D) Built-in start battery
E) Air louver for intake and exhaust
F) Muffler
G) Driving wheel (2 or 4)
H) Traffic indicating light
I) Drag and brake device
J) Weatherproof type trailer
K) Soundproof type trailer
L) Container soundproof type trailer
Generation Set |
Model |
KC20GFW |
KC30GFW |
KC45GFW |
KC75GFW |
KC90GFW |
KC100GFW |
KC145GFW |
KC200GFW |
|
Prime Power Rating Kw |
20 |
30 |
45 |
75 |
90 |
100 |
140 |
200 |
|
Standby Rating Kw |
22 |
33 |
50 |
80 |
100 |
110 |
150 |
200 |
|
Prime Power Rating Current (Amps) |
36 |
54 |
81 |
135 |
162 |
180 |
261 |
360 |
|
Maker |
NEW DIESEL MACHINERY CO.,LTD |
|
Dimension (L*W*H) |
1689*710*1150 |
1830*710*1150 |
2100*800*1450 |
2500*800*1500 |
2500*800*1500 |
2600*900*1500 |
2650*900*1600 |
2650*990*1600 |
|
Specific Fuel Consumption @ standby rating (Liter/hr) |
7.5 |
10.3 |
14.1 |
25 |
30 |
34 |
45 |
58 |
Engine |
Maker |
DCEC (Dongfeng Cummins Engine Company, Ltd.) |
|
Model |
4B3.9-G2 |
4BT3.9-G2 |
4BTA3.9-G2 |
6BT5.9-G2 |
6BTA5.9-G2 |
6BTAA5.9-G2 |
6CTA8.3-G2 |
6LTAA8.9-G2 |
|
Standby/Prime power (kw) |
27/24 |
40/36 |
55/50 |
100/90 |
120/110 |
130/120 |
180/163 |
240/220 |
|
Cooling |
Water-Cooled |
|
Aspiration |
Natural |
Turbocharged and Aftercooled |
|
Aftercooling |
None |
None |
JW |
None |
JW |
CAC |
JW |
CAC |
|
No. of Cylinder |
4 |
4 |
4 |
6 |
6 |
6 |
6 |
6 |
|
RPM |
1500 |
|
Bore (mm) |
102 |
102 |
102 |
102 |
102 |
102 |
114 |
114 |
|
Stroke (mm) |
120 |
120 |
120 |
120 |
120 |
120 |
135 |
145 |
|
Displacement (Liter) |
3.9 |
3.9 |
3.9 |
5.9 |
5.9 |
5.9 |
8.3 |
8.9 |
|
Fuel |
0# |
|
Governor |
GAC electronic |
|
Starting System |
24V Electrical |
|
Lub Oil Specification |
15W40-CF |
|
Lub Oil Capacity (Liter) |
10.9 |
10.9 |
10.9 |
16.4 |
16.4 |
16.4 |
23.8 |
27.6 |
|
Coolant Capacity (Liter) |
8 |
8 |
8 |
9.9 |
9.9 |
9.9 |
12.3 |
11.1 |
|
Exhaust Pipe Size (mm) |
67 |
67 |
67 |
67 |
67 |
67 |
89 |
89 |
Alternator |
Maker (Brand) |
Newage (Stamford) |
|
Frame Size |
BCI184F |
BCI184J |
UCI224E |
UCI274C |
UCI274D |
UCI274E |
UCI274G |
UCDI274K |
|
Voltage |
380-415 V |
|
RPM/Frequency |
1500/50hz |
|
No. of Phase |
3 phase |
|
Power Factor |
0.8 (lag) |
|
Automatic Voltage Regulator |
SX460 (+/- 1.5%) |
AS440 (+/- 1.5%) |
|
Class of Insulation |
H |
Control Panel |
Make |
KCME (Xiangfan Kangchen Machine & Electricity Engineering Corp, Ltd.) |
|
Controller Brand/Type |
KC800 |
|
Breaker Rating (Amps) |
50 |
60 |
100A |
180 |
200 |
225 |
315 |
400A |
Fuel Tank |
Recom. capacity for running (hrs) |
8 |
Battery |
Rating (AH)--24V |
120AH |
165AH |
200AH |
New Diesel Machinery Co., Ltd. Has more than ten years experience in complete engine, power generator set, engine pump sets and spare parts.
We are the OEM factory of China Cummins(such as B series engines, C series engines, L series engines, and N series, K series, ISBe, ISDe, ISCe, ISLe etc. ); DEUTZ/KHD(912 series, 913 series, 413/513 series, TBD series, and 1013 series, 1015series, D302 series and so on ), ISUZU(4JB1, 4JA1 etc ), PERKINS(1003, 1004 series), CATERPILLAR(3306 series ), SOFIM and so on. With years experience, we also can supply power unit for the engine, design according to customer's special needs.
Meanwhile we manufacture power generator set (marine generator set /industrial generator set ) &engine pump set for all the customer over the world.
Our Goal: Customer-oriented service and quality products.
Our Tenet: Honest, Professional, and innovation-seeking.
